OPTIONAL CONNECTIONS
15

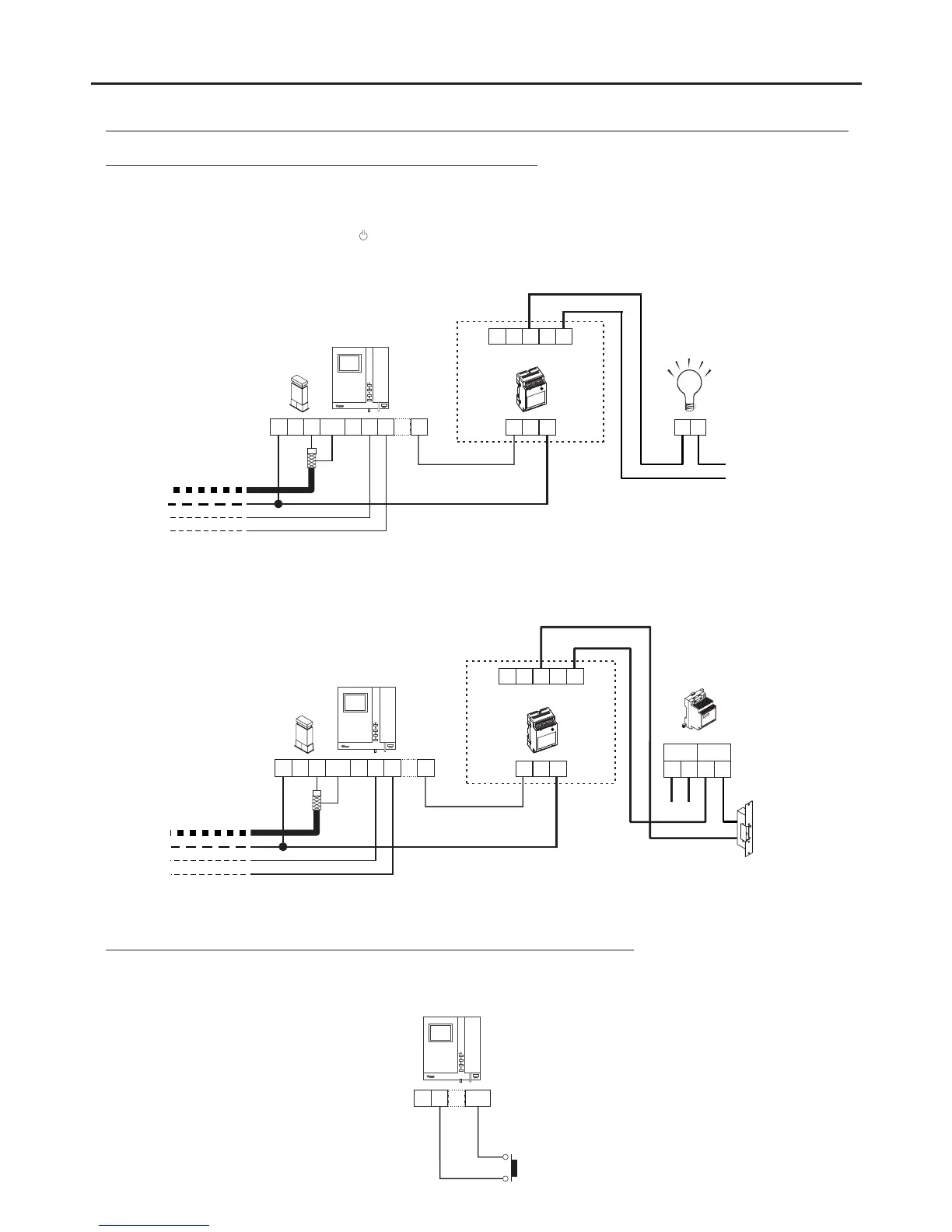

Auxiliary device activation with Tekna Plus SE monitors:
Continued overleaf
TEKNA PLUS SE MONITOR
To activate a second door release, a TF-104 transformer is required.
Auxiliary device activation requires the use of an SAR-12/24 relay unit. If the feature is shared by all monitors,
connect their A1 terminals; if, however, each monitor has its own feature, use an SAR-12/24 relay for each one
and do not connect theirA1 terminals.
This function is activated when button is pressed on the monitor at any time and regardless of the position of the
handset.
The most common applications are activating the stairway lights and opening a second door.
A
_
+
D
Mesh
V
in
V
out
CN4
220 V /ac
1.8A max.
SAR-12/24
F
N
IN IN
NC NA C
( )
*
The neutral of the lighting power supply is arranged serially through the contacts of the SAR-12/24 relay and the
maximum consumption of the element to be connected does not exceed 1.8A.
( )
*
To the distributor/
door panel.
To the stairway light
activation push button
~~ ~~
Vac
lock release
T 104F-
Mains
PRI
SEC
SAR-12/24
IN IN
NC NA C
A1
A
_
+
D
Mesh
V
in
V
out
CN4
To the distributor/
door panel.
A1
Tekna Plus SE
Tekna Plus SE
Important: Place the varistor supplied with the sound module directly onto the terminals
of the lock release.
*
*
Exterior push button input for activating the door panel door release:
_
+
AP+
Tekna Plus SE
AP
This enables the door panel door release to be activated during a call or communication with the door panel.
With the monitor in standby, it makes a panic call to the configured to receive this type of call.porter's exchanges
