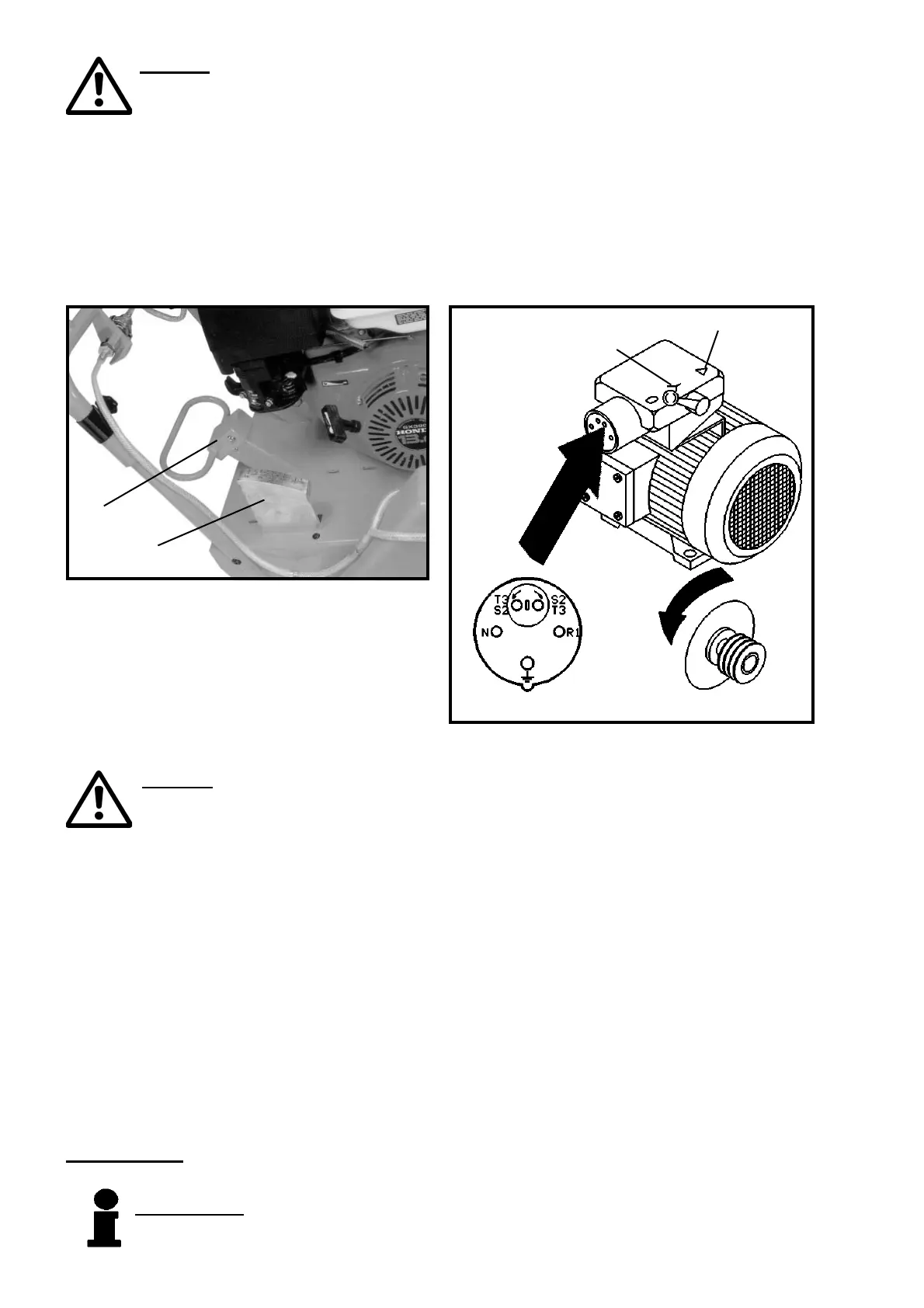

Completely rise the fl oor saw (blade may have no ground contact). Start the engine as described in the engi-
nes manual. Connect the water supply and slowly lower the fl oor saw with the foot pedal (1) till the blade has
ground contact. Push the depth control to the correct 0-position and slowly lower the fl oor saw to the required
cutting depth. Operating with too high feed the fl oor saw might rise out of cut. After cutting completely rise the
fl oor saw and cut off the engine as described in the engines manual.
Danger: Operating with too high feed the fl oor saw might rise out of cut! In
emergency situations cut off the engine as described in the engines manu-
al!
Phase inverter rotation
„Star“ position
„Triangle“ position
Cutting operation FS 130 E
Check the electrical condition - input voltage 380 V/50 Hz. The used power supply must comply with the regu-
lations of power distribution on building sites. Completely uncoil extension cables. The main switch must be on
„0“-position. Insert the mains plug. Completely rise the fl oor saw (blade may have no ground contact). Move
the main switch in triangle position and after some seconds in star position. Notice correct rotation of the
electric motor. Wrong rotation - pull mains plug and turn the phase inverter with a screw driver. Repeat
starting and move the starting switch in triangle position after the electric motor has maximum speed. Connect
the water supply and slowly lower the fl oor saw with the foot pedal (1) till the blade has ground contact. Push
the depth control to the correct 0-position and slowly lower the fl oor saw to the required cutting depth. Operating
with too high feed the fl oor saw might rise out of cut. After cutting completely rise the fl oor saw and cut off the
engine . Shut down the electric motor by moving main switch „0“-position.
1
2
1. Foot pedal - rising and low er ing-
2. Depth control
Danger: Operating with too high feed the fl oor saw might rise out of cut! In
emergency situations cut off the engine as described in the engines manu-
al!
6. Maintenance
Information: Unconditional observe the owner’s manual of the engine manuf-
acturer, which is added!
