FS 130 /FS170

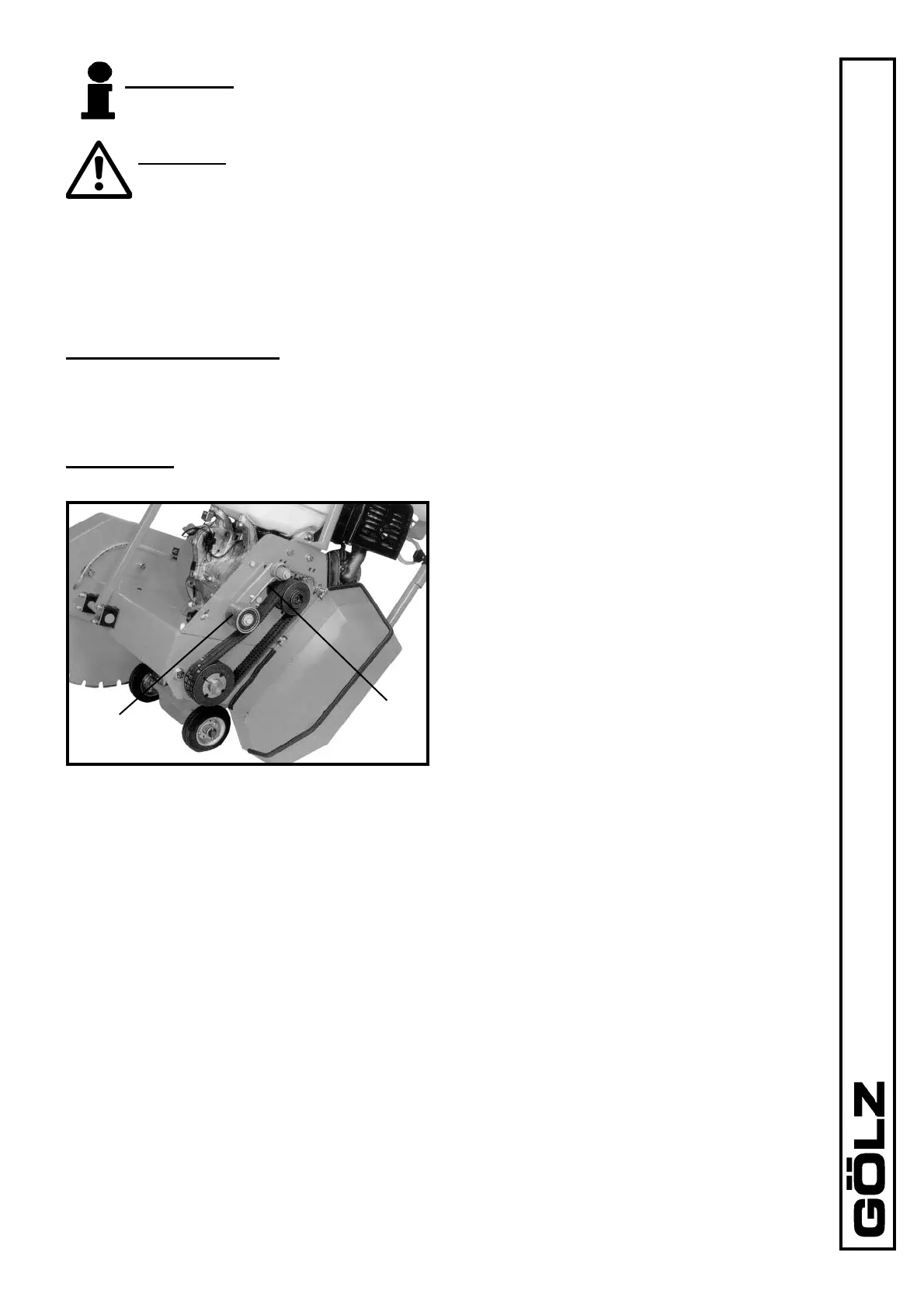

Dismount the leg spring (1) to exchange V-belts.
Move the V-belt tensioner (2) upwards and replace
the V-belts. Mount again the leg spring and close V-
belt guard.
2
1
Attention: When handling oil, grease and other chemical sub stanc es, observe
the product-related safe ty regulations!
For maintenance jobs the fl oor saw has to be shut down.
For maintenance jobs which must be done while the fl oor saw is running, the blade has to be dismounted
before beginning the job.
Information: Clean the fl oor saw after eve ry op er a tion. Ob serve local environ-
mental regulations!
6.2 Lubricating chart
Grease the blade shaft bearings after 20 working hours with heat resistance fat. From time to time clean the
foot pedal, pointer unit and wheels and grease them with some drops of oil.
6.3 V-belts
