Gomaco Commander III - G+ Control Switches

Commander III
2-16
002-3471

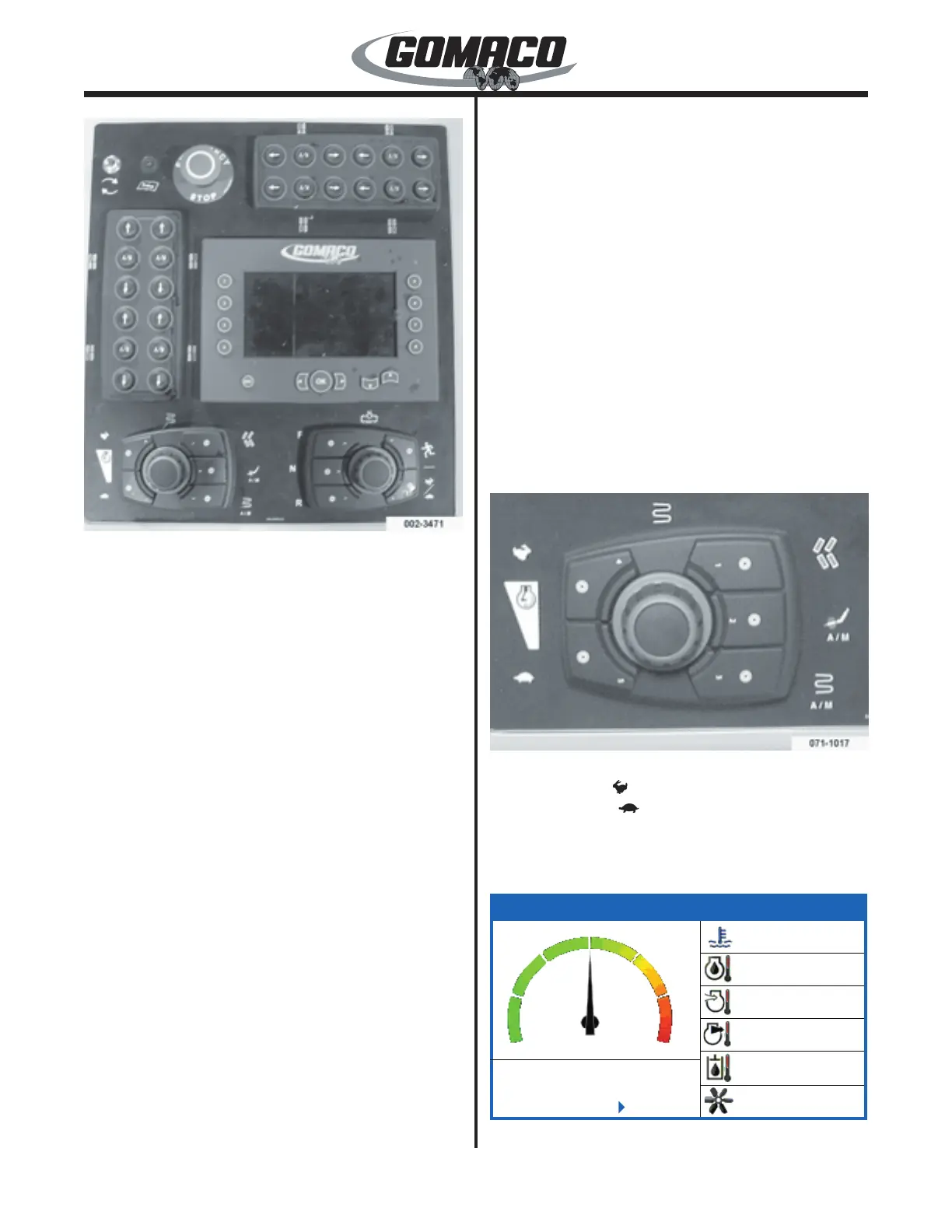

Elevation control switches: A vertical panel contains
the elevation control switches (↑, A/M, ↓) for each
leg. Press the auto/manual (A/M) switch to set the
corresponding elevation loop for manual or automatic
operation. Auto (A) or manual (M) status for each
elevation leg is indicated next to control loop deviation
indicators on the Run menu (see Main Menu: Run
Menu for more information).
Press a jog switch (↑↓) to change the elevation of each
leg when the control loop is in manual or automatic
mode. Jog switches will override sensor signals when
the control loop is in automatic mode. Jog switches
are functional with the main control module in run or
standby modes.
Note: A delay in the function of the jog switches
while in automatic mode could occur when bump
lters are turned on.
The switches are equipped with amber or green
backlighting. The A/M switches will indicate an amber
light in manual mode and a green light in automatic
mode. The jog switches will indicate a green light
when pressed and an amber light when released.
Steer control switches: A horizontal panel contains
the steer control switches (←, A/M, →) for each
track. Press the auto/manual (A/M) switch to set the
corresponding steering loop for manual or automatic
operation. Auto (A) or manual (M) status for each
steer circuit is indicated next to control loop deviation
indicators on the Run menu (see Main Menu: Run
Menu for more information).
Press a jog switch (←,→) to change the position
of each track when the control loop is in manual or
automatic mode. Jog switches will override sensor
signals when the control loop is in automatic mode
with bump lters turned off. Jog switches are
functional with the main control module in run or
standby modes.
The switches are equipped with amber or green
backlighting. The A/M switches will indicate an amber
light in manual mode and a green light in automatic
mode. The jog switches will indicate a green light
when pressed and an amber light when released.
Note: The controller must be in run mode to allow
operation of the steering system in automatic or
manual modes.
071-1017
Throttle Adjust Switches: Control engine speed.
Depress the fast ( ) switch to increase engine speed.
Depress the slow ( ) switch to decrease engine
speed. Release the switch when the engine is at the
desired speed. Normal engine speed is maximum
rpm.
EngineDisplay1500
0
5
10
15
20
25
30
RPM X 100
Engine
Hours
14
=Units
53ºF
N/A
57ºF
N/A
<122ºF
54%
018G+
