Commander III
2-3
24-0102
USE DEFAULTS
CUSTOM SETUP
AUTOMATIC SCAN ON
24-0102

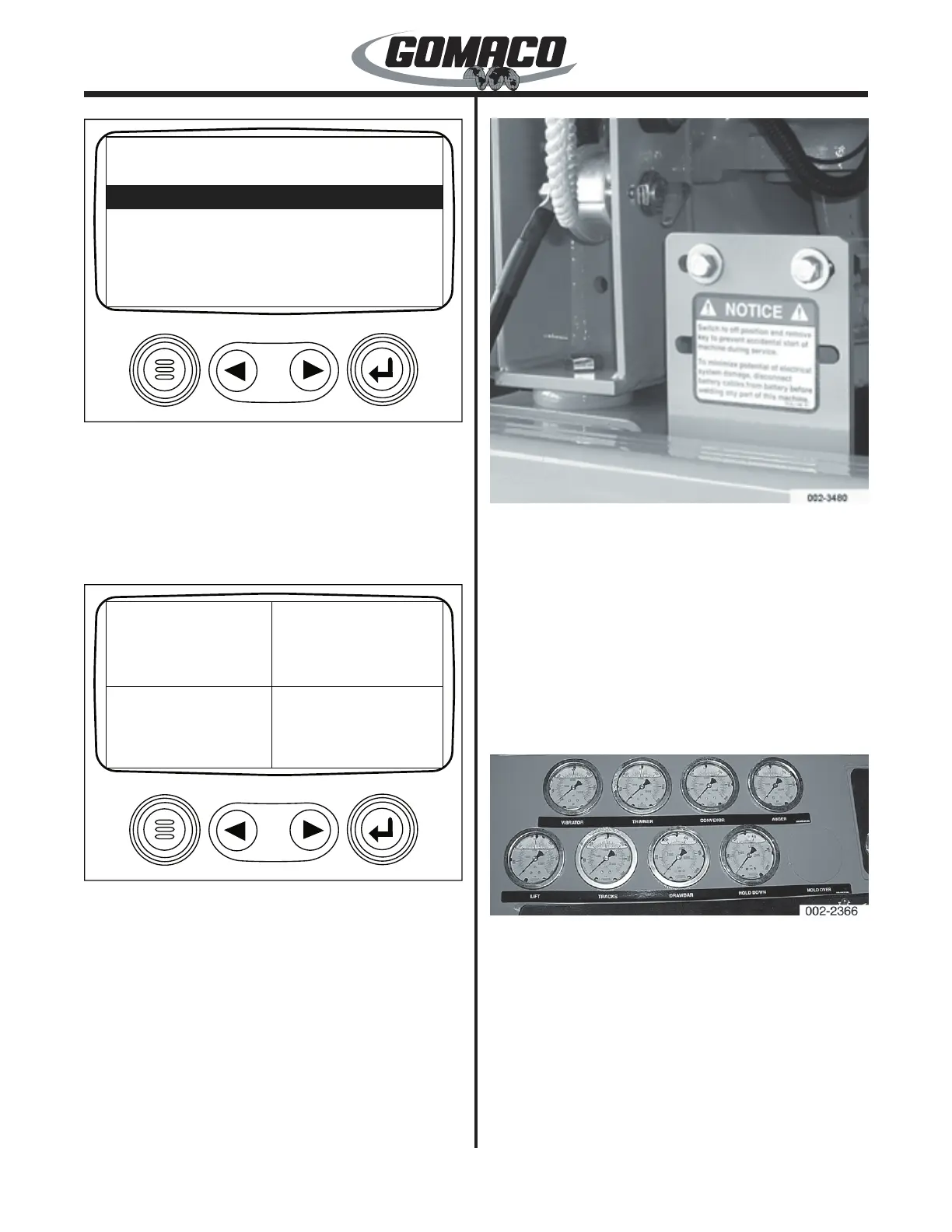

After the desired parameters are entered, select
"AUTOMATIC SCAN" and press the "Enter" button to
toggle between "off" or "on". If "on" is selected, the
display will automatically scroll through the displays
in the order selected. If "off" is selected, it will be
necessary to use the arrow buttons to scroll through
the various displays.
24-0103
125°F
COOL TEMP
24-0103
1000 RPM
ENG RPM
57 PSI
OIL PRES
14.2
BAT VOLT
If "4-UP DISPLAY" is selected, the display will show 4
parameters on one screen. Only 4 of the parameters
will be available. To change which displays will be
visible, go to "SETUP 4-UP DISPLAY" setting and
select the desired parameters to be displayed.
See the Murphy Powerview Installation and
Operations manual for additional information on the
engine diagnostic gauge.
Note: Some engine operating parameters can
be viewed on the G+ display. See the display
explanation later in this chapter.
002-3480
Master Disconnect Switch: The master disconnect
switch is used to disconnect the ground side of the
electrical system from the negative post of the battery.
With the switch in the “off” position (counterclockwise),
ground to all electrical circuits is disconnected and the
circuits will not operate. When the switch is turned to
the “on” position (clockwise), a ground is provided to
the electrical circuits, allowing them to operate. The
switch must be in the “on” position during normal
operation.
03—Hydraulic Controls and Gauges
002-2366
Vibrator Pressure Gauge: Monitors the amount
of pressure required to operate the vibrator circuit.
Amount of pressure required will depend on the
number of vibrators being operated and their speed.
Normal operating pressure range is 500 to 1500 psi
(34 to 103.4 bar). Relief pressure setting for the
vibrator system is 1850 psi (127 bar).
Trimmerhead Pressure Gauge: Monitors pressure
required to drive the trimmer wheel. Normal operating
pressure range is 500 to 2100 psi (34 to 144 bar).
Pressure will vary depending on depth of cut, width
To Next Page
