Gomaco Commander III - Remote Control Switches; Four Track Control Switches

Commander III
2-9

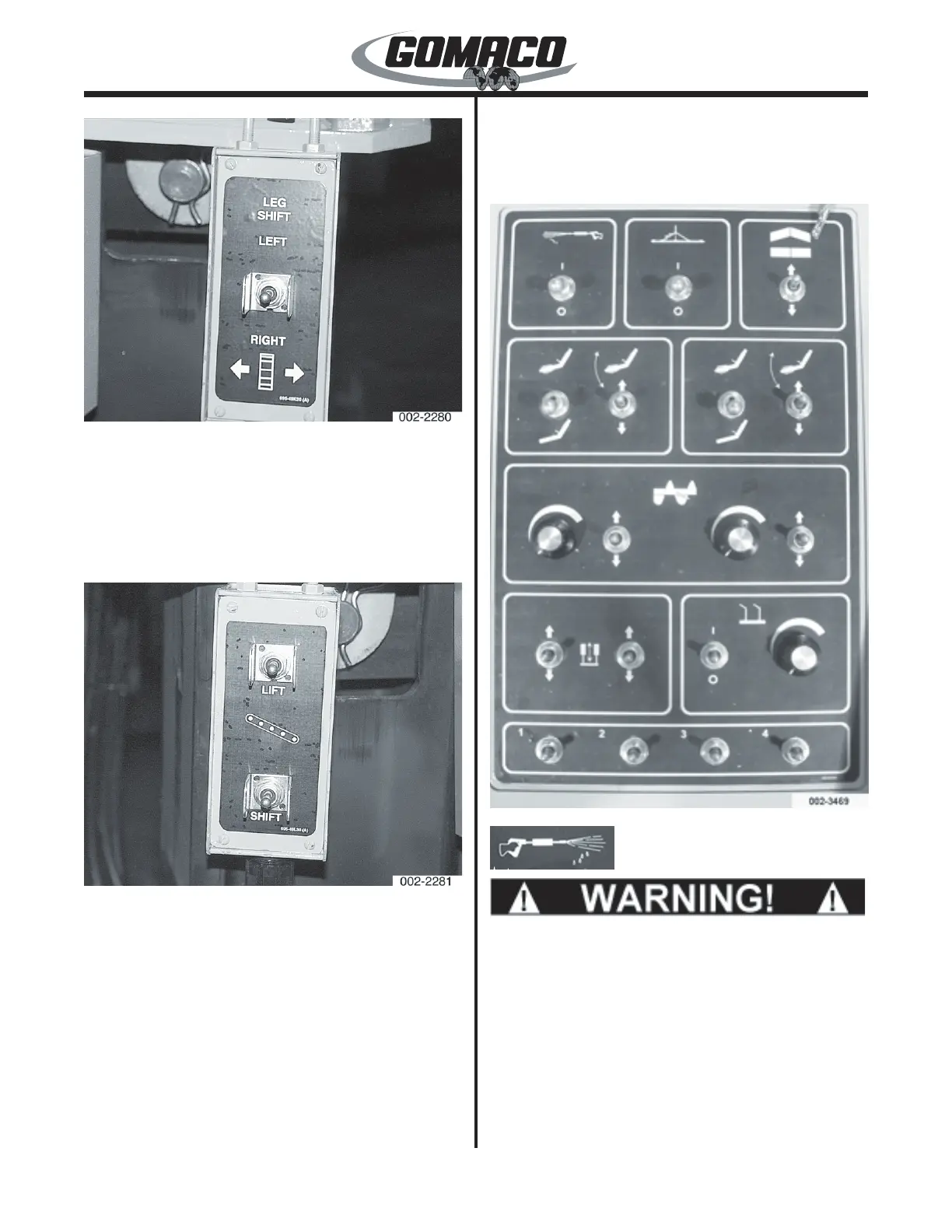

002-2280a
Remote Left Front Leg Pivot Switch: Controls the
lateral movement of the left front leg from straight
ahead to 36 inches (91 cm) to the left and 24 inches
(60 cm) to the right. Move the switch left (←) to pivot
the left front leg left and move the switch right (→) to
pivot the left front leg right. The connection is located
under the left front leg pivot assembly.
002-2281a
Remote Conveyor Lift Switch: Controls the vertical
movement of the conveyor receiving hopper. Move
the switch up (↑) to raise the receiving end of the
conveyor and down (↓) to lower. The connection is
located under the left front leg pivot assembly.
Remote Conveyor Shift Switch: Controls the
longitudinal movement of the conveyor assembly
to reach the slipform mold hopper when the mold
is shifted left of the machine frame. Conveyor shift
cylinder stroke is 36 inches (91 cm). Move the switch
up to extend the conveyor frame towards the slipform
mold and down to retract the conveyor frame.
Four track control switches: The four track
control panel module contains all switches that are
required to operate the machine in the 4-track paving
conguration.
002-3469
236
W141
Contact with moving augers, conveyor, trimmer,
or tracks can cause serious injury or death. Be
certain that the auger area is clear before starting
the engine. Do not allow the augers, conveyor, or
trimmer to operate when washing the machine.
The machine travel must be stopped during
cleaning operations.
Power Wash On/Off Switch: Used to control the on
and off operation of the high pressure power wash
system. The power wash will operate when the switch
