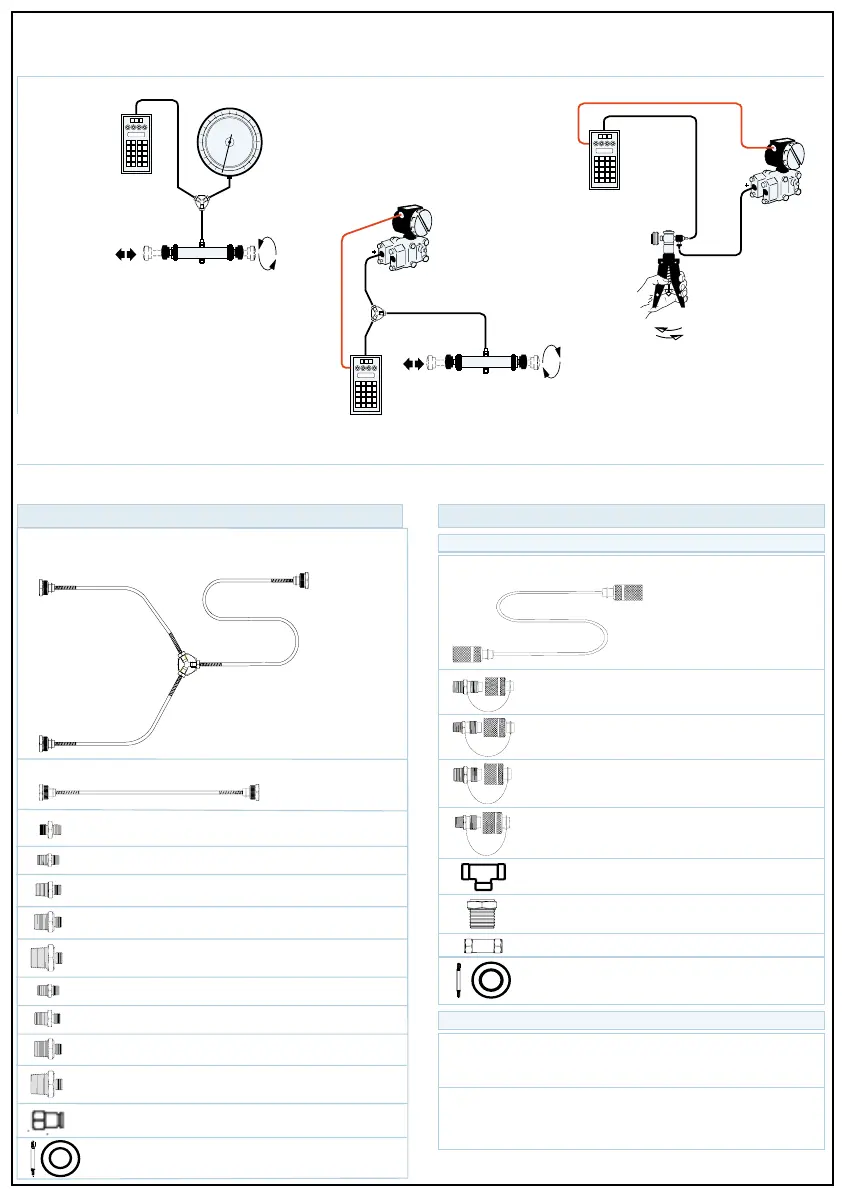

Operating diagram digital manometer Tinycal T210
Accesories
Pneumatic accesories (máx. 20 bar)
RS20012G
RS20012
RS20014
RS20016
RS20018
RS20012RG
RS20014RG
RS20016RG
RS20018RG
Connecting tubing with a lenght of 750 mm.
60º conical connection fitting 1/8" NPT M - 1/8" BSP M
Description
Connecting tubing with a length of 750 mm and two
extension of 500 mm.
Reference
R400BP-022
R400BP-011
60º conical connection fitting 1/8" BSP M at both ends
RBQSF612
U103S1620
1/8" BSP M thread USIT washer.
Stainless steel high pressure kit consist:
01-0706
01-0707
01-0708
Kit de 7 adaptadores SI, en acero inox., compuesto por:
(1) 1/4" BSP M x 1/2" NPT H
(1) 1/4" BSP male fitting
(1) 1/4" BSP female fitting
(1) 1/4" BSP M x 1/2" BSP H // (1) 1/4" BSP M x 1/8" NPT H
(1) 1/4" BSP M x 1/4" NPT H // (1) 1/4" BSP M x 3/8" NPT H
HTPA-1000
(1) 1/4" BSP M x 1/8" BSP H // (1) 1/4" BSP M x 3/8" BSP H
HK1-1000
(1) 1 meter long flexible tubing
High pressure accesories (from 600 to 1000 bars)
DescriptionReference
Up to 1000 bars accesories (stainless steel)
Up to 600 bars accesories
V600-14NPT6
V600-18NPT6
V600-14BSP6
V600-18BSP6
RS4TG
RS8RB4G
RS40012GG
U103S1620
U13702015
U20702815
1/8" BSP M x 1/8" BSP H connection fitting
1/4" NPT M high pressure fitting
1/4" BSP H Te connection fitting
Connecting tubing with a lenght of 750 mm x 6 mm
1/8" BSP M thread USIT washer
1/2" BSP M to 1/4" BSP H adapter
V6006-022
Manometer
T210
Pressure gauge
Pressure pump BP-102G
0000
Electronic
pressure
transmitter
for calibration
0000
Pressure pump BP-102G
Pressure pump
PGM
Manometer
T210
0000
Manometer
T210
4 - 20 mA
4 - 20 mA
Electronic
pressure
transmitter
for calibration
for calibration
60º conical connection fitting 1/4" NPT M - 1/8" BSP M
60º conical connection fitting 3/8" NPT M - 1/8" BSP M
60º conical connection fitting 1/2" NPT M - 1/8" BSP M
60º conical connection fitting 1/8" BSP M - 1/8" BSP M
60º conical connection fitting 1/4" BSP M - 1/8" BSP M
60º conical connection fitting 3/8" BSP M - 1/8" BSP M
60º conical connection fitting 1/2" BSP M - 1/8" BSP M
1/8" BSP H quick connection fitting to 6 mm tube.
1/8" NPT M high pressure fitting
1/4" BSP M high pressure fitting
1/8" BSP M high pressure fitting
1/4" BSP M thread USIT washer
1/2" BSP M thread USIT washer
ANNEX
