User Manual V1.4-2022-08-30 05 Installation
NOTICE

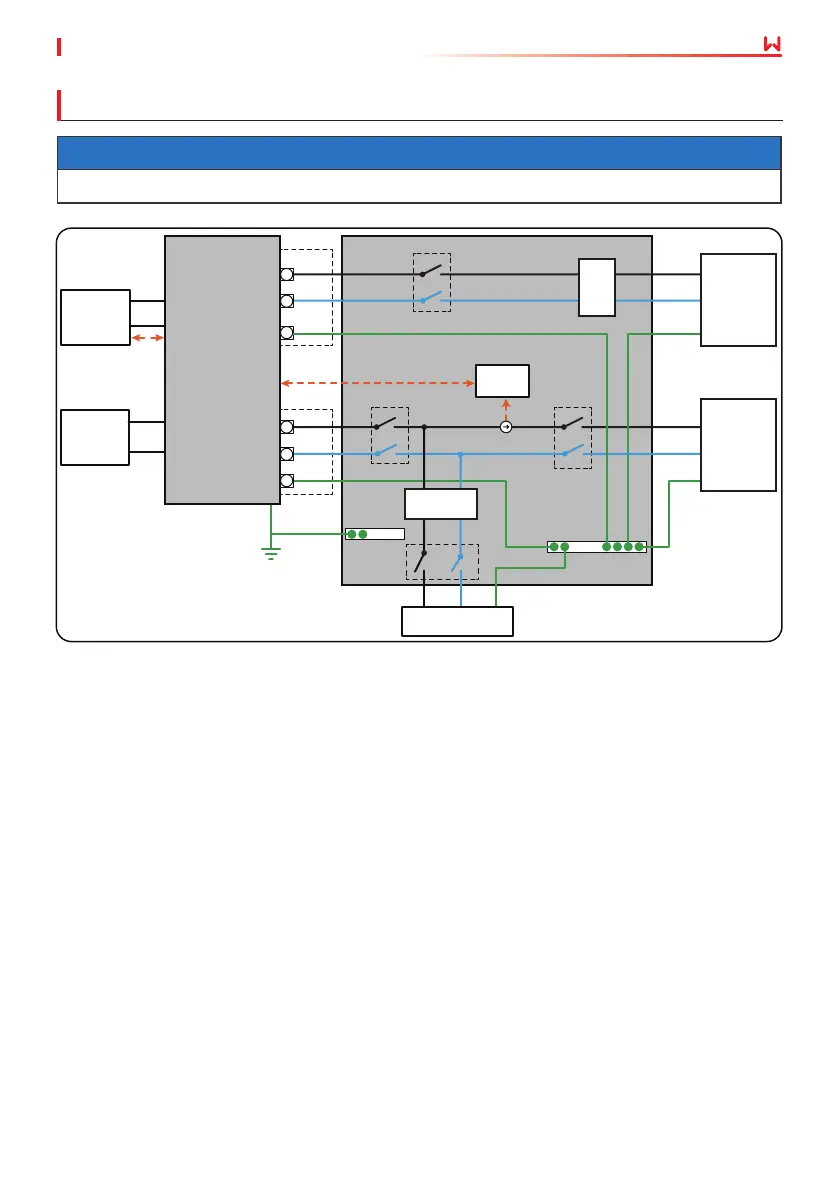

The following diagram is applicable to areas except Australia, New Zealand, South Africa.
N and PE cables are separately wired in the Main Panel.
ON-GRID
BACK-UP
BAT
PV
Meter
E-BAR
E-BAR
L
N
PE
BMS
CT
L
L
N
N
PE
PE
L
N
PE
L
N
PE
BACK-UP
Loads
Smart
meter
Utility grid
Normal loads
Battery
PV string
RCD
RCD
