06 Electrical Connection
User Manual V1.6-2024-03-20
BAT-
BAT+
COM
BMS1
Battery system

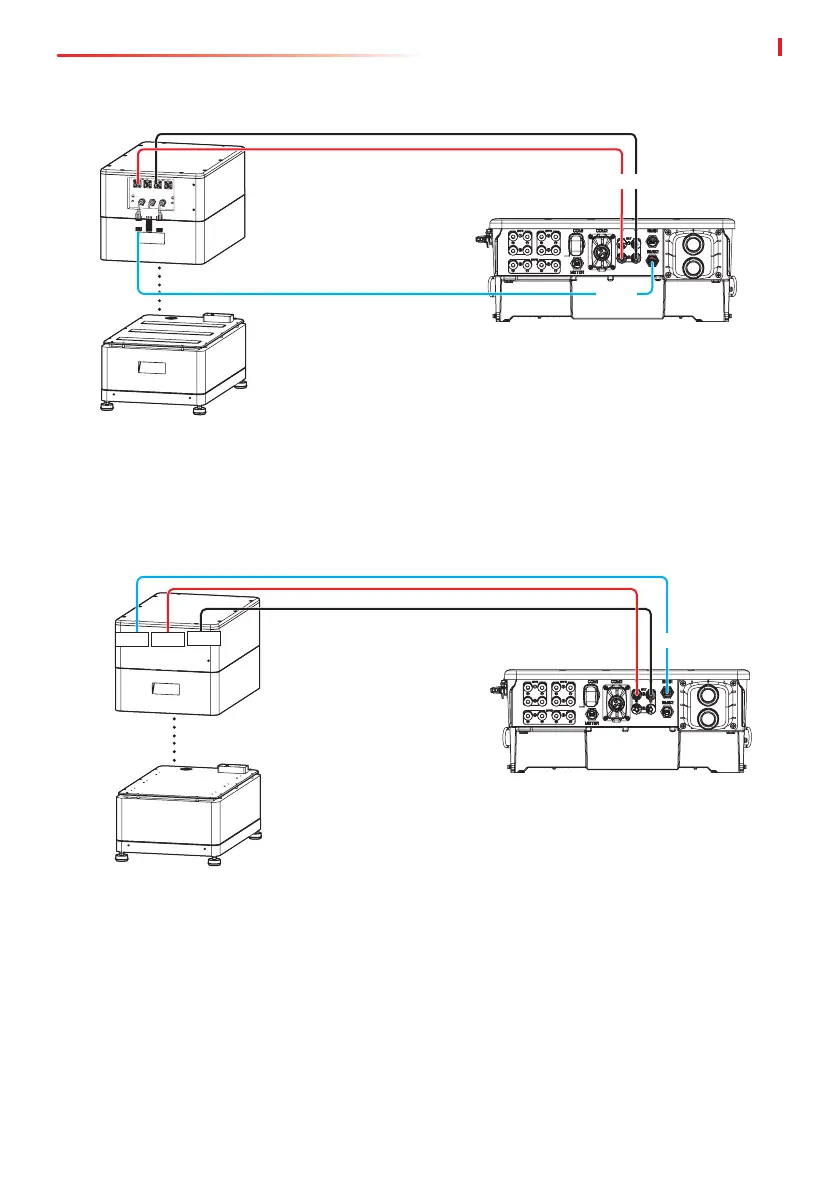

When the nominal charge and discharge current of the single battery system is higher
than 50A, the single battery system can be connected to BAT1+/- and BAT2+/- ports of the
inverter. The BMS communication cable should be connected to the BMS1 port as below.
BAT+
COM1
COM3
COM2
BAT-
BMS2
BAT2+ BAT2-
Battery system
When connecting a single battery system to BAT2+/- ports of the inverter, the BMS
communication cable should be connected to the BMS2 port as below.
