Goodwe GW15K-ET - Page 43

39
06 Electrical Connection
User Manual V1.6-2024-03-20
BAT+
COM1
COM3
COM2
BAT-
BAT+
COM1
COM3
COM2
BAT-
BMS2
BMS1
BAT1+ BAT1-
BAT2+
BAT2-
Battery system 1
Battery system 2

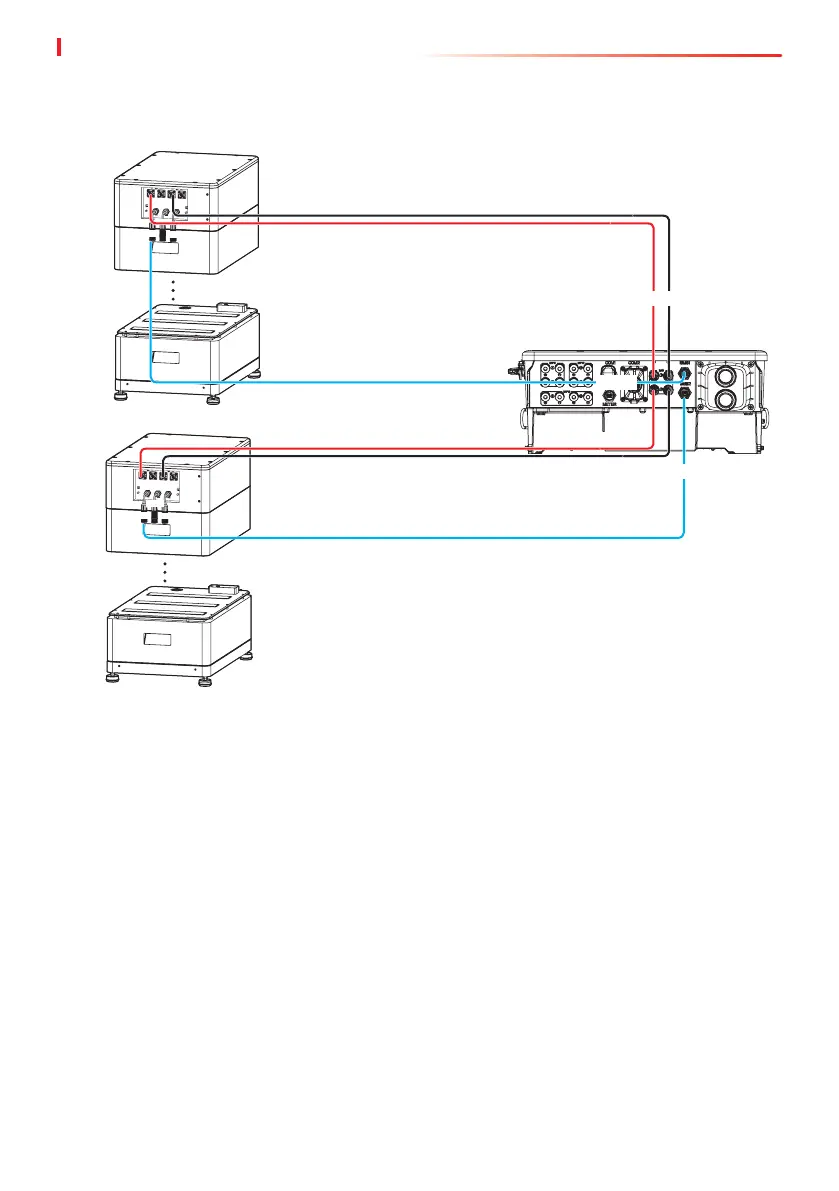

When connecting two single battery systems to BAT2+/- ports of the inverter, the BMS
communication cable should be connected to the BMS1 or BMS2 port respectively as
below.
