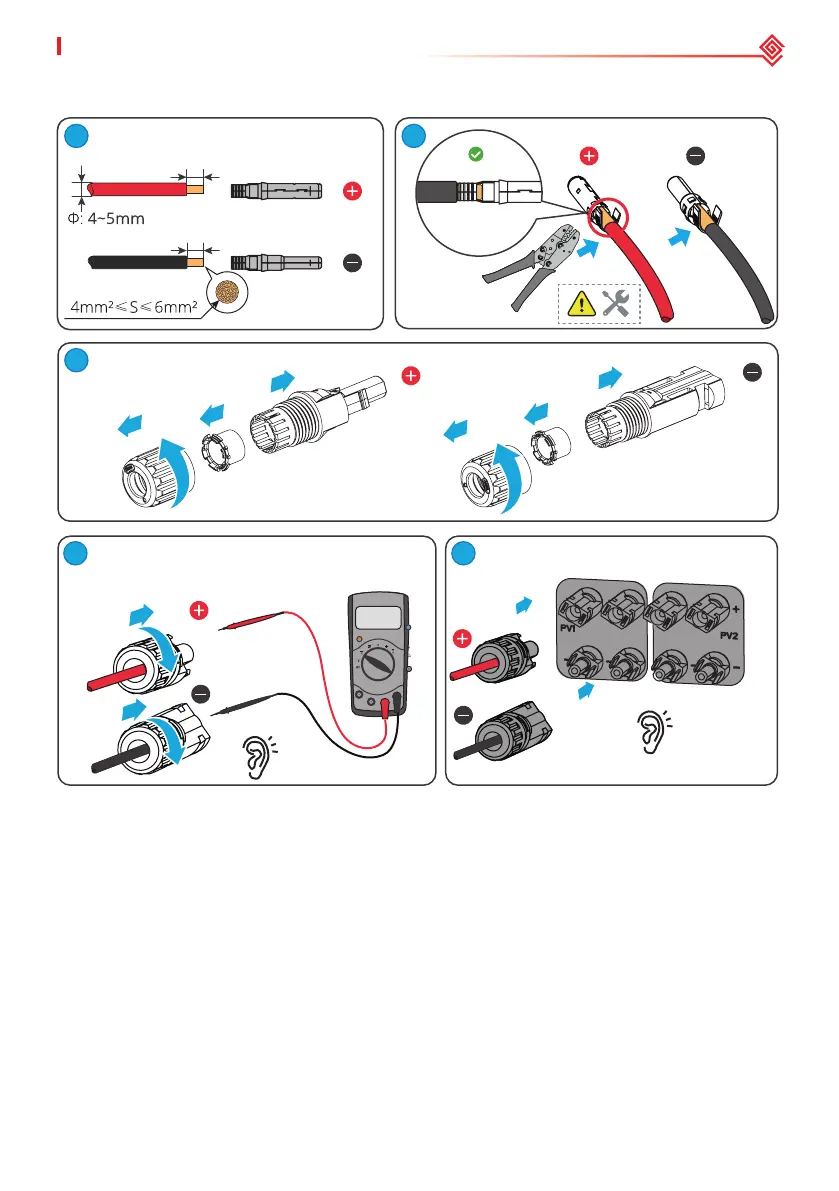

06 Electrical Connection
Use a multimeter to measure the DC voltage
and check the polarity of the connectors.
7~8mm
7~8mm
1
2
3
4
1
1
2
3
4
1
1
2
3
4
5
2
2
2
Staubli MC4 DC Connector
Click
Click
