Goodwe SMT Series - Product Introduction; Application Scenarios; Circuit Diagrams

Introduction
7
Parts | Piezas
Product Introduction | Introducción del producto02
Introduction
3
4
5
3
6
8
7
1
2
9
10 11 13 14
12

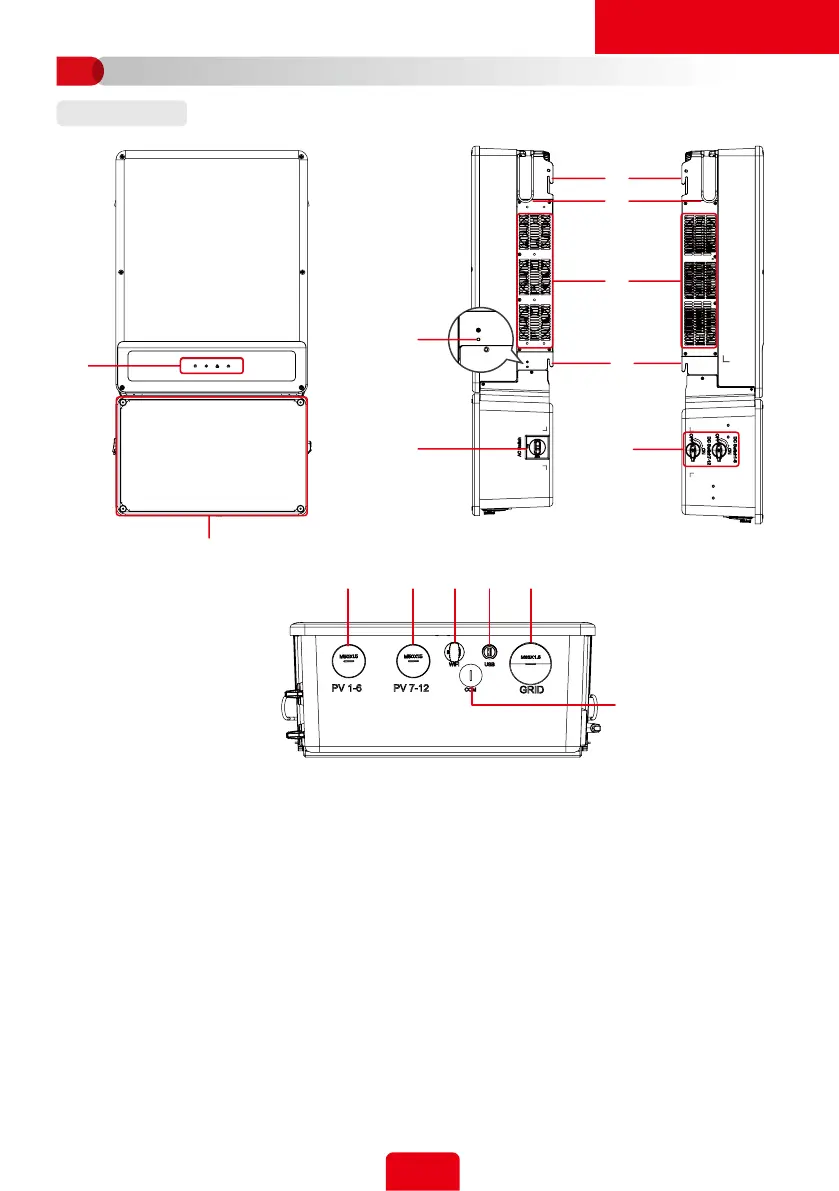

1. LED Indicator 2. Connection unit 3. Mounting Plate
4. Handles 5. Fans 6. Grounding Point
7. AC Switch 8. DC Switch 9.
DC input conduit
hole (PV1-PV6)
10.
DC input conduit
hole (PV7-PV12)
11.
Communication Module
Port (WiFi or 4G)
12.
Communication
cable hole
13. USB port 14. AC output conduit hole
