<14>
1

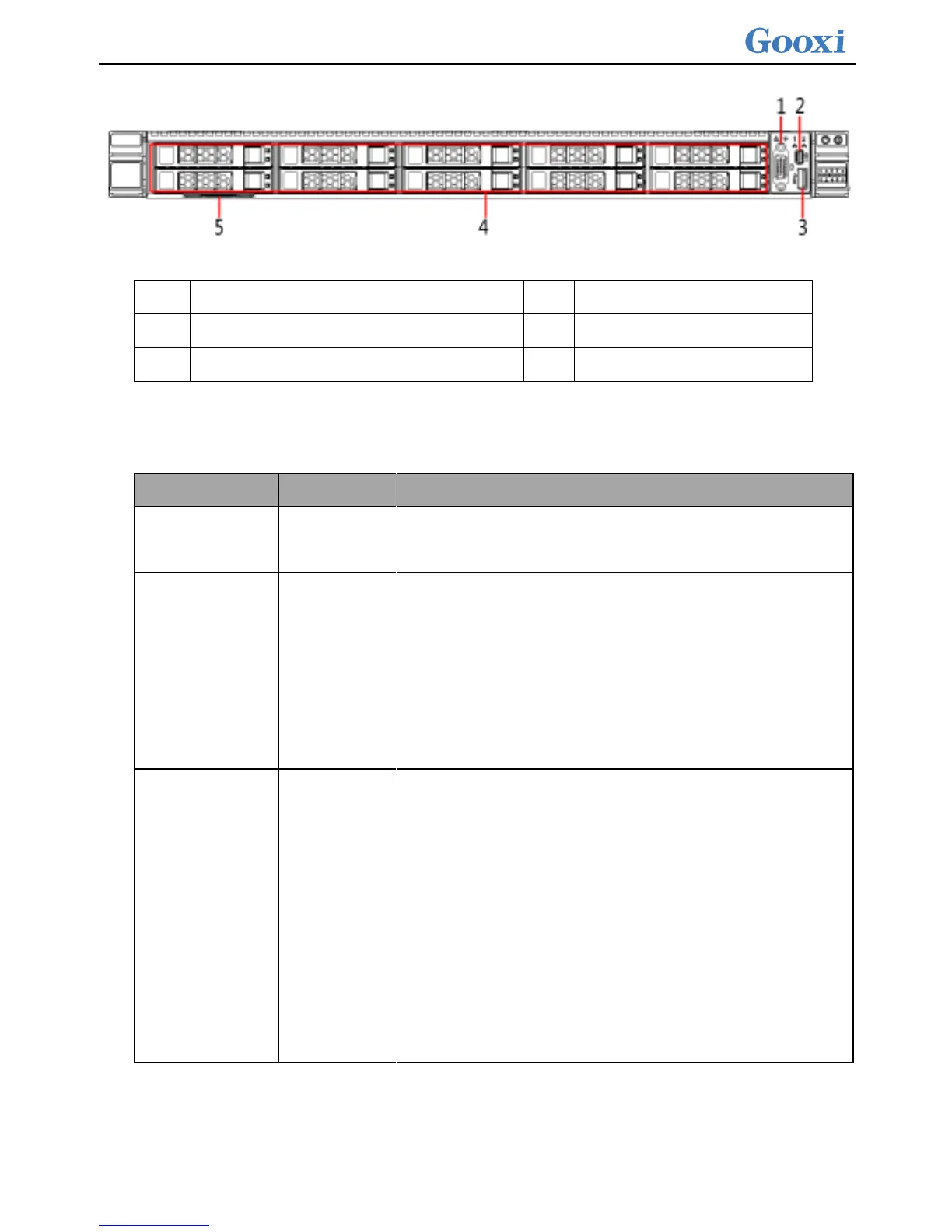

VGA interface
4
hard disk
2
LCD dedicated interface
5
Tag card
3
USB 3.0 interface
 Front panel interface description
name
Types of
Instructions
VGA interface
DB15
Used to connect display terminals such as monitors
Or KVM.
USB interface
USB 3.0
Provides an out-of-port USB interface through which USB
devices can be accessed.
note
When using an external USB device, make sure that the USB
device is in good condition. Otherwise, the server may work
abnormally.
LCD dedicated
interface
Mini USB
Used to connect an external LCD module. It is mainly used to
reflect the in-position and running status of various parts of the
server. It can also be used to set the IP address of the iBMC
management network port of the server and query the status
information and alarms of the equipment.
The LCD and the iBMC management module on the server
together form the LCD subsystem. The LCD obtains device
information directly from the iBMC management module. The
LCD subsystem does not store device data.
 Front panel lights and buttons instructions
 1U4 bay 3.5 inch disk model

Gooxi Purley Platform 1U Specifications

General

Brand	Gooxi
Model	Purley Platform 1U
Category	Server
Language	English
