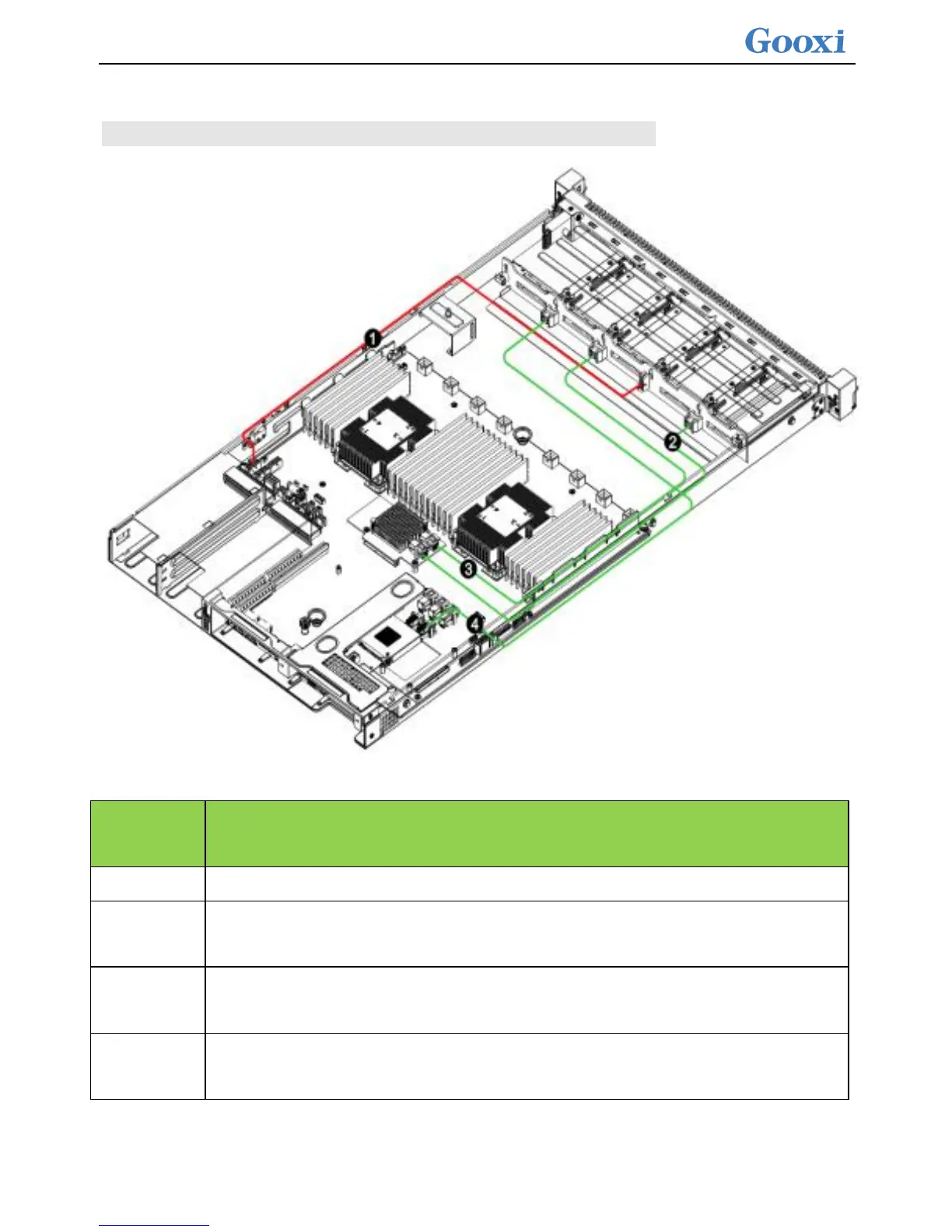

5.7 1U10 disk SAS card to backplane direct connection
Numberi
ng
Cable description
1
Motherboard to front backplane power cable
2
SAS line from the front hard disk backplane PORT 0 to SAS card
PORT 0
3
SAS line from the front hard disk backplane PORT 1 to the SAS
card PORT 1
4
SAS cable from front hard disk backplane PORT 2 to SAS card 2
PORT 0
