This function is used to clear the RAID residue information in the disk so that the disk can
be reused to configure RAID. This feature is commonly used for disks that have the
Unconfigured Bad mode.
a) Switch the disk mode Unconfigured Bad to Unconfigured Good.

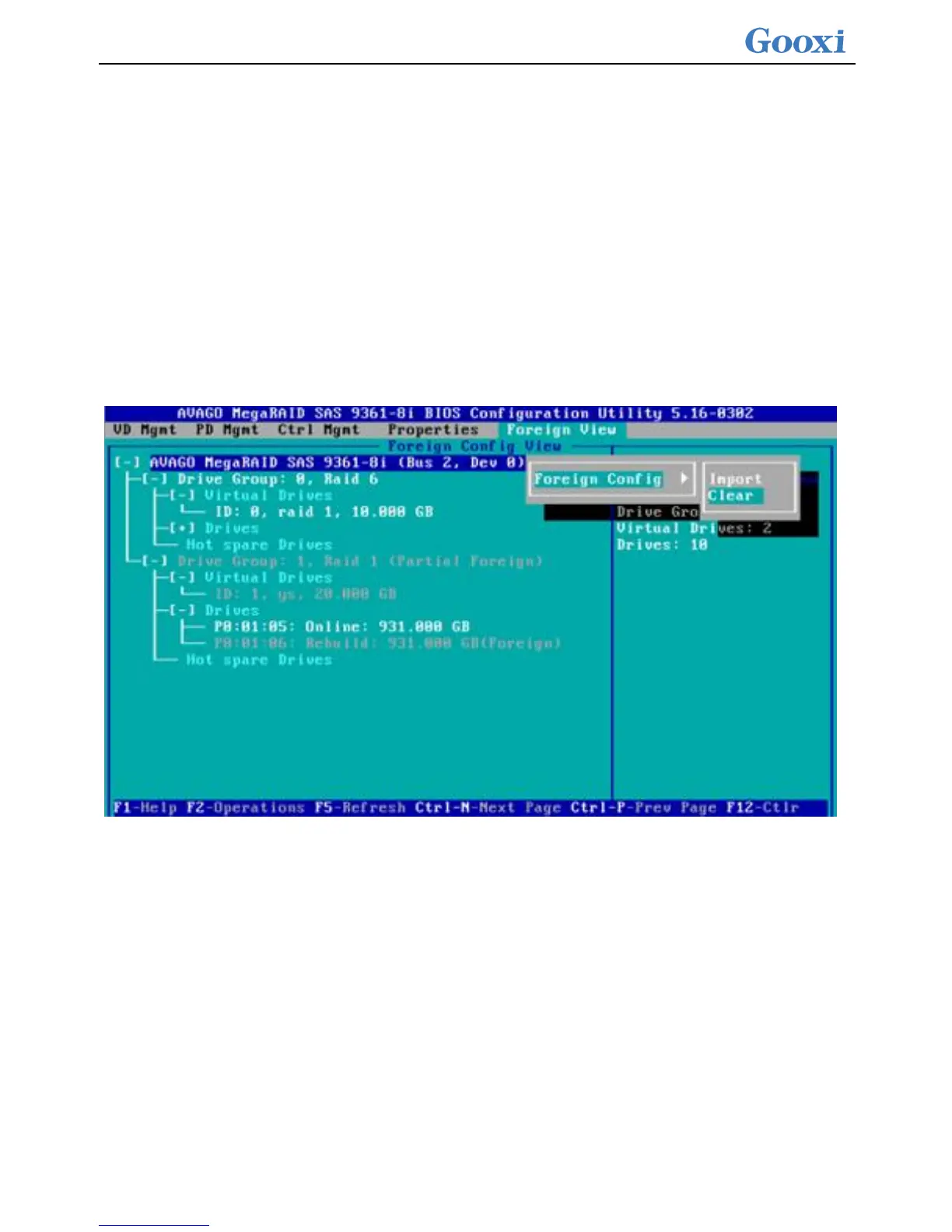

b) As shown in Figure 2-118, in the Foreign View interface, select the RAID card, press
F2, select Foreign Config->Clear, and press Enter.
Figure 2-118 Select Foreign Config->Clear
c) In the pop-up dialog box shown in Figure 2-119, select OK and press Enter to finish
clearing disk RAID information.
Figure 2-119 Confirm Clear
