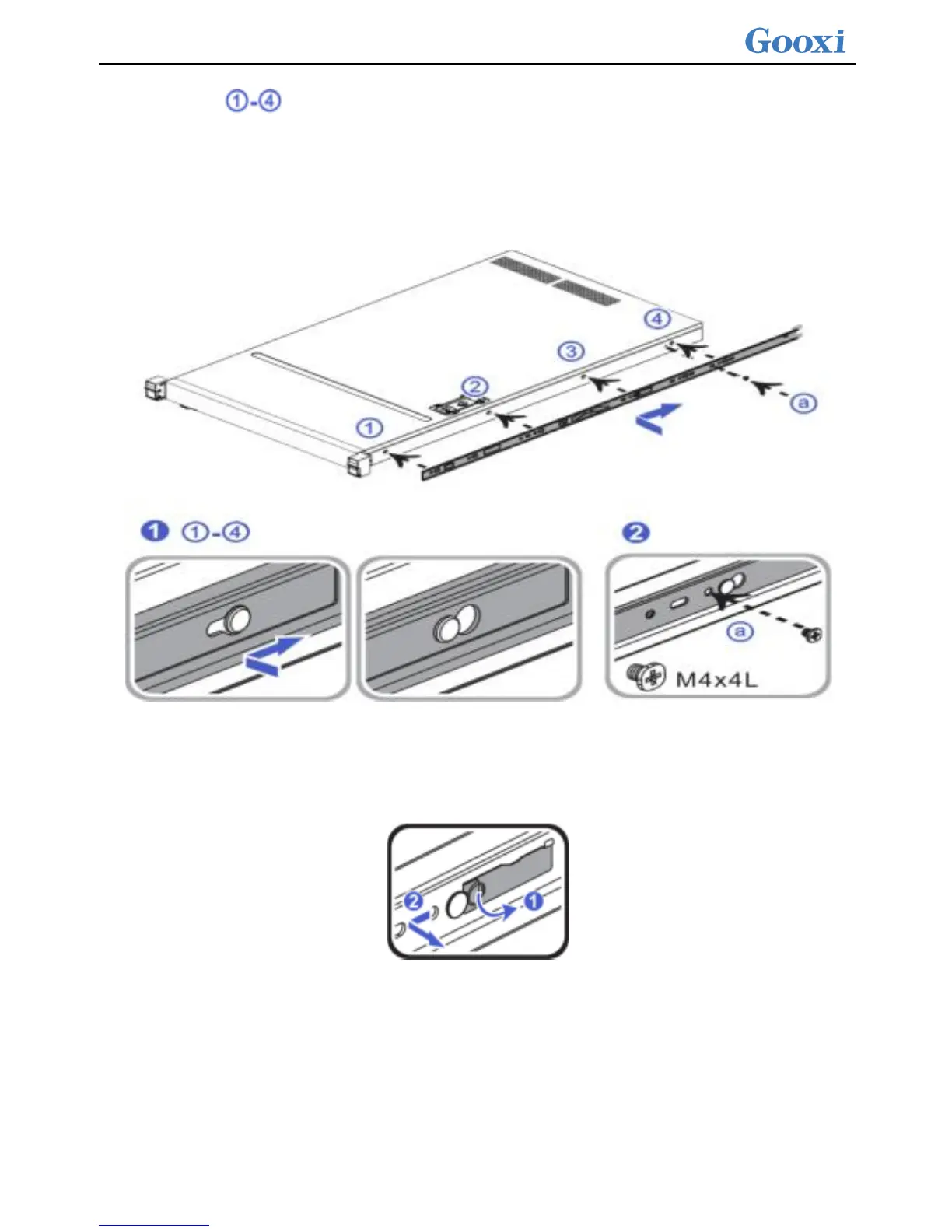

2-1. Align the positioning holes of the inner rail with the four hanging screws on the side of
the chassis, and install the inner rail to the chassis according to the diagram.
After the installation is completed, you can hear a click and you need to ensure that it is in
place.
2-2. At chassis a, lock the M4x4 screws in the accessories to chassis a. Complete step 2
Note: When removing the inner rail from the chassis, unlock the buckle in the inner rail as
shown in the figure
Step 3. Install the guide rail to cabinet (symmetry between the left and right guide rails,
please repeat the installation)
3-1. Push the rear end hook of the guide rail as indicated by the arrow and align the cabinet
hole position to install the guide rail into the cabinet.
3-2. After installing the rail into the cabinet rear end, you can hear the click sound and
To Next Page
