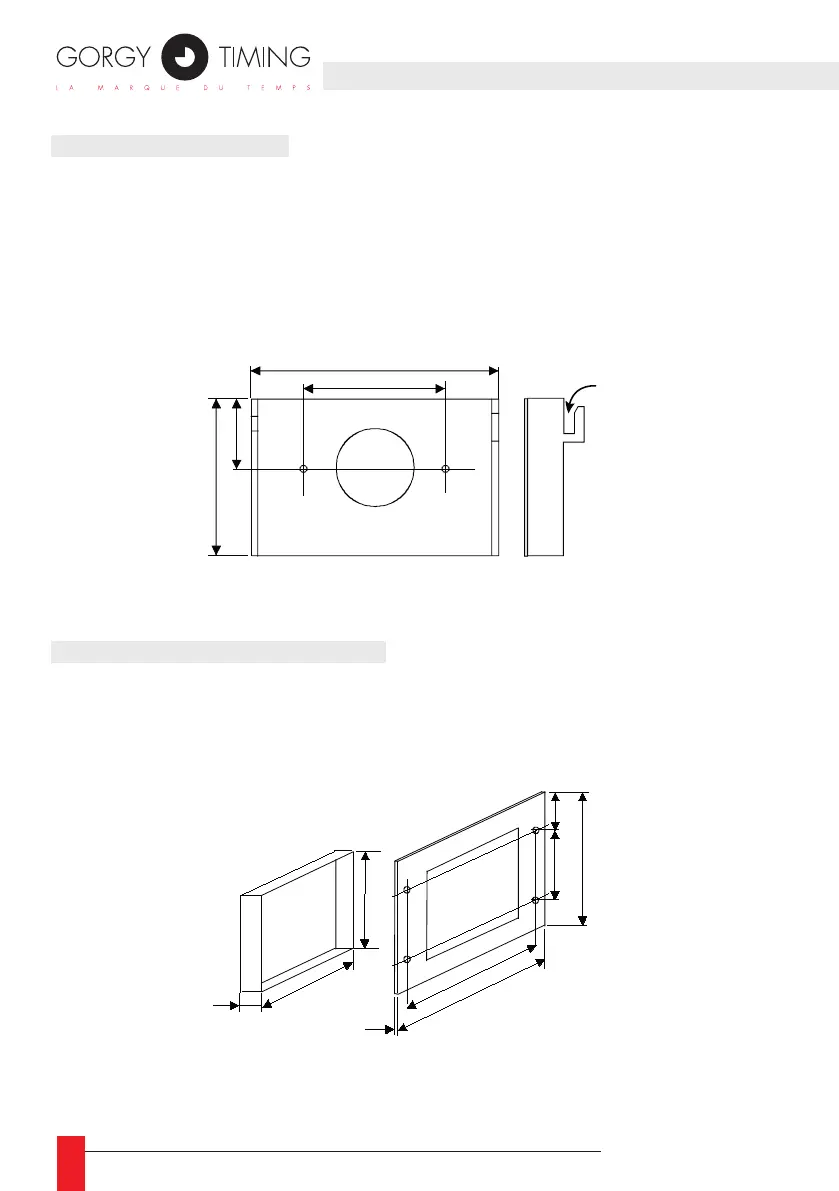

2. INSTALLATION
2.1. STANDARD CASE
► Preparation of the wall support to x the bracket: allow for a margin of at least
15 mm between the top of the case and the ceiling.
► Fix the bracket to the wall support using two M4 screws.
► Attach the case to the bracket.
2.2. FLUSH-MOUNTABLE CASE
► Preparation of the wall support : provide an opening measuring 127 X 127 mm
► Fix the front to the support using four M4 screws.
