10.3 CONNECTION DIAGRAM

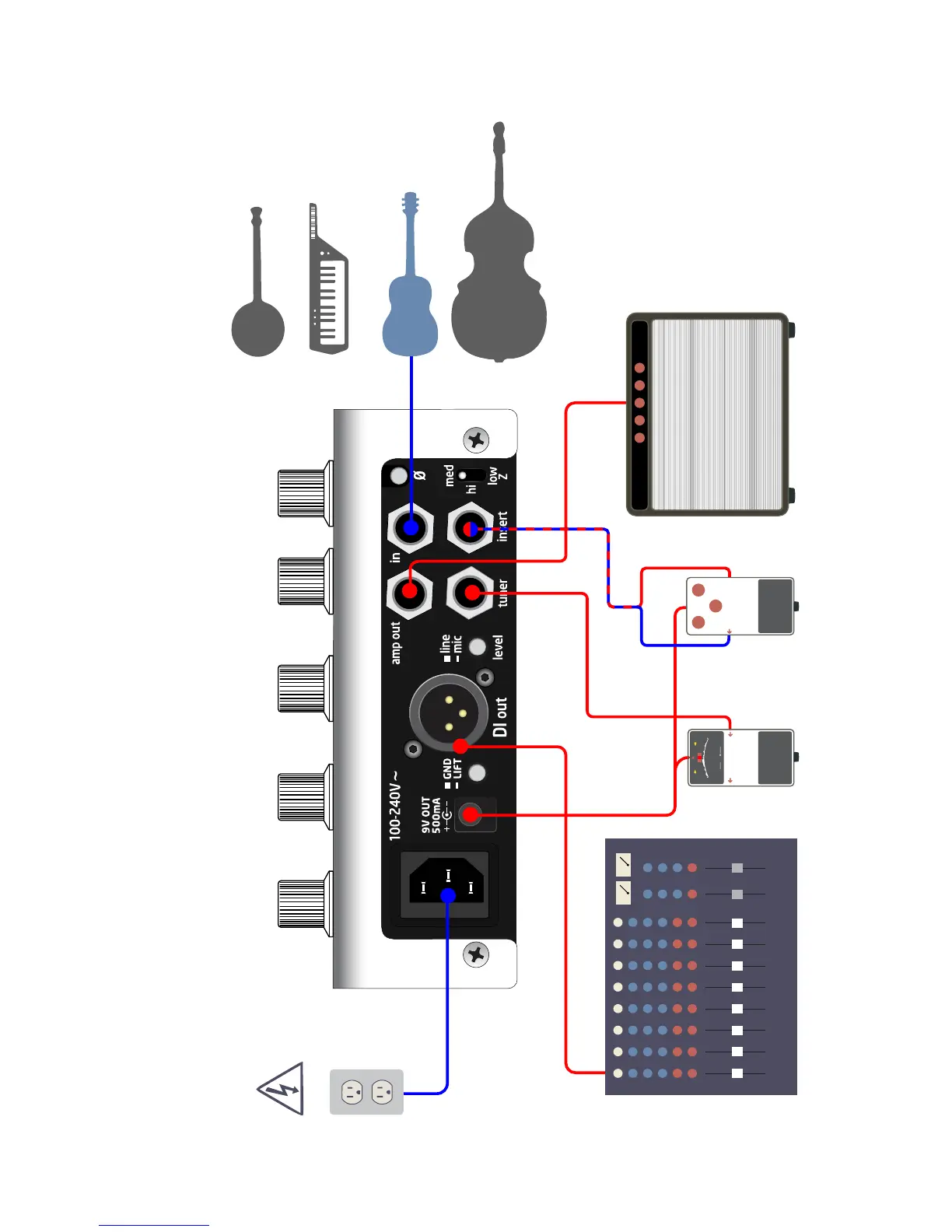

ALiX connections
Nothing too terribly hard and fast here - just the basics about how to plug stu in and out of your preamp. INPUT paths are shown in blue. OUTPUT paths are shown in red. There are many ways to setup your preamp, so if you aren’t sure about how something works, please have a look at your owner’s manual, check out our website - www.gracedesign.com - or feel free to call us. We are always glad to help out in any way we can. 1.303.823.8100, M-F, 9-5 MST
Your instrument plugs into ALiX
external eects are routed
through the insert
stage amp is fed by amp out
PA system / mixer is fed by DI output
stage tuner is
fed by tuner out
9VDC OUT powers a few pedals
100 ~ 240 VAC power
reverb
out input
Mr. Amp
tuner
out input
A
