10.5 INTERNAL JUMPER LOCATIONS

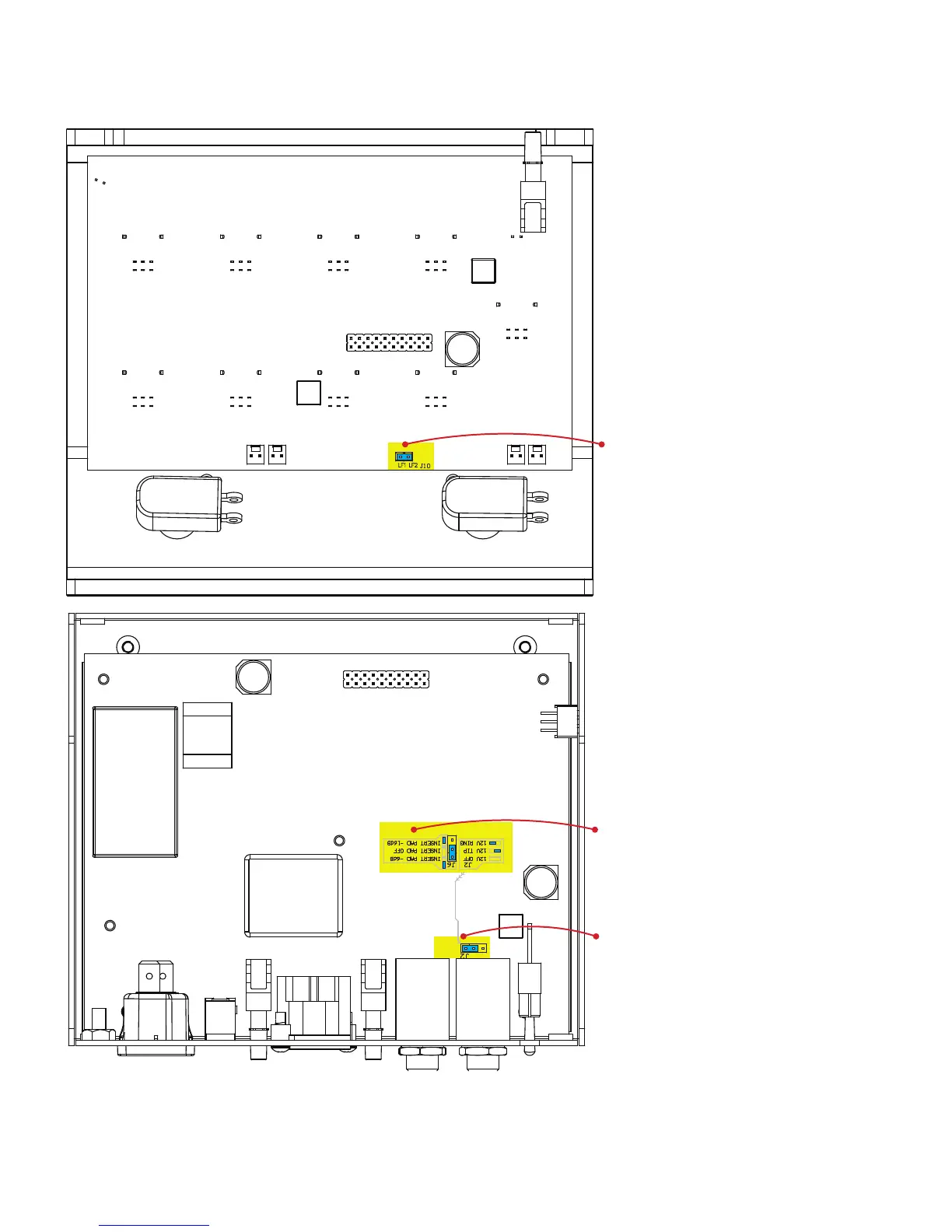

J6 sets the pad settings
for the INSERT send.
Levels are -6dB, -16dB,
or o. Set to o at the
factory
J2 congures 12V power,
which can be applied
to tip, ring, or set to o.
Set these according to
how your microphone /
instrument is wired. Set
to o at the factory
J10 congures the LOW
EQ corner frequency. It is
set to LF1 at the factory
(125Hz corner frequency)
with the jumper only
connected to one pin.
To set to LF2 (250Hz
corner frequency), simply
push the jumper down
onto both pins, so they
are connected by the
jumper.
J2
J6
