Grace ALiX - Back Panel Controls and Features; Side Panel Controls and Features

5

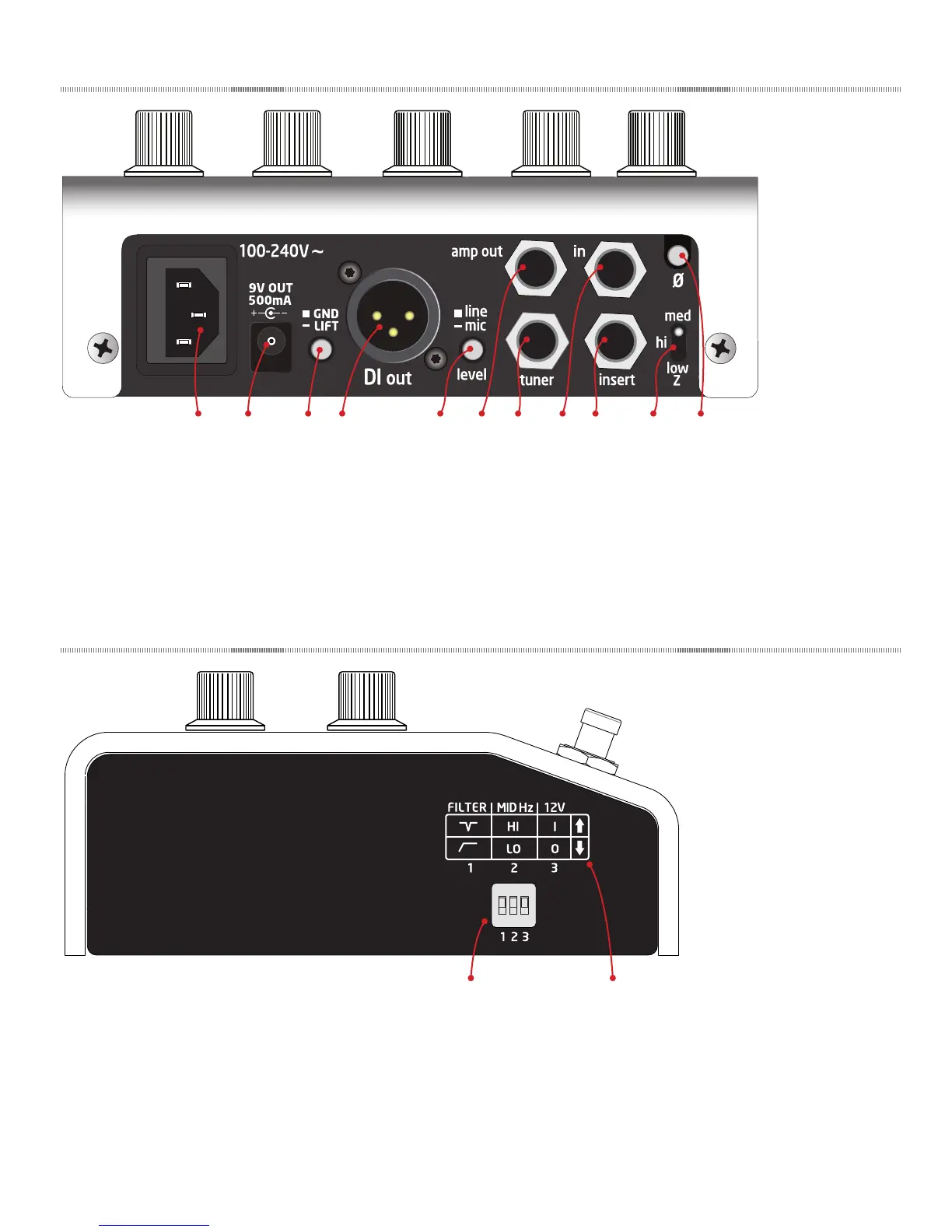

6 Back Panel Controls and Features
1 2 3 4 95 6 7 8 10 11
1. Universal input100-240VAC power supply input module
2. 9VDC @ 500mA auxiliary power output
3. Ground lift switch
4. DI output
5. DI output line / mic level select
6. Amp Output
7. Tuner Output
8. Instrument line input
9. Eects Insert
10. Input impedance select
11. Phase reverse switch
7 Side Panel Controls and Features
1 2
1. DIP switch controls:
1) HPF or Notch select
2) MID EQ range LO or HI
3) 12V power on and o
2. Dip Switch location diagram
