Grace GMQ Pro - Batting Rail Mount End to Table Assembly; Rail Assembly

22
(ID: 040708)
Left Batting Rail
Mount End Assembly
1/4" Flat Washer
1/4" Nylock Nut
1/4" Plastic Knob
1-1/4" Fender Washer
Right Batting Rail
Mount End Assembly
1/4" Flat Washer
1/4" Nylock Nut
1/4" Plastic Knob
1-1/4" Fender Washer

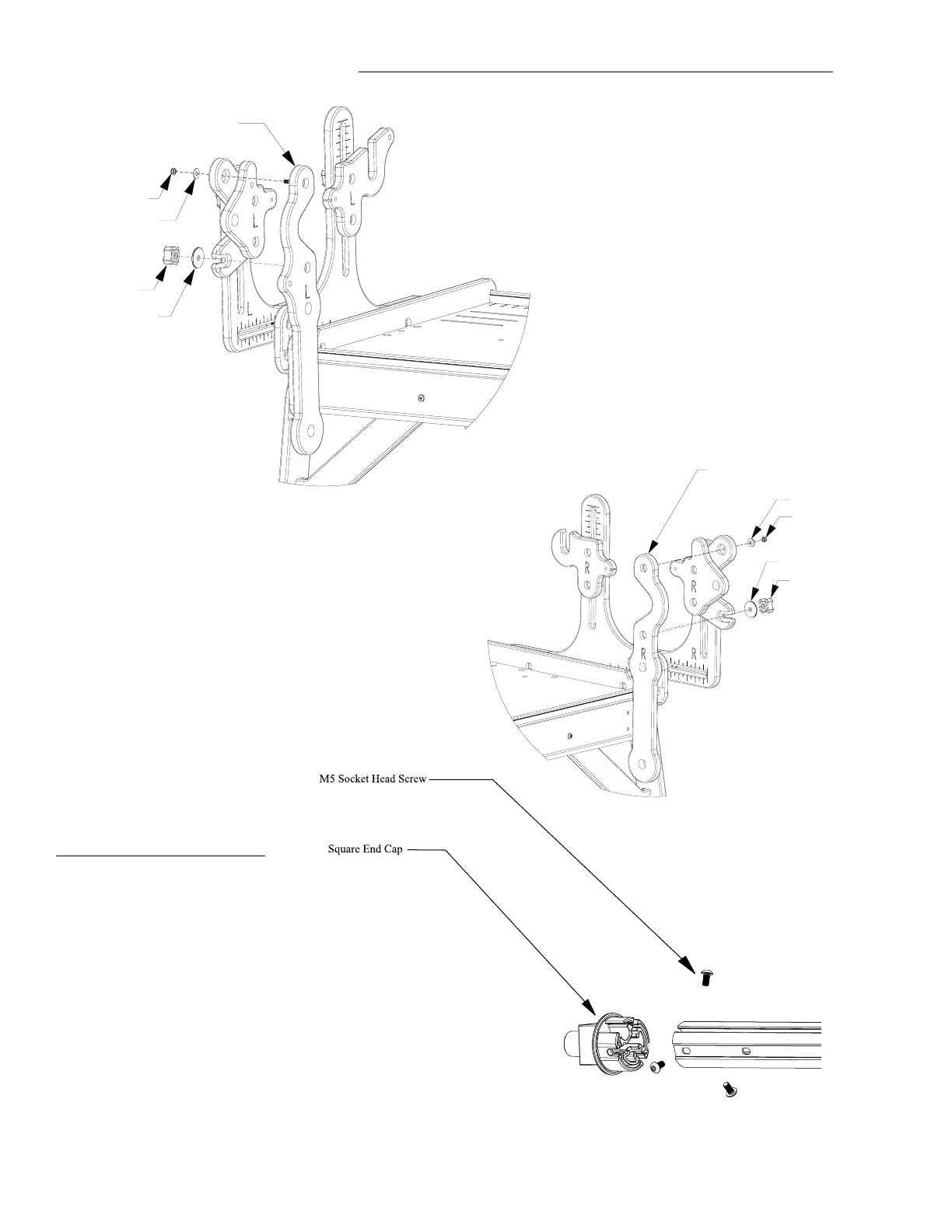

Step 21: Batting Rail Mount End to Table Assembly

  
  
  
  














Step 22: Rail Assembly

  
  
  
  
  
  
  
  
  


M6 Nylock Nut
M6 Flat Washer
M6 Plastic Knob
M8 Fender Washer
M6 Flat Washer
M6 Nylock Nut
M8 Fender Washer
M6 Plastic Knob
