- B.6.20.44-B
F22.060.03, issued on 01.98
GENERAL ASSEMBLY INSTRUCTIONS
Always use recommended torques.
Grease thread lightly.
Do not use PTFE tape or hemp.
Components not supplied by us must have dimensions that correspond to the given dimensions
of the reciprocating pump.
- Follow the manufacturer’s instructions
Observe manufacturer's assembly instructions when using cutting rings or double conical rings.
If liquids are to be pumped which contain chlorinated hydrocarbons, e.g. trichloroethane or
methylene chloride, the parts in contact with the fluid in the suction and pressure system
must not be made of aluminium or have a zinc-plated surface.
- there can be metal organic reactions which are explosive and extremely caustic.

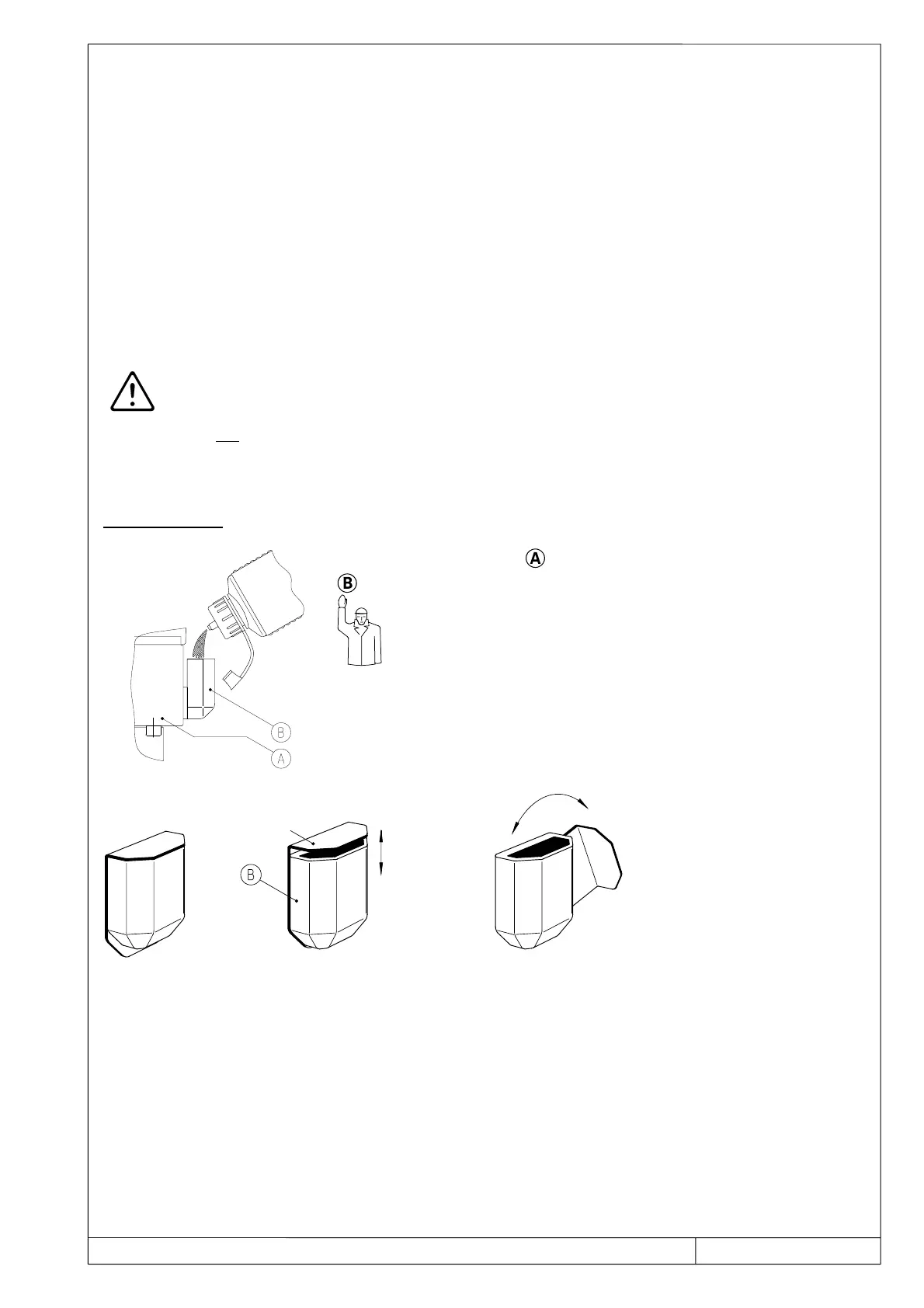

START UP
Fill the coupling housing up to the middle of the filling connector
with detergent, in the case of oil delivery pumps, fill with oil.
Any detergent used must be compatible with materials to be
used later; we recommend consulting your material supplier.
For this, the cover of the
filling connector must be
first swiveled to the side
and after filling, swiveled
back to the starting
position.
INSTALL SCREEN INSERT
The screens fitted to the reciprocating pumps do not have any insert.
The screen inserts (choice of mesh size depends on the nozzle used) must be fitted later.
Cover
Open
Close
Open
Close
