Operation
20 334530E
Operation

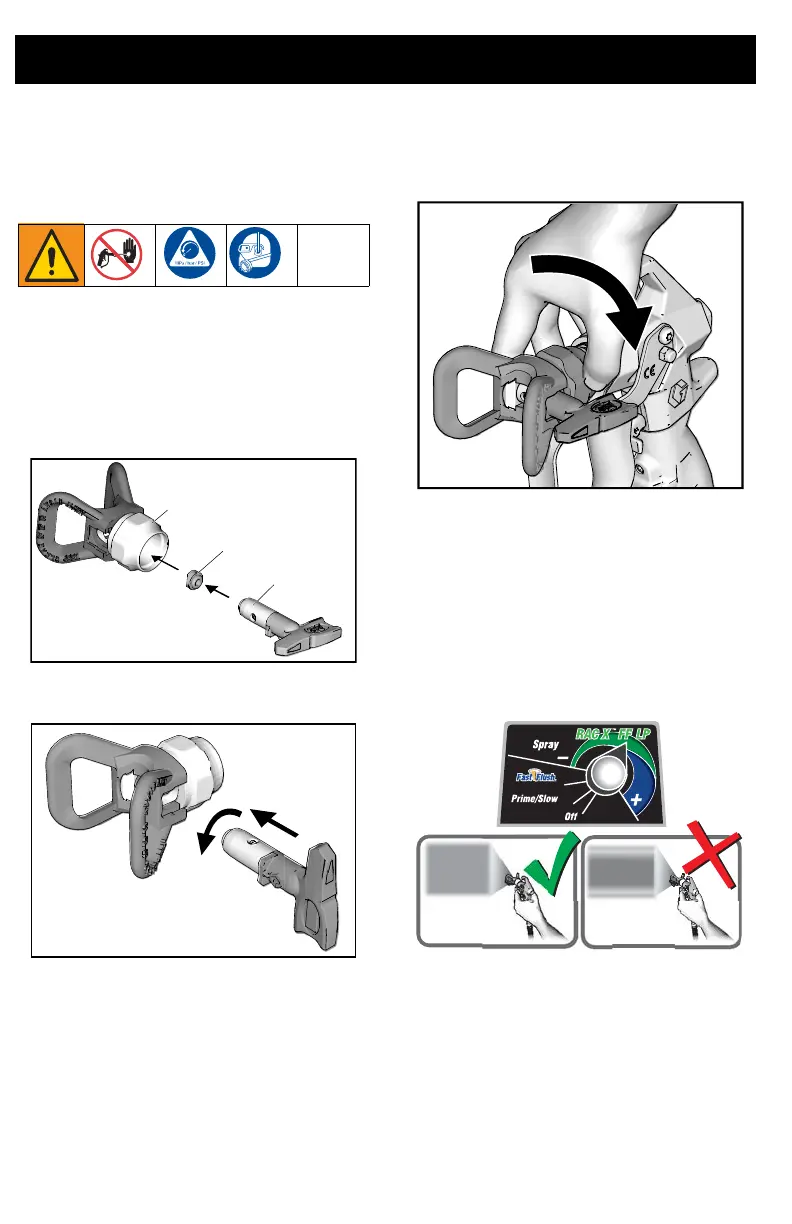

Spray Tip Installation
1. Perform Pressure Relief
Procedure, page 13.
2. Use spray tip (A) to insert
OneSeal
™
(B) into tip guard (C).
2. Insert Spray Tip.
3. Screw assembly onto gun. Tighten.
Spray
When a RAC X™ FF LP Fine Finish Low
Pressure reversible spray tip is used,
spraying pressure can be lowered. Spraying
at a lower pressure results in less overspray
and reduces spray tip wear. Adjust the
sprayer pressure to minimize overspray.
ti24653a
C
B
A
ti24664a
Atomized, evenly
distributed fan pattern
Tails
ti24652a
ti31220a
