490/495/395EU Stand Sprayers
42 334530E

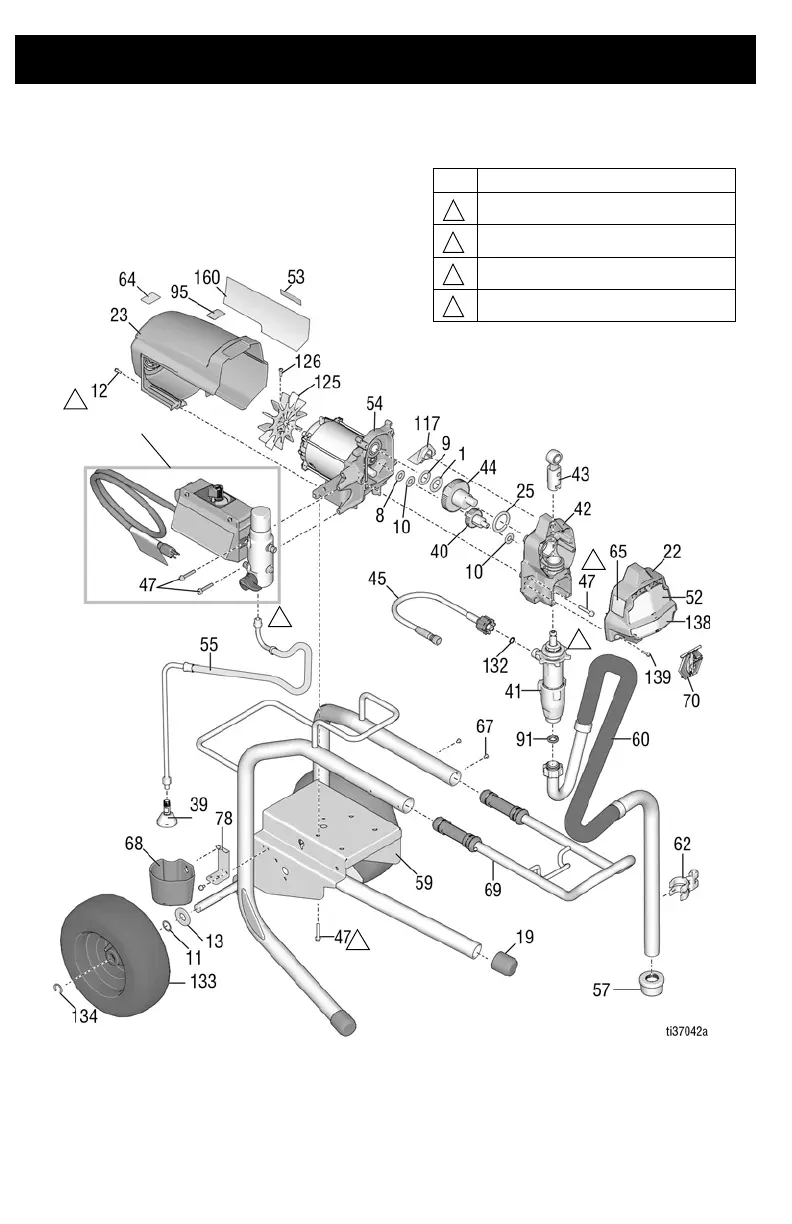

490/495/395EU Stand Sprayers Parts List
Ref. Part Description
Qty.
12 117501 SCREW, mach, hex
washer hd
4
13 115099 WASHER, hose
1
14 117559 O-ring
2
22 17C541 COVER, front, painted
1
23 15G449 SHIELD, motor,
painted
1
25 180131 BEARING, thrust
1
26
107434 BEARING, thrust 1
27
116073 WASHER, thrust 1
28
116074 WASHER, thrust 1
29
116079 BEARING, thrust 2
33 206994 FLUID, TSL (not
shown)
1
34
See page
49
CARD, medical alert
(not shown)
1
39 241920 DEFLECTOR,
threaded
1
40 249194 GEAR, reducer
1
41 PUMP, displacement,
PC
1
17C487 North America
17C488 Asia/ANZ/Japan
17C489 Europe
42 24W817 HOUSING, drive, PC,
includes 12, 47, 70
1
43 24W640 ROD, connecting, PC
1
44 24X020 KIT, repair, crankshaft,
includes
25
1
45 24W830 KIT, hose, cpld, PC,
include
s 132
1
46 See page
49
HOSE, cpld, 1/4 in. x
50 ft (not shown)
1
47 117493 SCREW, mach, hex
washer hd
9
52 See page
49
LABEL, front,
upper/lower
1
53 See page
49
LABEL, side
1
54 MOTOR, includes 54a,
54b
1
24S022 490/495/395EU
287807 595
54a 15D088 FAN, motor
1
54b 115477 SCREW, mach, torx,
painted
1
55 246381 HOSE, drain, stand,
include
s 39,62
1
57 246385 STRAINER, 7/8-14 unf
1
59 15E823 FRAME, standmount
1
60 246386 KIT, hose suction,
includes 13, 14, 57, 62
61 See page
49
GUN, spray (not
shown)
1
62 276888 CLIP, drain line
1
63
See page
49
LABEL, danger
1
65
See page
49
LABEL, warning
1
66 116139 GRIP, handle
1
67 15G857 CAP, leg
4
68 287903 CUP, suction/drain
1
69 287072 HANDLE, sprayer,
includes 47, 66
1
70 17C483 COVER, pump rod
1
71 122667 SCREW, drill, hex
washer head
1
108 115523 GAUGE, pressure,
fluid, not shown (on
select models)
1
132 16H137 PACKING, O-ring
1
139 127914 SCREW, mach, slot,
hex
3
206994 FLUID, TSL, 8 oz. (not shown)
1
Replacement Danger and Warning labels,
tags, and cards are available at no cost.
Ref. Part Description
Qty.
