Graco 17С327 - 230 V

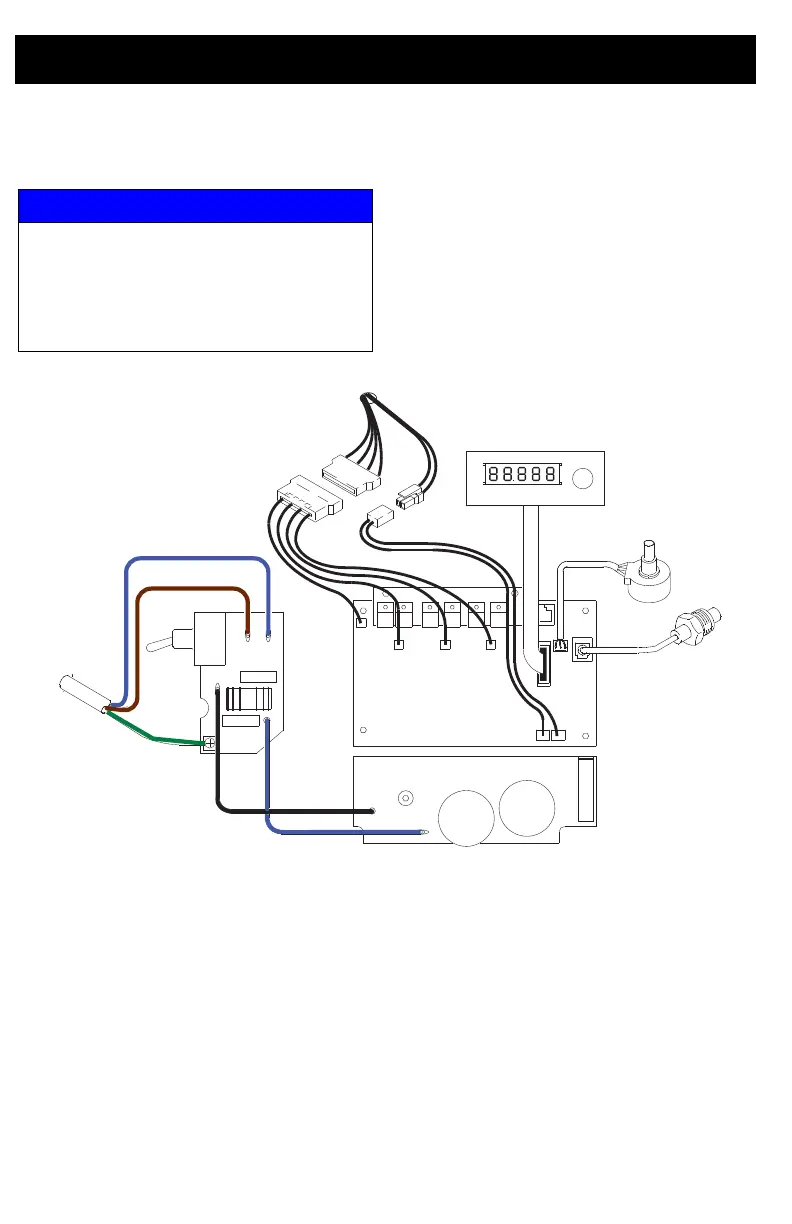

Wiring Diagrams
54 334530E
230V
NOTICE
Heat from inductor coil of filter board may
destroy wire insulation that comes in
contact with it. Exposed wires could cause
shorts and component damage. Bundle
and tie loose wires so none lay in contact
with inductor coil on the filter board.
MOTOR
ti7454b
On/O Switch
Blue
Black
Blue
Green
Brown
To Power
Plug
Potentiometer
Pressure
Transducer
J12
J11
