Graco 190ES 309063F - On;Off Switch Replacement; 120 Vac Procedure

14 309063
On/Off Switch Replacement
120 Vac
Removal
1.
Relieve pressure; page 6.
2. Fig. 10 and 11. Remove four screws (18) and
pressure control cover (39).
3. Disconnect two wires (A) from ON/OFF
switch (23).
4. Remove toggle boot (25) and locking ring (24).
Remove ON/OFF switch (23).
Installation
1. Install new ON/OFF switch (23). Install locking ring
(24) and toggle boot (25).
2. Connect two wires (A) to ON/OFF switch.
3. Install pressure control cover (39) with four
screws (18).
ti0057b

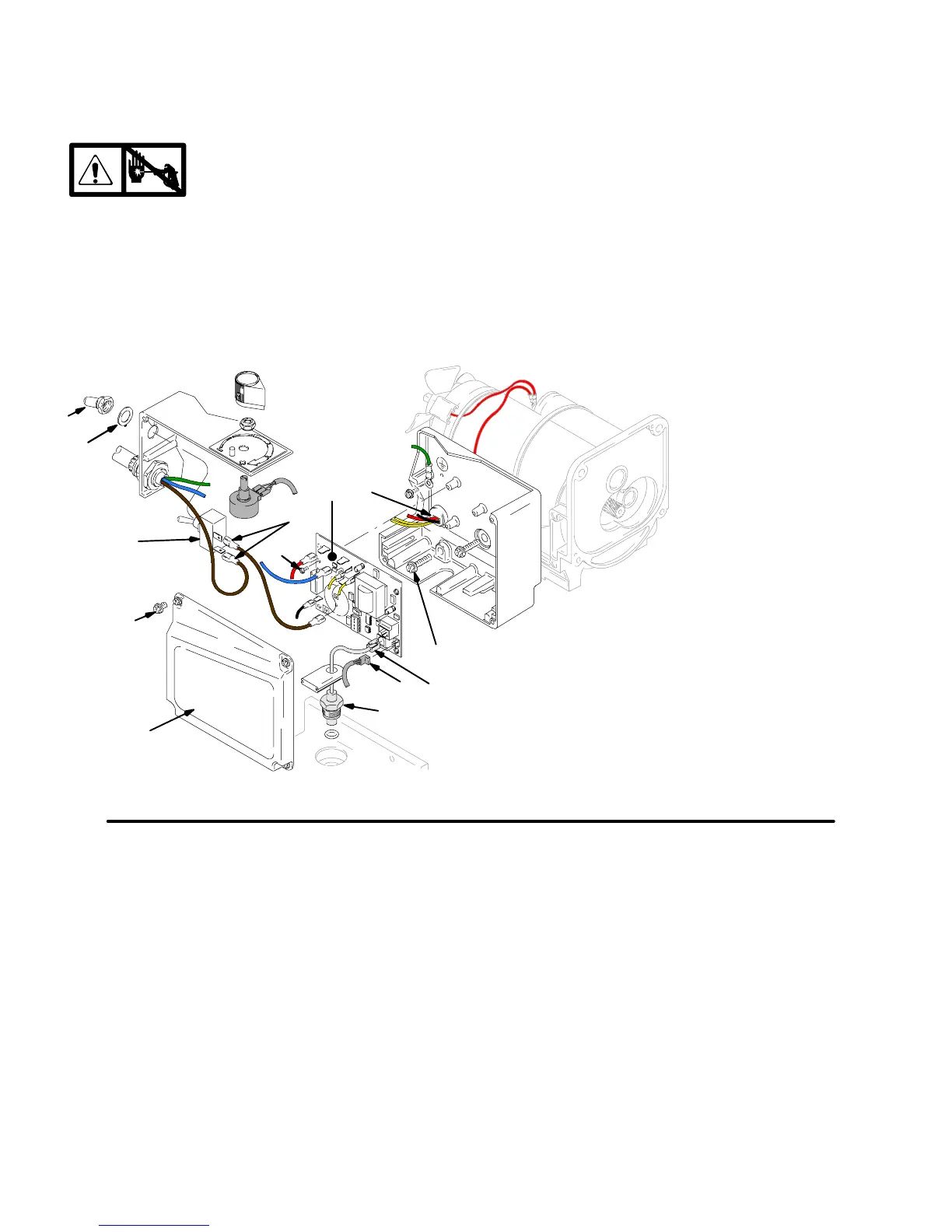

Fig. 10
39
A
18
23
36
52
E
D
35
36
25
24
37
22
