Graco 190ES 309063F - 240 Vac Procedure and Wiring

18 309063
On/Off Switch Replacement
240 Vac (232906)
Removal
1.
Relieve pressure; page 6.
2. Fig. 14. Remove pressure control cover (39).
3. Disconnect four wires (A) at ON/OFF switch (23).
4. Remove toggle boot (25) and locking ring (24).
Remove ON/OFF switch (23).
Installation
1. Install new ON/OFF switch (23). Install locking ring
(24) and toggle boot (25).
2. Connect four wires (A) to ON/OFF switch.
3. Install pressure control cover (39).

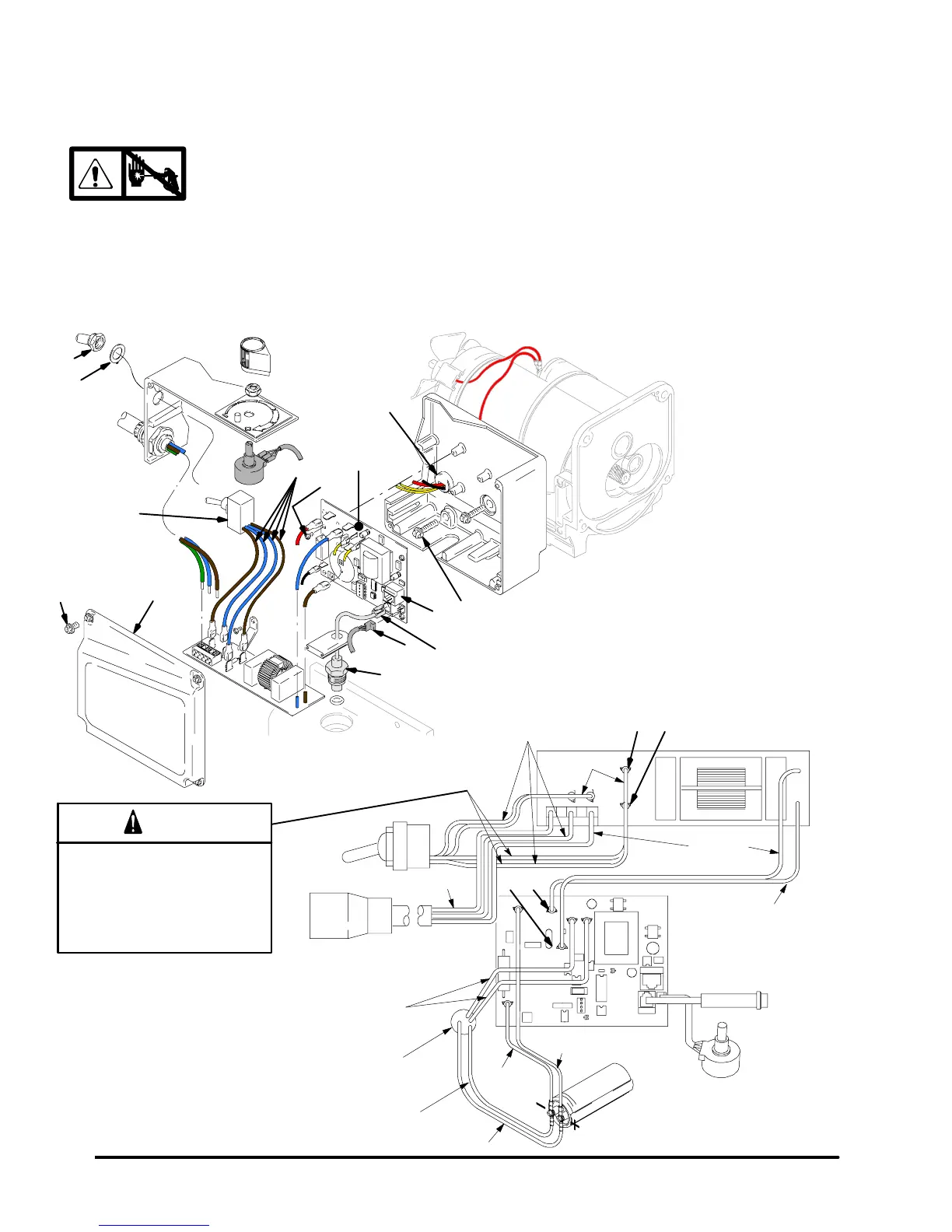

ti0055b
Fig.
14
39
A
23
36
52
E
D
25
24
C
35
37
18
L1L2
TP1 TP2
Pressure
T ransducer
ON/OFF
Switch
Power
Plug
Potentiometer
from Motor
Filter Board
Red (+)
Wiring Diagram
Heat from inductor coil of filter board
may destroy wire insulation that
comes in contact with it. Exposed
wires could cause shorts and com-
ponent damage. Bundle and tie all
loose wires so none lay in contact
with inductor coil of filter board.
Caution
Yellow
Brown
TI0058
Capacitor
Blue
Black (--)
Brown
Blue
Green/Yellow
22
Black/White (--)
Red/White (+)
