Graco 26A814 - Wiring Diagram

System Configuration
10 3A7031A
Wiring Diagram
Wiring Key

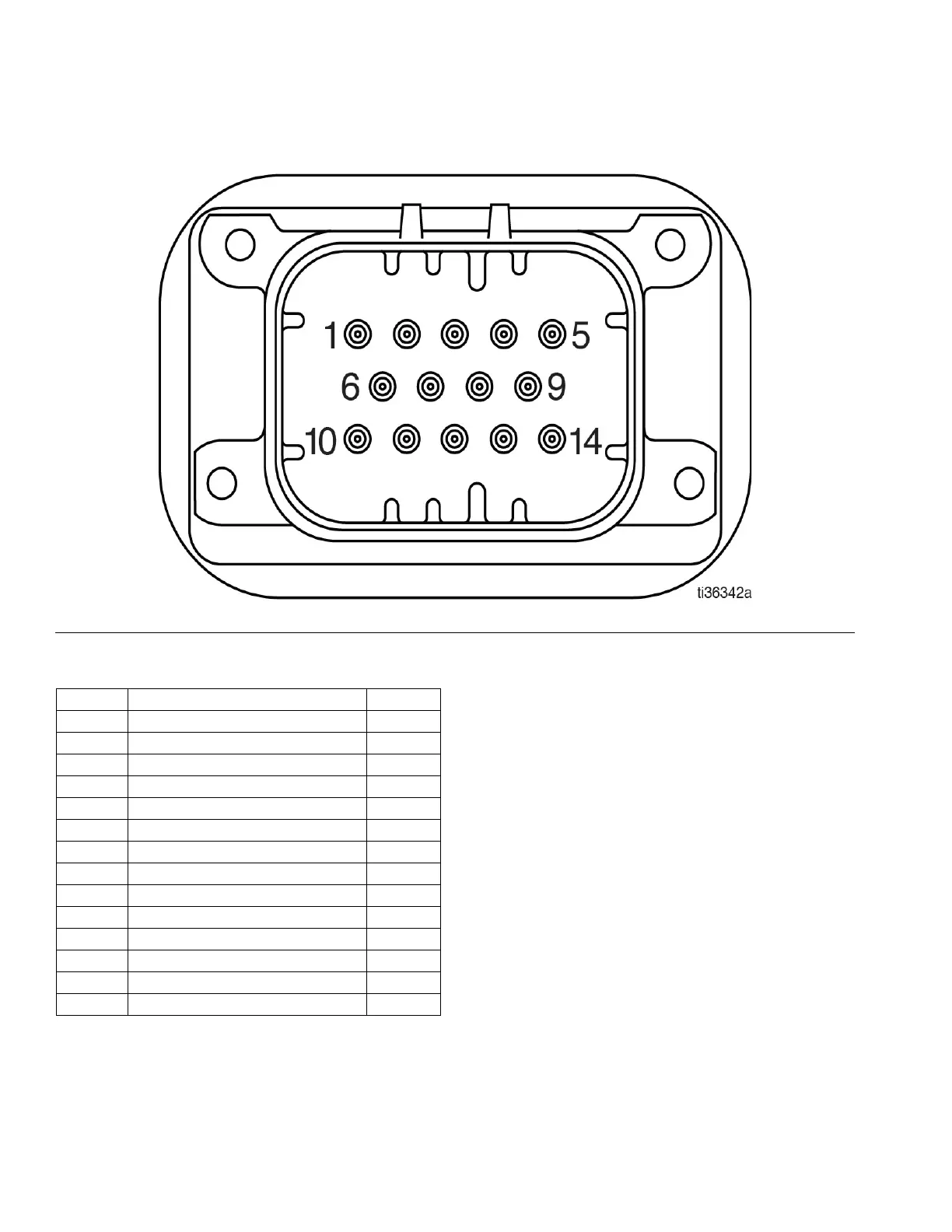

FIG. 8: Wiring Diagram
Pin Description Polarity
1 Pump / Motor +
2 Auxiliary / Alarm +
3 Auxiliary / Alarm ground -
4 Sensor power 1 +
5 Sensor power 2 +
6 Voltage source +
7 Pump / Motor ground -
8 Input 2 ground -
9 Input 2 (LOW LEVEL) Input
10 Voltage source ground -
11 Input 3 (CYCLE) Input
12 Input 4 (MACHINE COUNT) Input
13 Input 1 ground -
14 Input 1 (PRESSURE) Input
