Graco A Series Instructions

Parts
309577T 25

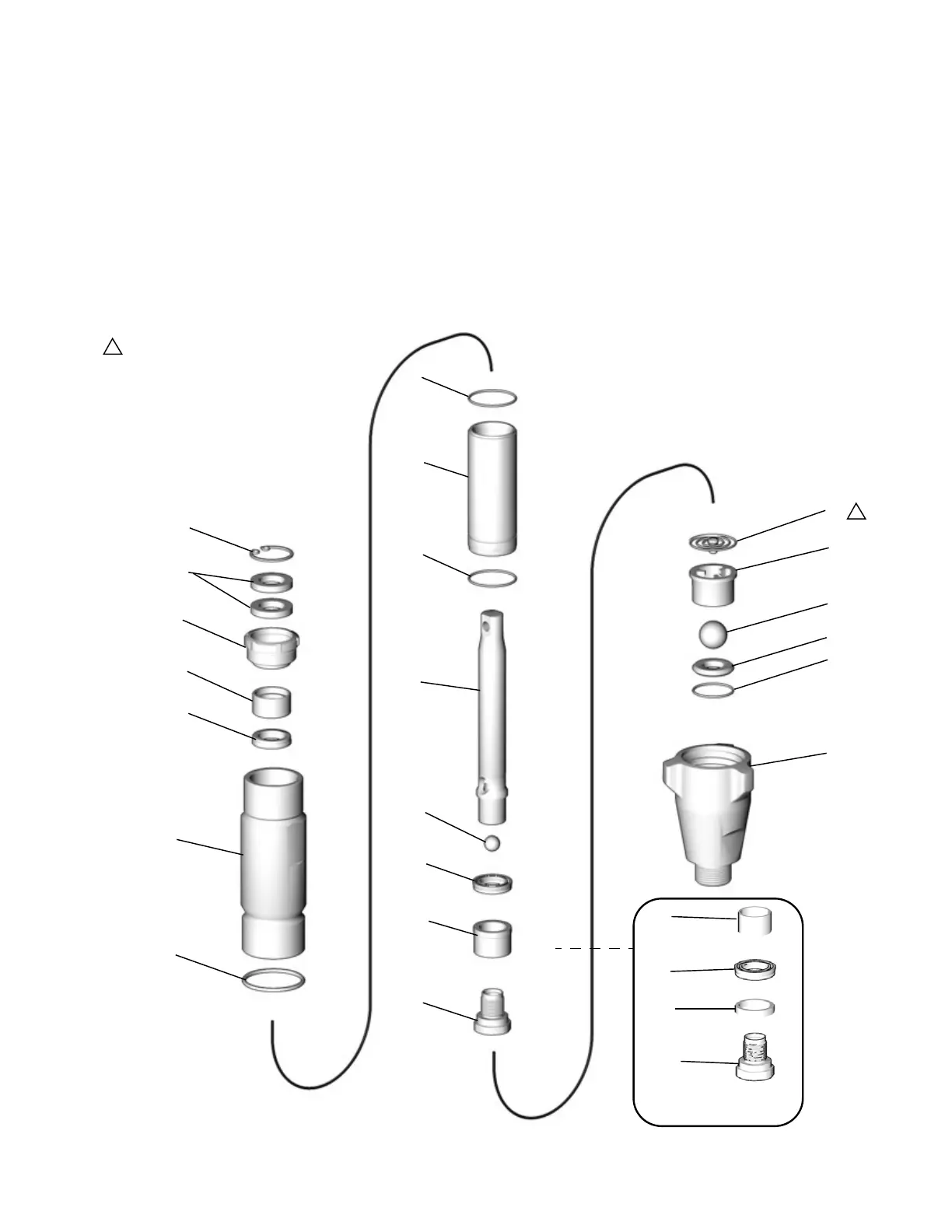

Component B (Resin) Pumps
NOTE: These pumps were also used on Component A (ISO) side of Reactors built before May 2003.
Part 245970
E-20 and E-XP1; includes items 1-7, 9-23
Part 245971
E-XP2; includes items 1-7, 9-22
Part 262648
A-25; includes items 1-7, 9-22
Part 245972
E-30; includes items 1-22 (shown)
Part 24Y174
A-XP1; includes items 1-7, 9-22
*17
19
*20
*21
*22
TI2577
Used on 245972 only.
1
1
2
*3
*3
4
5
7
8*
10*
9
11*
12
*13
*15
*16
1
*14
*18
*13
7
*14
}
245971, 262648,
24Y174 only
