Graco CSP Series - Page 7

Installation
3A3995L 7
When using the cylindrical adapter (FIG. 4):
1. Apply user supplied thread adhesive to the threads.
2. Thread the proximity switch onto the adapter, and
torque to within 22 to 26 in-lbs (2.5 to 3 N•m
) (FIG.
4).
NOTE: Over-torquing causes switch failure.
When using the rectangular adapter (F
IG. 5);
1. Slide the switch into the adapter
2. Tighten the set screw to within 5 to 7 in-lbs
(.6 to .8 N•m
).
3. Mount the proximity switch assembly to the CSP
valve.
• For Series A CSP Valves: torque to within 25 to 30
in-lbs (2.8 to 3.4 N•m
) (FIG. 6).
• For Series B CSP Valves: use a user supplied 5/64
in. (2 mm) hex key to torque the set screw to within
5 to 7 in-lbs (.6 to .8 N•m
) (FIG. 7).

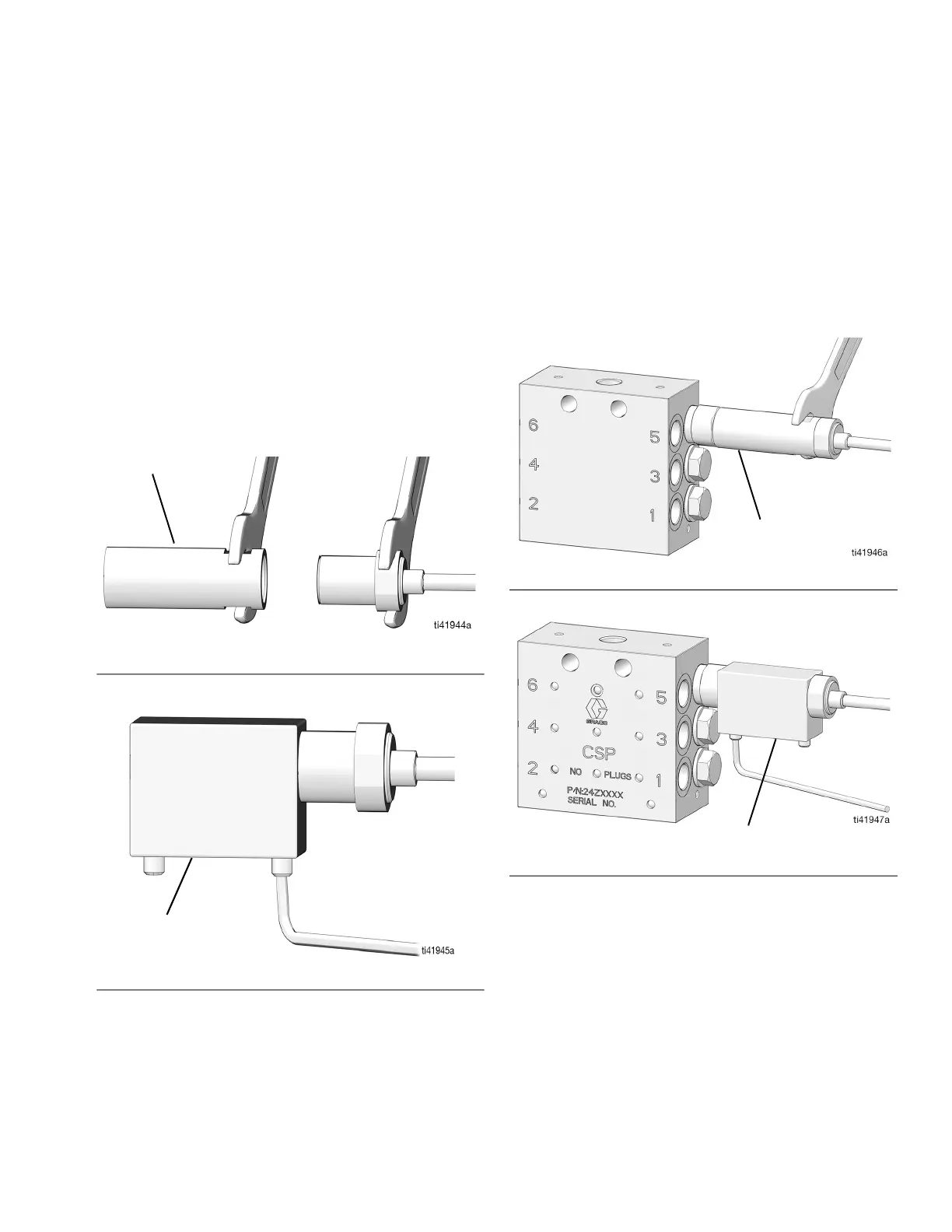

FIG. 4: Series A CSP Valve
FIG. 5: Series B CSP Valve
Cylindrical Adapter
Rectangular Adapter
FIG. 6: Series A CSP Valve
FIG. 7: Series B CSP Valve
Cylindrical Adapter
Rectangular Adapter
