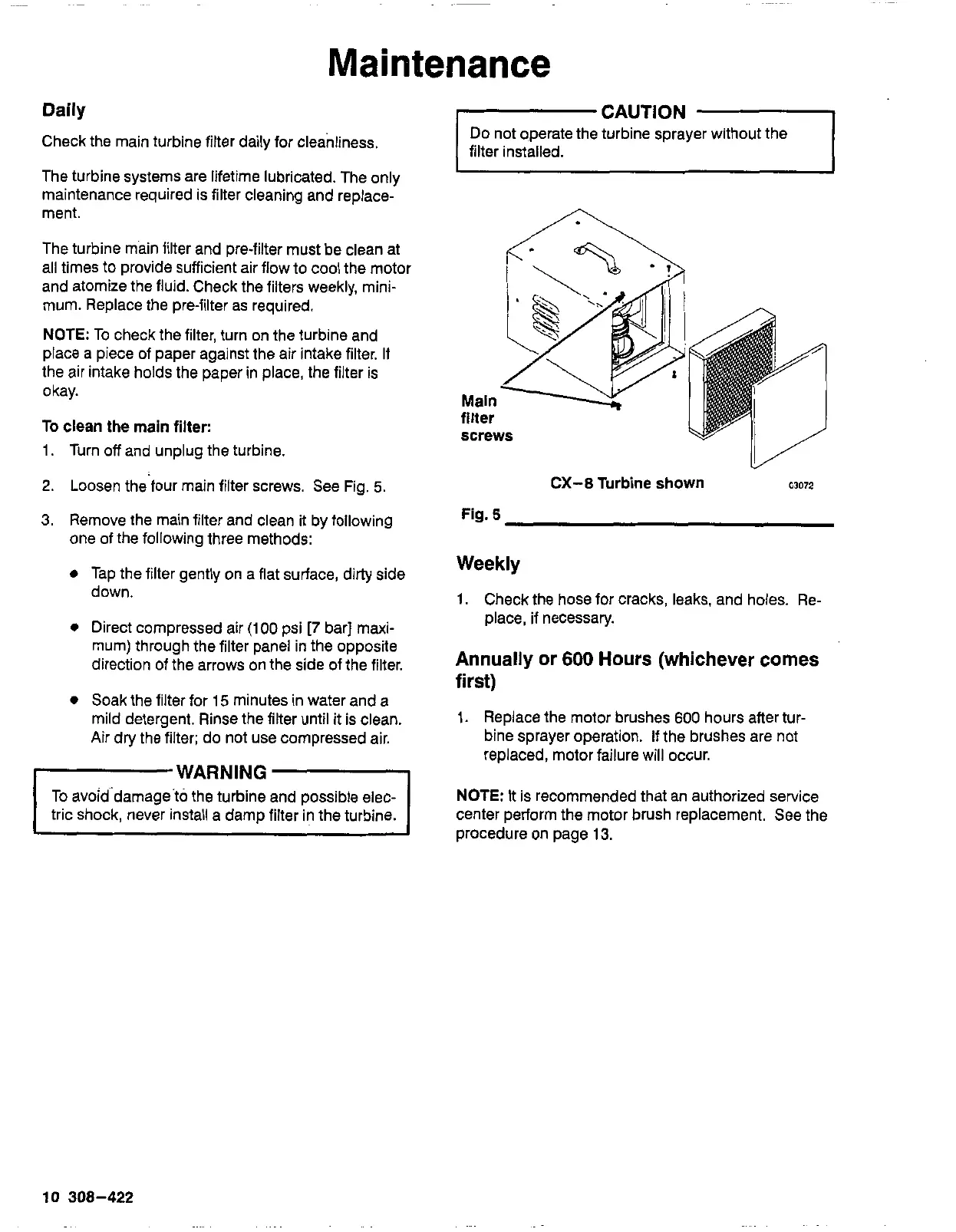

Maintenance
Daily
-CAUTION
Check the main turbine filter daily for cleanliness,
I
filter installed.
I
Do
not operate the turbine sprayer without the
The turbine systems are lifetime lubricated. The only
maintenance required is filter cleaning and replace-
ment.
The turbine main filter and pre-filter must be clean at
all times to provide sufficient air flow to cool the motor
and atomize the fluid. Check the filters weekly, mini-
mum. Replace the pre-filter as required.
NOTE:
To check the filter, turn on the turbine and
the
air
intake holds the paper in place, the filter is
place a piece of paper against the air intake filter, If
okay.
To
clean the main filter:
1. Turn
off
and unplug the turbine.
2.
Loosen the.four main filter screws. See Fig.
5.
CX-8
Turbine shown
03072
3. Remove the main filter and clean it by following Fig.
5
I
I
Main
filter
screws
one of the following three methods:
Tap the filter gently on a flat surface, dirty side
down.
Direct compressed air (100 psi
[7
bar] maxi-
direction of the arrows on the side of the filter.
mum) through the filter panel in the opposite
Soak the filter for 15 minutes in water and a
mild detergent. Rinse the filter until it is clean.
1.
Replace the motor brushes
600
hours after tur-
Air dry the filter; do not use compressed air. bine sprayer operation. If the brushes are not
Weekly
1.
Check the hose for cracks, leaks, and holes. Re-
place, if necessary.
Annually or
600
Hours (whichever comes
first)
WARNING
To avoid'damageto the turbine and possible elec-
tric shock, never install a damp filter in the turbine.
NOTE:
it is recommended that an authorized service
center perform the motor brush replacement. See the
procedure
on
page 13.
replaced, motor failure will occur.
10
308-422
