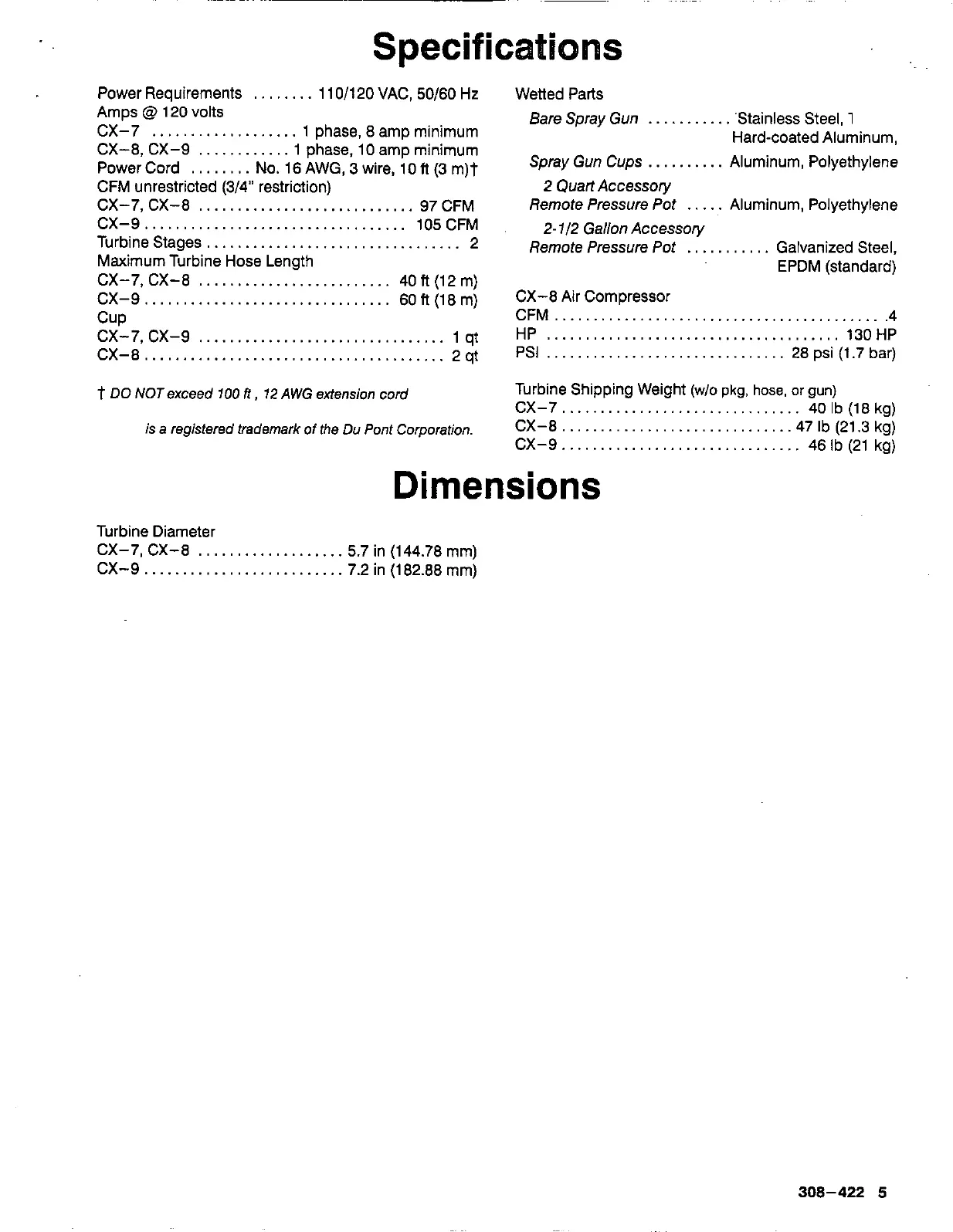

Graco CX-7 - Dimensions

Specifications
Power Requirements ........ 11 0/120 VAC, 50/60 Hz
Amps
@ 120 volts
CX-7 ................... 1 phase, 8 amp minimum
CX-8, CX-9
............ 1 phase, 10 amp minimum
Power Cord
........ No. 16 AWG, 3 wire, 10 ft (3 m)t
CFM unrestricted (3/4" restriction)
CX-7, CX-8
............................ 97 CFM
CX-9.. 105 CFM
................................
Turbine Stages 2
Maximum Turbine Hose Length
CX-7, CX-8
......................... 40 ft (12 m)
CX-9.. .............................. 60 ft (18 m)
.................................
CUP
cx-7, cx-9
................................
1 qt
CX-8
.......................................
2 qt
Wetted Parts
Bare Spray Gun
........... 'Stainless Steel,
Hard-coated Aluminum,
Spray
Gun Cups .......... Aluminum, Polyethylene
Remote Pressure Pot
..... Aluminum, Polyethylene
Remote Pressure Pot
...........
Galvanized Steel,
EPDM (standard)
2 Quart Accessory
2-1/2 Gallon Accessory
CX-8 Air Compressor
CFM
.......................................... .4
HP
...................................... 130HP
PSI
............................... 28 psi (1.7 bar)
t DO NOT exceed 100 fl , 12 AWG extension cord Turbine Shipping Weight (w/o pkg, hose, or gun)
is a registered trademark of the Do Pont Corporation. cx-8 .47 Ib (21.3 kg)
CX-7..
40 Ib (18 kg)
CX-9..
............................. 46 Ib (21 kg)
.............................
.............................
Dimensions
Turbine Diameter
CX-7, CX-8
................... 5.7 in (144.78 mm)
CX-9.. ........................ 7.2 in (182.88 mm)
