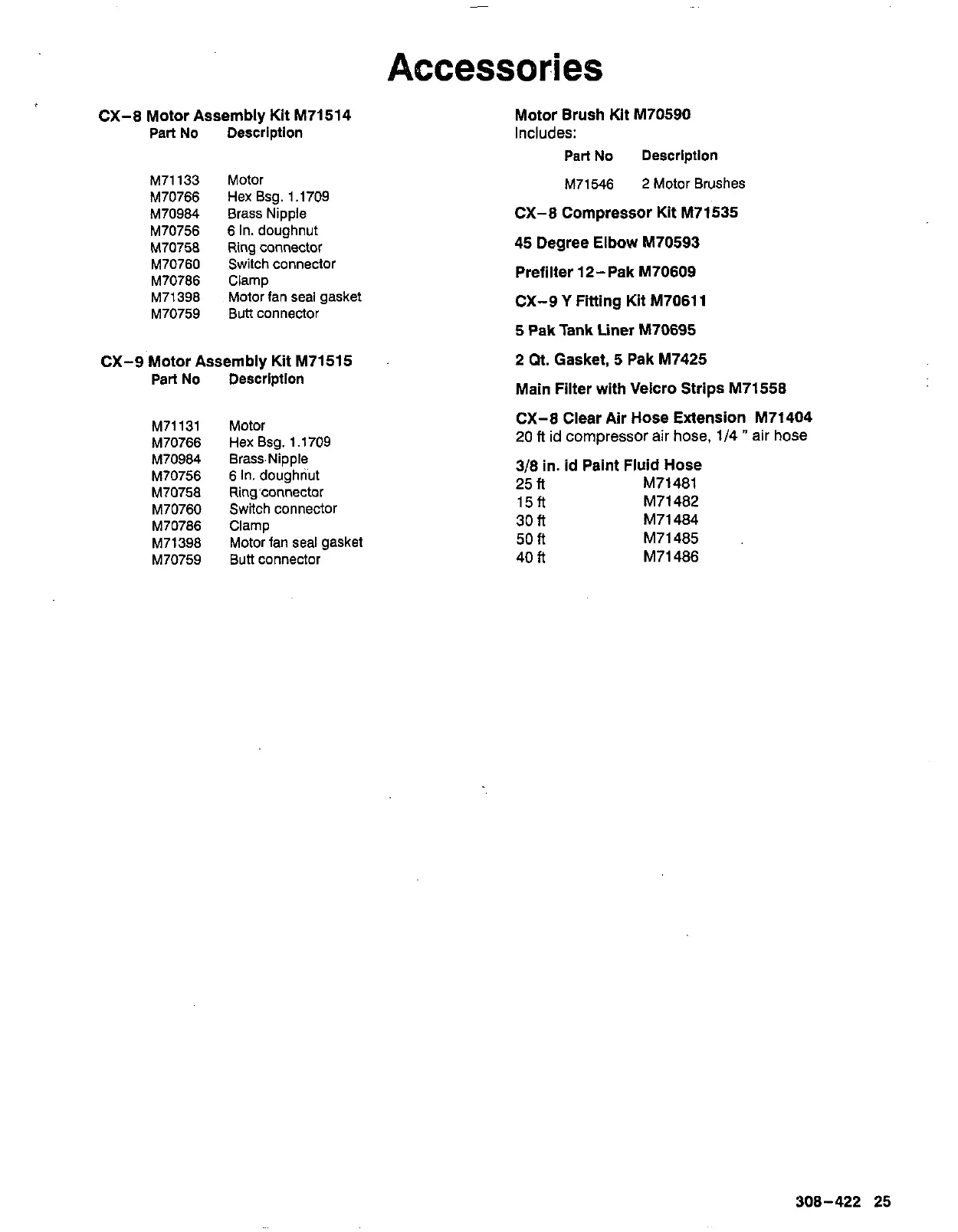

Graco CX-7 User Manual

CX-8 Motor Assembly Kit M71514
Part No Description
M71133
M70766
M70984
M70756
M70758
M70760
M70786
M71398
M70759
Motor
Hex Bsg. 1.1709
Brass Nipple
6 In. doughnut
Ring connector
Switch connector
Clamp
Motor fan
seal gasket
Butt connector
CX-9 Motor Assembly Kit M71515
Part No Descrlptlon
M71131
M70766
M70984
M70756
M70758
M70760
M70786
M71398
M70759
Motor
Hex Bsg. 1.1709
Brass.Nipple
6 In. doughnut
Ring connector
Switch connector
Clamp
Motor fan
seal gasket
Butt connector
Accessories
Motor Brush Kit M70590
Includes:
Part No
Description
M71546
2 Motor Brushes
CX-8 Compressor Kit M71535
45 Degree Elbow M70593
Prefilter 12-Pak M70609
CX-9
Y Fitting Kit M70611
5 Pak Tank Liner M70695
2
Qt. Gasket, 5 Pak M7425
Main Filter with
Velcro Strips M71558
20 ft id compressor air hose, 1/4 " air hose
CX-8 Clear Air
Hose Extension M71404
3/8 in. id Paint Fluid
Hose
25 n M71481
15n M71482
30 n M71484
50 n M71485
40
n M71486
308-422 25
