Graco D Series User Manual

How to Spray
3A3234E 15
How to Spray

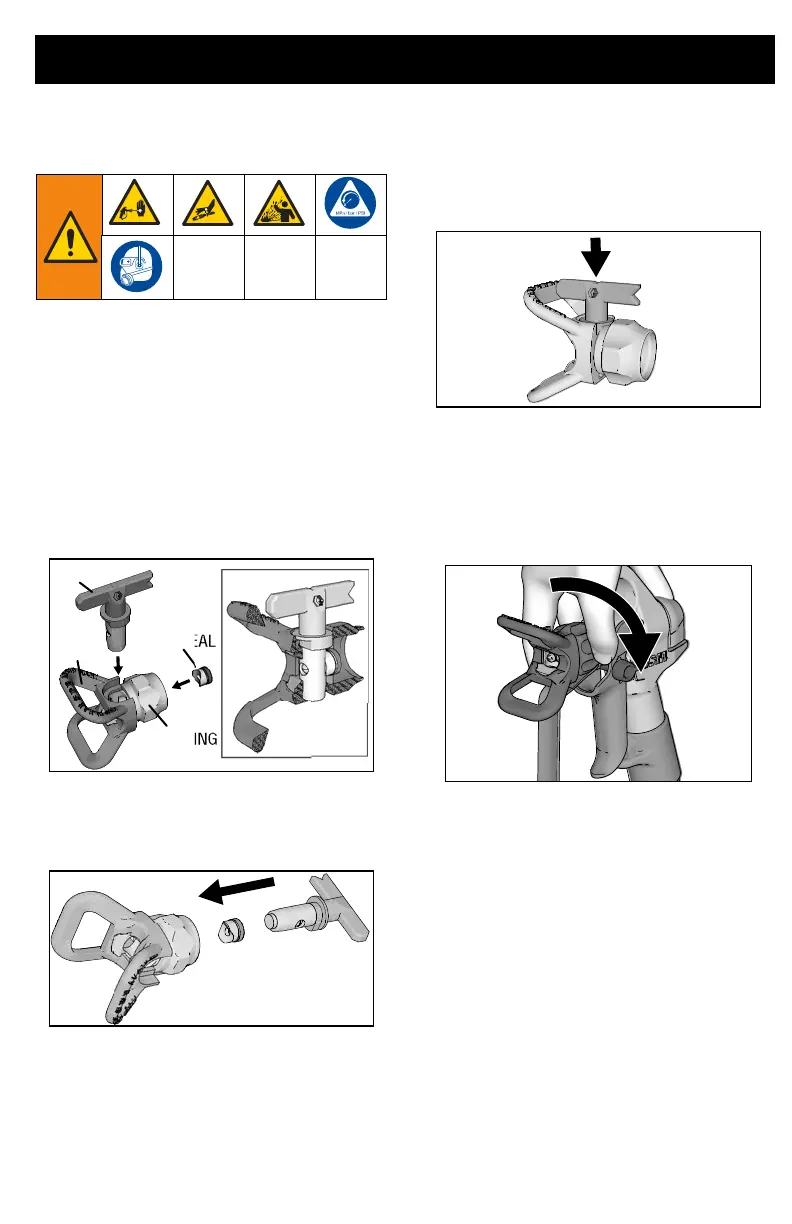

Spray Tip Installation
To prevent spray tip leaks make certain spray
tip and tip guard are installed properly.
1. Perform Pressure Relief Procedure,
page 12.
2. Engage trigger lock.
3. Verify spray tip and tip guard parts are
assembled in the order shown.
a. Use spray tip to align gasket and
seal in the tip guard.
b. Spray tip must be pushed all the
way into the tip guard. Turn spray tip
to push down.
c. Turn the arrow shaped handle on
the spray tip forward to the spray
position.
4. Screw spray tip assembly onto the gun
and tighten.
TIP
GUARD
RETAINING
NUT
RUBBER
GASKET/
METAL SEAL
SPRAY
TIP
t
i
2714
0a
t
i
2714
3a
t
i
2714
5a
ti25828a
