Graco D Series User Manual

Know Your Sprayer
8 3A3234E

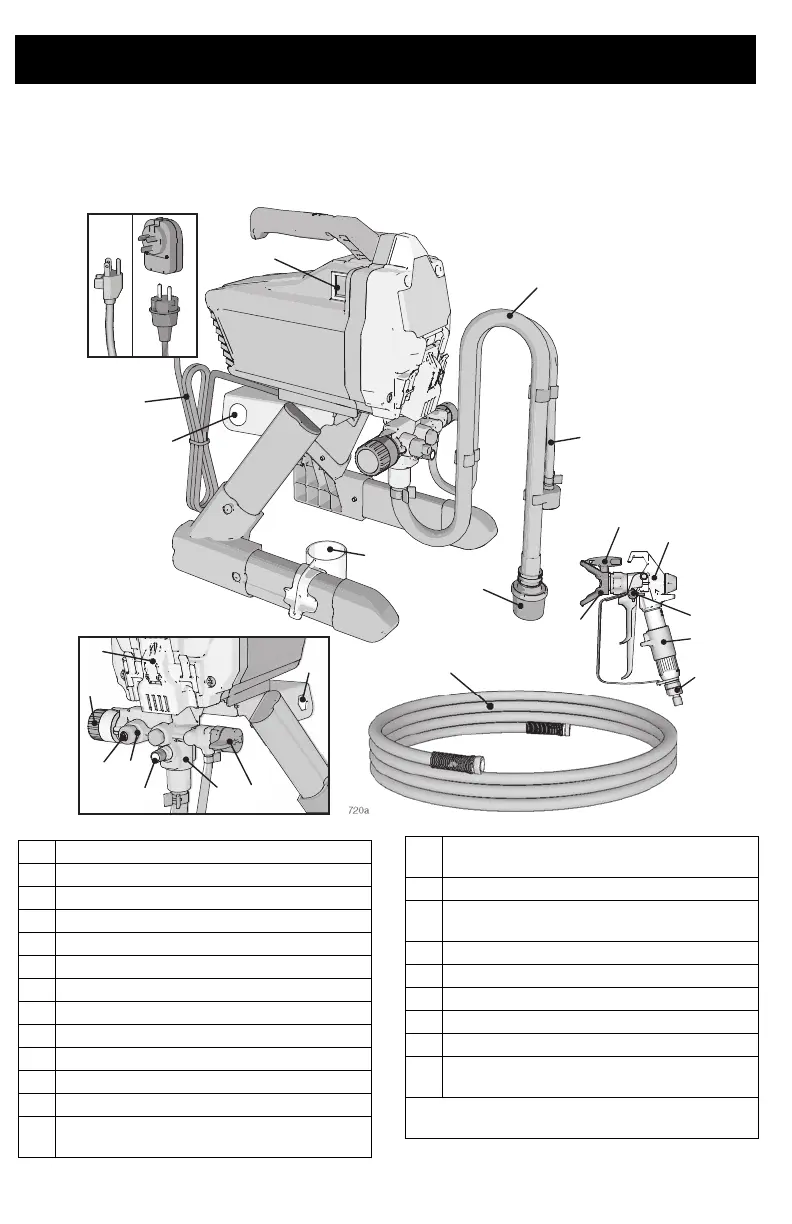

Know Your Sprayer
Stand Models (SP380/S1900)
ti27
7
C
V
Z
X
N
R
P
D
E
F
B
Q
A
T
U
U
W
G
H
J
K
M
L
A PushPrime™ Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
L Gun Fluid Inlet Fitting
M Gun Fluid Filter (inside handle)
N ProXChange™ Pump (behind Easy
Access Door)
P Pump Fluid Outlet Fitting (airless hose
connection)
Q Airless Hose
R InstaClean™ Fluid Filter (inside fluid
outlet)
T Inlet Strainer
U Power Cord
V Easy Access Door
W Suction Tube Drip Cup
X/Z Pump & Inlet Valve Removal Tool
Model/Serial Tag (Not shown, located
on bottom of unit.)
See Quick Reference, page 24 for more
information.
