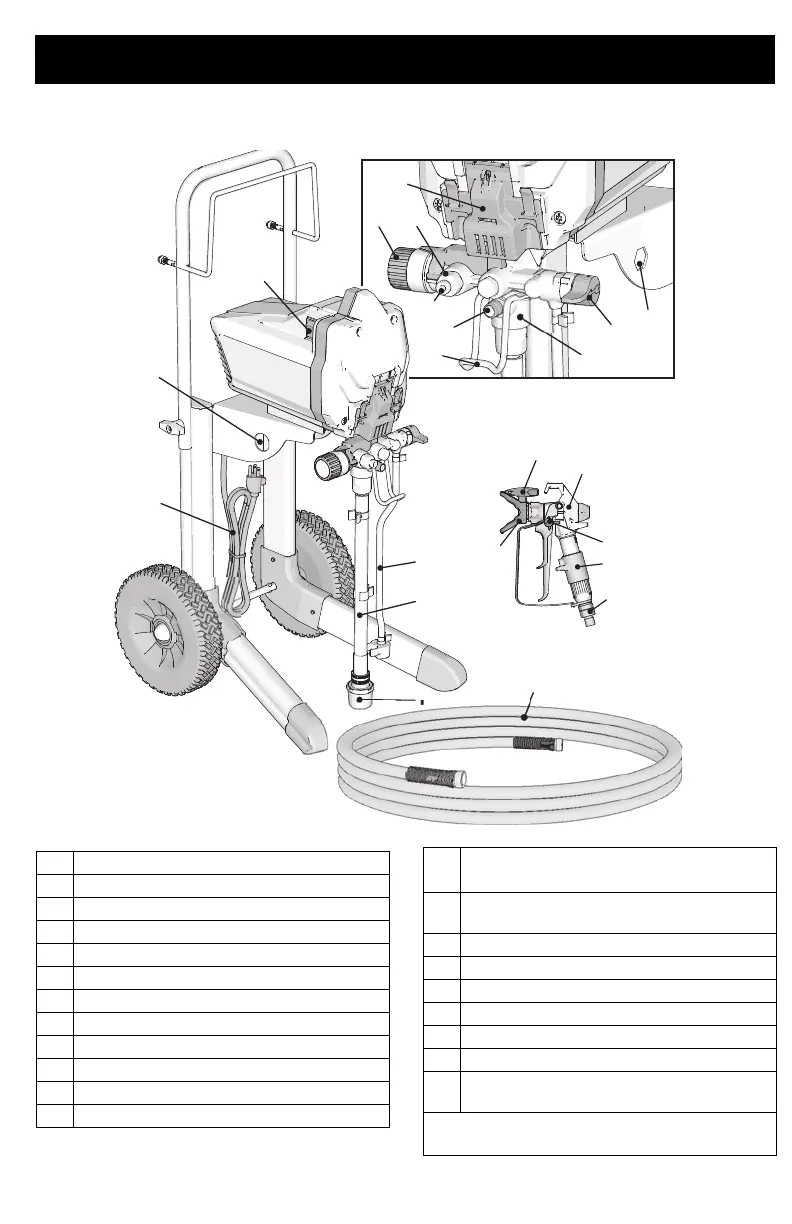

Know Your Sprayer
3A3234E 9
Hi-Boy Cart Models (SP340/3400)
D
C
F
E
T
V
S
R
P
B
N
X
U
Z
ti27724a
Q
A
G
H
J
K
M
L
A PushPrime™ Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
L Gun Fluid Inlet Fitting
M Gun Fluid Filter (inside handle)
N ProXChange™ Pump (behind Easy
Access Door)
P Pump Fluid Outlet Fitting (airless hose
connection)
Q Airless Hose
S Pail Hanger
T Inlet Strainer
U Power Cord
V Easy Access Door
X/Z Pump & Inlet Valve Removal Tool
Model/Serial Tag (Not shown, located
on bottom of unit.)
See Quick Reference, page 24 for more
information.
