Graco field lazer s100 Repair

Parts - Pump 246426, 17M873
10 3A5053B

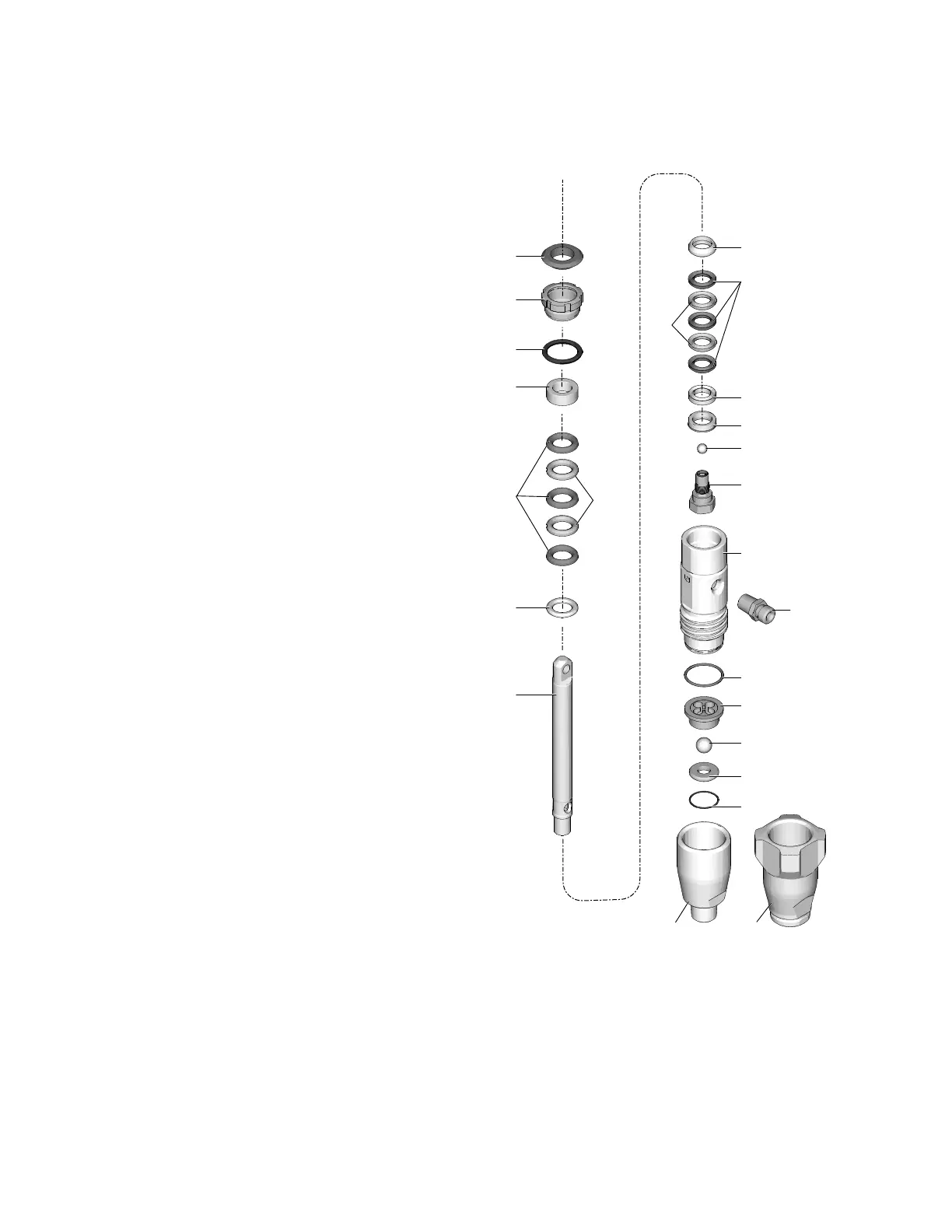

Parts - Pump 246426, 17M873
Ref. Part Description Qty.
201* 180656 SEAL, throat 1
202 193047 NUT, packing 1
203* 192710 V-PACKING, throat, V-Max,
UHMWPE, blue
3
204* 176754 GLAND, male, throat 1
205 24X749 CYLINDER, pump 1
206* 105444 BALL, set,0.3125 in. 1
207* 17V093 PACKING, o-ring 1
208* 192712 V-PACKING, piston, V-Max,
UHMWPE, blue
3
209* 180073 GLAND, female, piston 1
210 243181 VALVE, piston 1
212† 15A968 SEAT, footvalve, carbide 1
213 VALVE, intake (foot)
213a 15B874 Series A 1
213b 15B611 Series B 1
214*† 105445 BALL, set, 0.5000 in. 1
215† 15C011 GUIDE, ball 1
217* 15G234 WIPER, piston 1
218* 176749 V-PACKING, leather, throat 2
219* 195129 GLAND, male, piston 1
222 243174 ROD, piston 1
223* 176755 V-PACKING, leather, throat 2
224* 176757 GLAND, female, throat 1
225 162453 NIPPLE, 1/4 npsm x 1/4 npt 1
227*† 15B112 PACKING, o-ring (0.941 in. OD) 1
228 160516 PACKING, o-ring 1
* – These parts included in pump repair Kit 244194
†– These parts included in inlet valve seat Kit 246429
201
202
228
224
203
223
204
222
213a 213b
227
225
212
214
215
207
205
210
206
217
209
218
208
219
ti31060a
