Service
3A5053B 9
11. Torque packing nut (202) to 75 ± 5 in.-lb (8.5 ± .5
N•m).
12. Remove throat seal (201) when pump packings
begin to leak after extended use. Then tighten pack-
ing nut down until leakage stops or lessens. This
allows approximately 100 gallons of additional oper-
ation before a repacking is required.

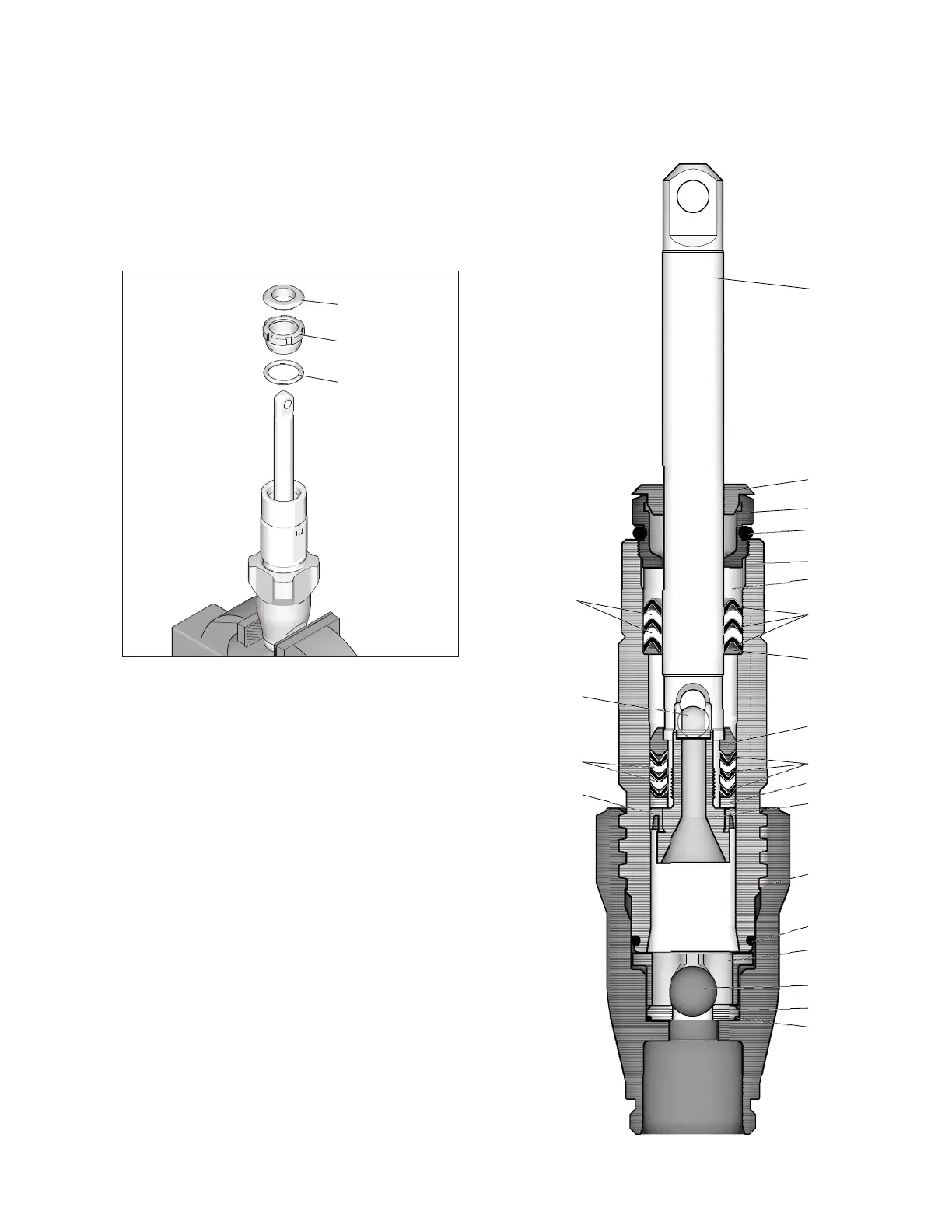

Cross-Section Reference
ti31047a
201
202
228
ti31061a
222
201
202
228
205
203
204
206
219
208
209
214
213
207
215
214
212
227
218
217
228
223
