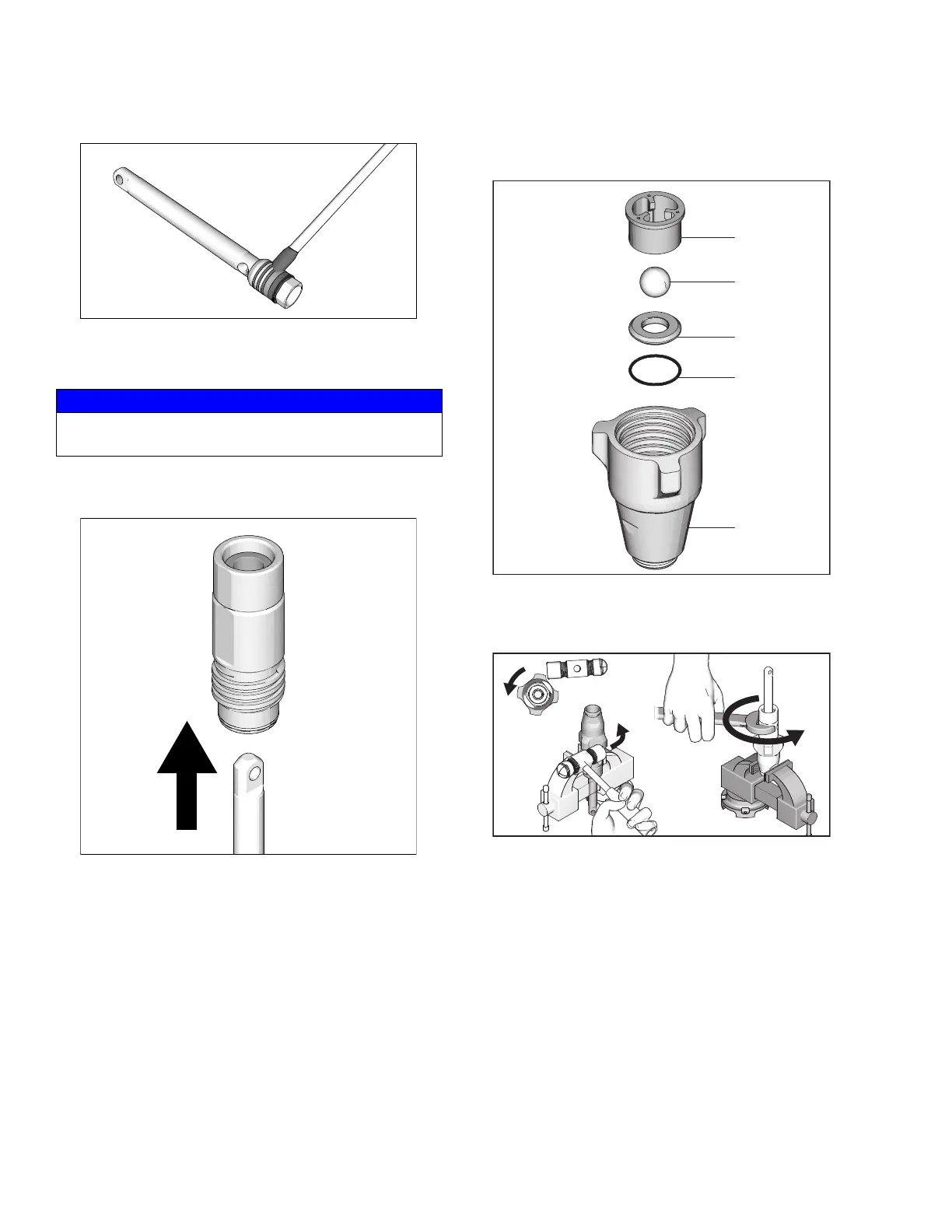

6. Grease piston packings.
7. Grease top inch or two of piston rod that will go
through the cylinder throat packings.
8. Slide piston rod assembly into bottom of cylinder.
Replace o-ring (207) if desired.
9. Reassemble intake valve with new o-ring (227),
seat (212) and ball (214). Seat may be flipped over
and used on other side. Clean seat thoroughly.
10. Install intake valve on cylinder. If a wrench is used
torque to 60 ± 5 ft-lb (81 ± 7 N•m).
NOTICE
Do not slide piston assembly into top of cylinder as this
may damage piston packing.
