Graco field lazer s100 Repair

Service
3A5053B 5

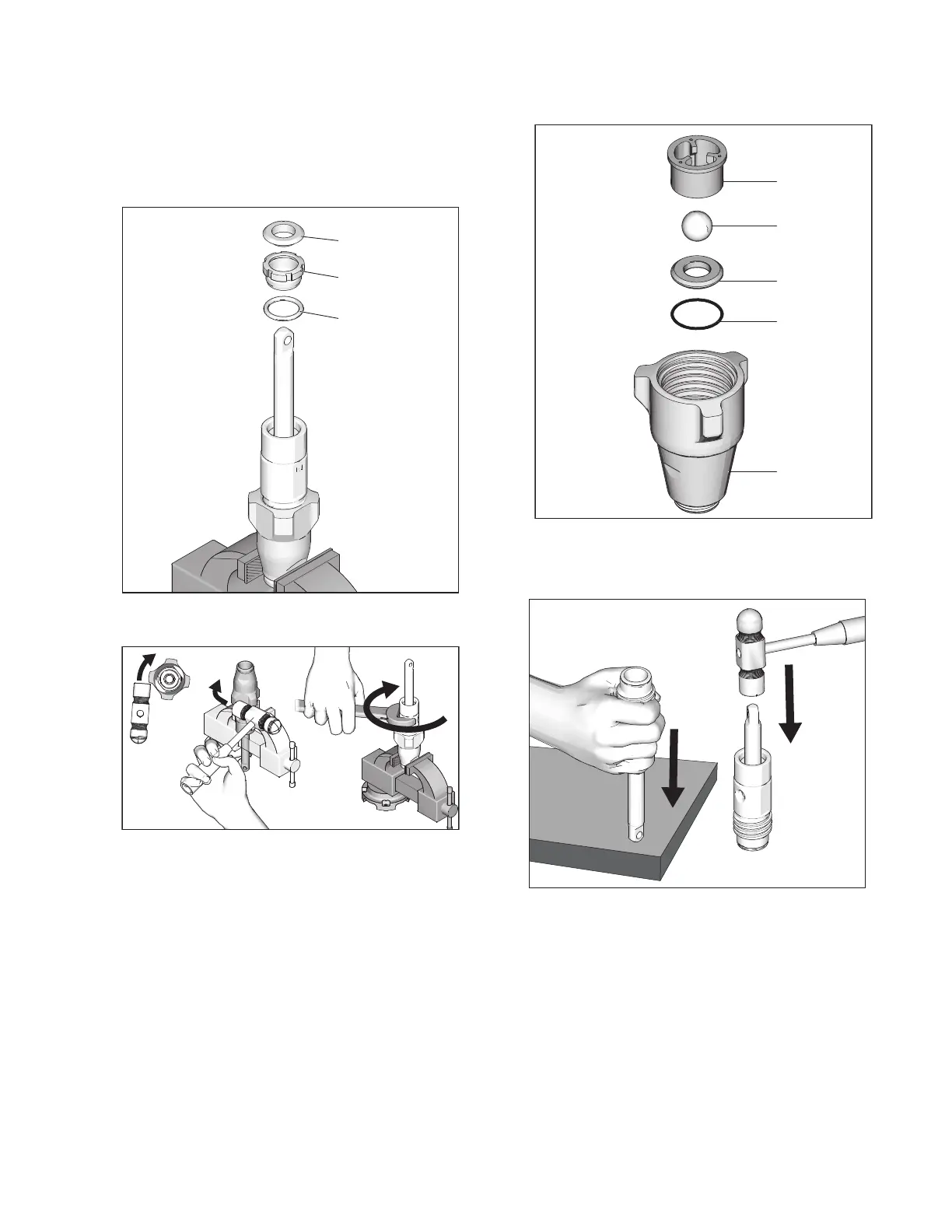

Disassemble
1. Remove seal (201), packing nut (202) and o-ring
(228).
2. Unscrew intake valve from cylinder.
3. Disassemble intake valve. Clean and inspect o-ring
(227). NOTE: A pick may be required to remove
o-ring.
4. Tap piston rod out of cylinder with a hammer or flip
over and tap piston rod out against a bench.
ti31047a
201
202
228
ti31048a
215
214
212
213
227
ti23115c
ti31049a
