Service
3A5053B 7

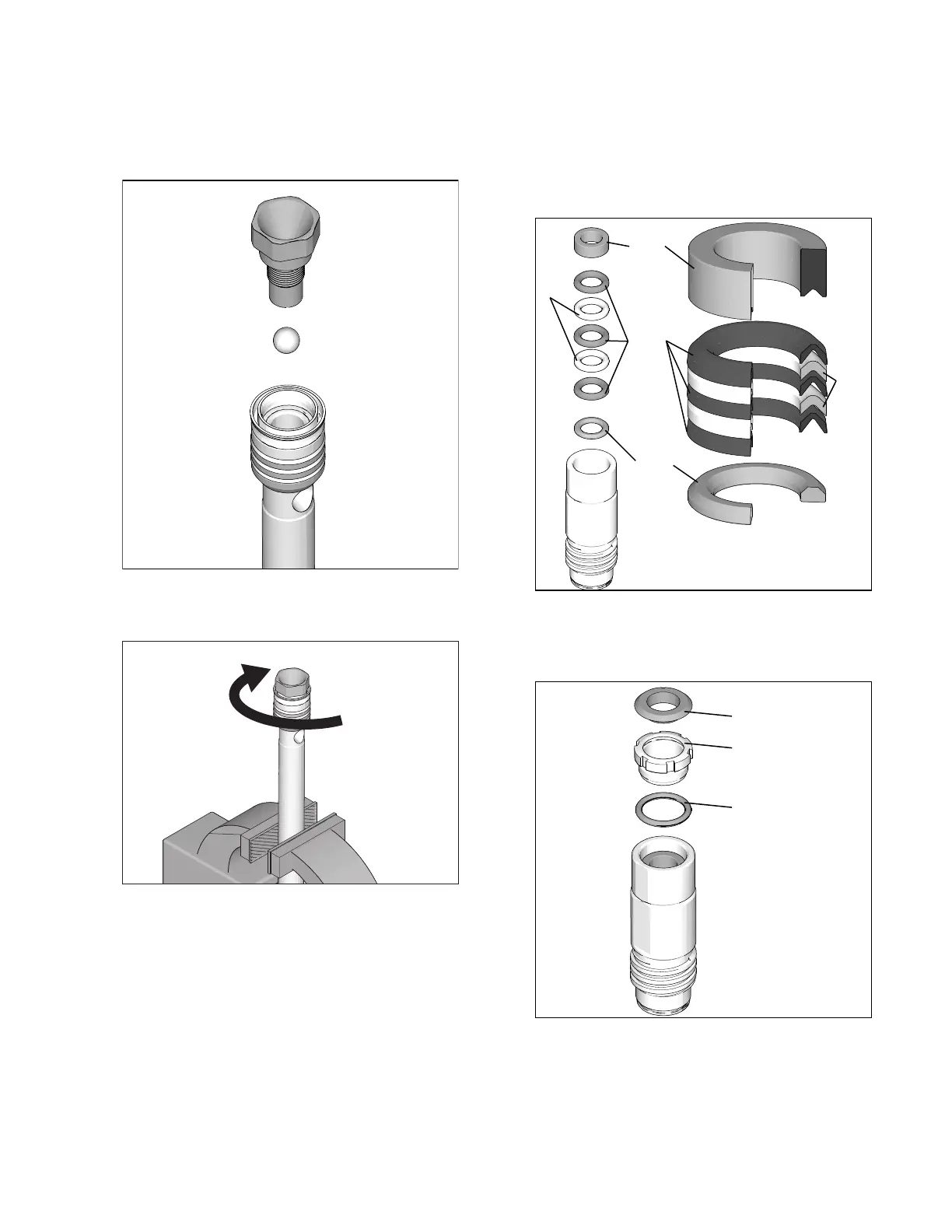

2. Install ball (206) in piston rod. If threadlocker is
applied to piston valve threads, make sure that none
gets on ball.
3. Tighten piston valve to piston rod. torque piston
valve to 27 ± 3 ft-lb. (37 ± 4.1 N•m).
4. Soak all leather packings in SAE 30W oil for one
hour minimum prior to assembly. Place male gland
(204) in cylinder. Alternately stack UHMWPE (203)
and leather packings (223) (note orientation). Place
female gland (224) on top of cylinder seat packings.
5. O-ring replaces clip ring on older models. Install
o-ring (228) onto packing nut. Loosely install pack-
ing nut into cylinder.
