Service and Repair
16 309869C

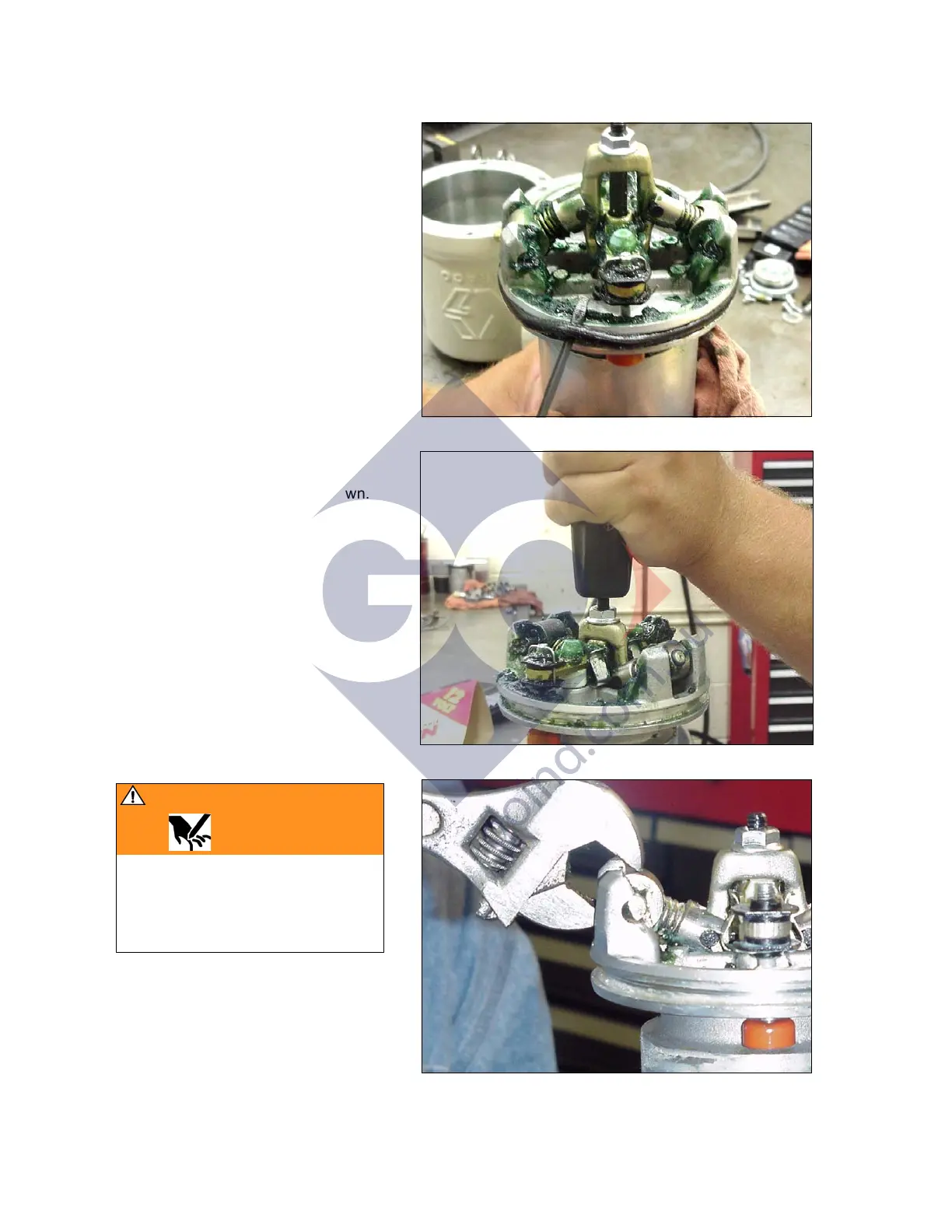

27. Remove the o-ring packing (18*)
from the air motor piston (34).
28. Use a screwdriver handle to push
down the trip rod yoke (23) to
snap the toggle arms (38) down.
29. Place an adjustable wrench on
top of the toggle arms (38) and
push down to compress the
spring and release from the piston
lug.
WARNING
To reduce the risk of pinching or
amputating your fingers, always keep
fingers clear of the toggle assem-
blies. Read warnings beginning on
page 3.
