Graco Fire-Ball 246775 - 300 (5:1) Technical Data; 300 (5:1) Performance Chart

300 (5:1) Technical Data
309869C 45
300 (5:1) Technical Data
Fluid to air ratio .........................................................5:1
Cycles/gallon (cycles/liter) ..............................28.4 (8.6)
Fluid flow @80 cpm (gpm/lpm) .........................2.8 (9.3)
Pumping distance guideline........up to 500 ft. (152.5 m)
Maximum fluid pressure.........900 psi (6.2 MPa, 62 bar)
Air motor effective diameter ................ 3.0 in. (76.2 mm)
Air operating range ....40-180 psi (0.28-1.2 MPa, 2.8-12
bar)
Approx. air consumption and fluid flow @100 psi air and
80 cpm .27.0 scfm @3.0 gpm (.765 m
3
/min @11.5 lpm)
Dry suction lift (feet of water)......................................26
Wetted materials ............................................................
steel, polyurethane, aluminum, buna-N
Air inlet port size..........................................3/8 in. npt(f)
Fluid inlet port size ......................................1.5 in. npt(f)
Fluid outlet port size ....................................1/2 in. npt(f)
Sound pressure (measured 1 meter from unit) .. 77.8dB
Sound pressure (ISO 9614-2) ............................ 85.6dB

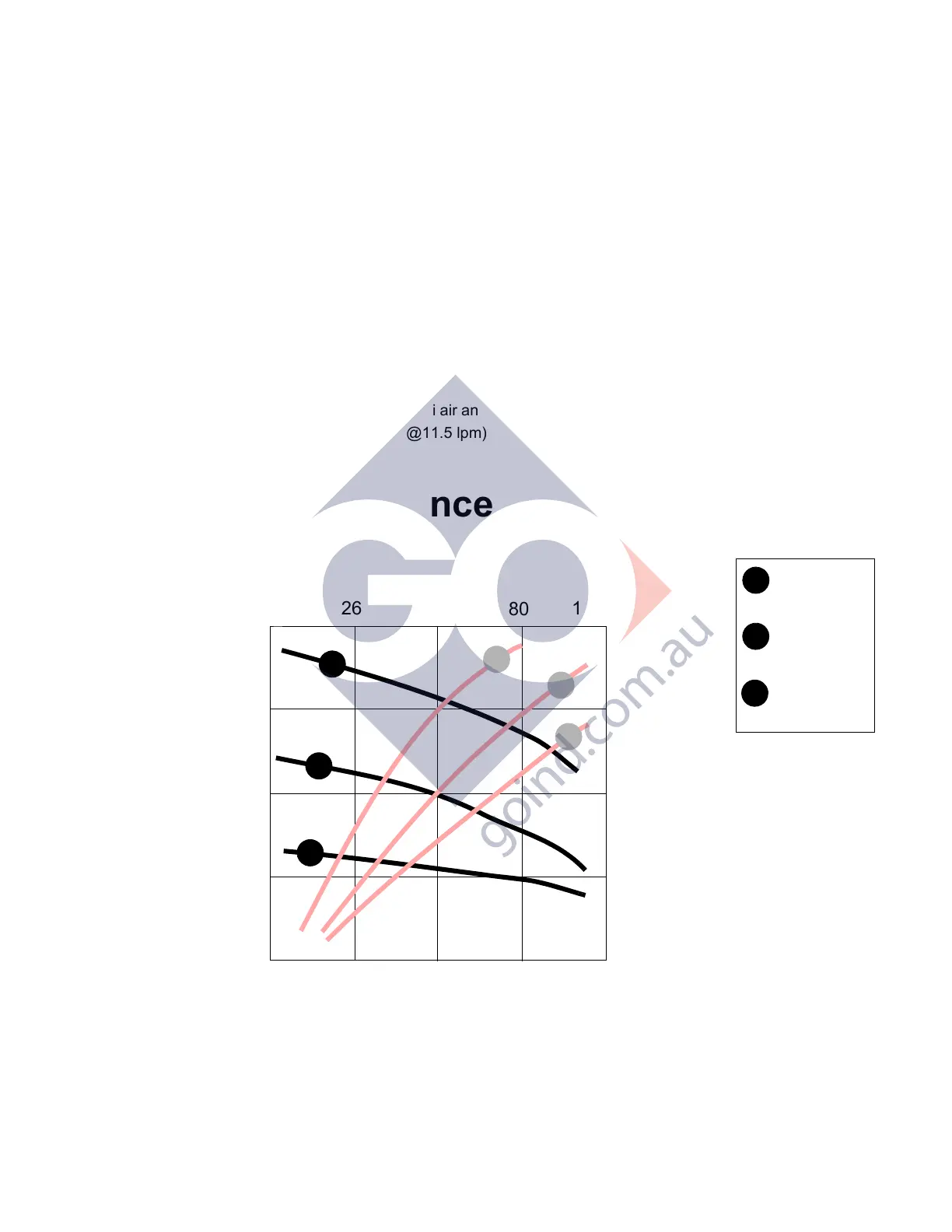

300 (5:1) Performance Chart
A
B
C
= 100 psi
(6.9 bar)
=
70 psi
(4.8 bar)
=
40 psi
(2.8 bar)
Inlet Air Pressures:
A
B
C
A
B
C
cycles/min
A
I
R
C
O
N
S
U
M
P
TI
O
N
F
L
UI
D
OUT
L
ET
PRESSURE
TEST FLUID: No 10 Weight Oil
psi
(bar)
450
(31.4
300
(21)
150
(10.4)
75
(5.2)
0
gpm
(lpm)
26 53
80
107
10
(0.3)
8
(0.23)
6
(0.17)
4
(0.12)
2
(0.08)
scfm
(m3 / min)
(Data measured with 10 weight oil @70°F (21°C)
