Before you start
309869C 5
Before you start
If you are unfamiliar with the Fire-Ball pump there are several resources that can be reviewed prior to rebuilding this
pump. They include the training guides which provide theory and understanding of how the Fire-Ball pumps work.
Refer to www.graco.com for additional information.
You must have the following tools and repair kit prior to rebuilding or repairing the Fire-Ball pump. Order repair kits
and special tools from Graco Inc.
• Utility Knife • 1 Gallon Bucket
• Straight Blade Screwdriver or nut driver • Large Vise
• Crescent Wrench

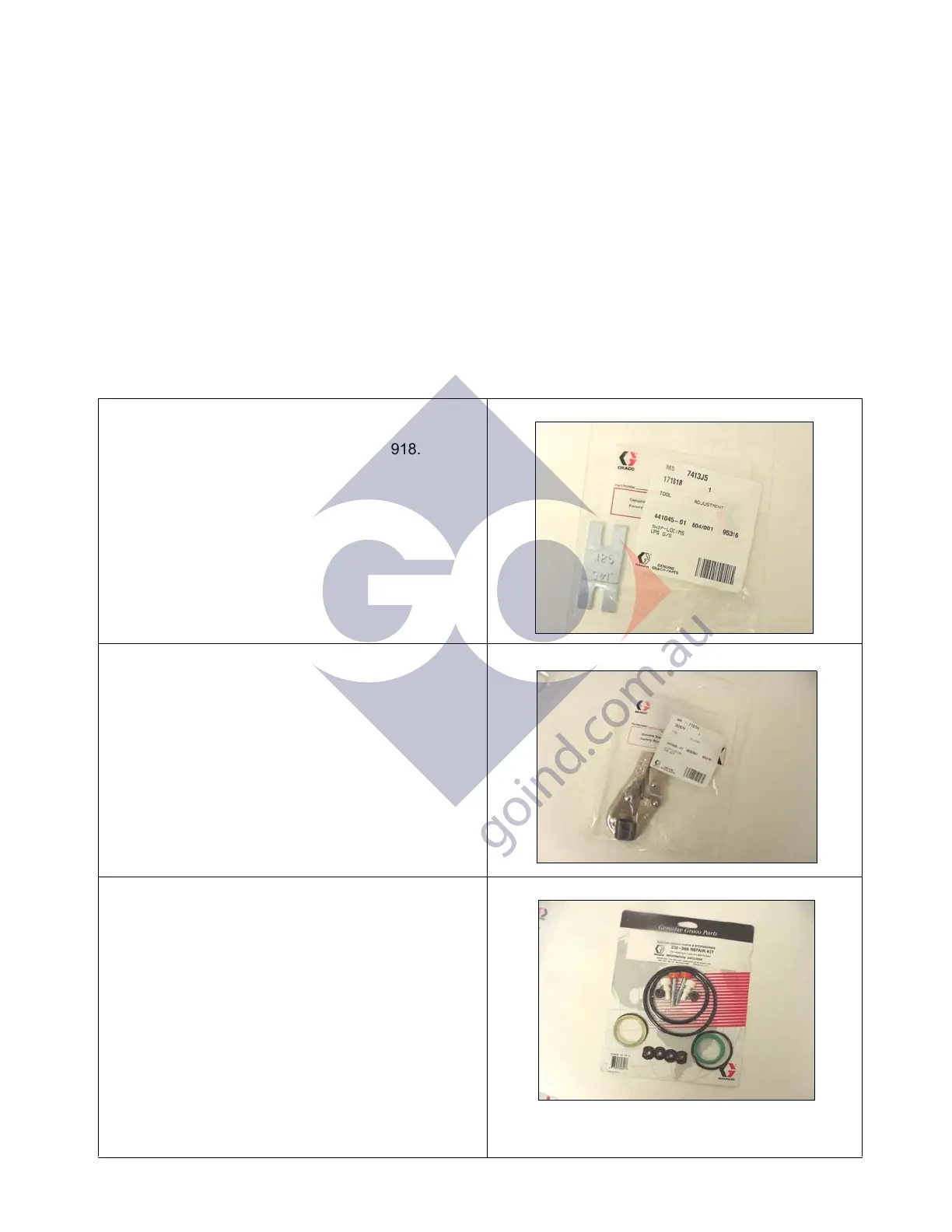

Model 225
Use adjustment tool, part# 15E796.
15E796 is also included in Repair Kit 246918.
Models 300 and 425
Use adjustment tool, part# 171818.
Model 225
Use pliers tool, part# 248198.
Models 300 and 425
Use pliers tool, part# 207579.
Repair Kits
Model 225 (3:1)
Repair Kit #246918 for both motor and lower repair.
Model 300 (5:1)
Repair Kit #238286 for both motor and lower repair.
Model 425 (3:1)
Repair Kit #207385 for air motor repair
Repair Kit #237602 for lower repair
Model 425 (6:1)
Repair Kit #207385 for air motor repair
Repair Kit #238225 for lower repair
Model 425 (10:1)
Repair Kit #238751 for both motor and lower repair.
