Graco Fire-Ball 246775 - Air Motor and Pump Lower

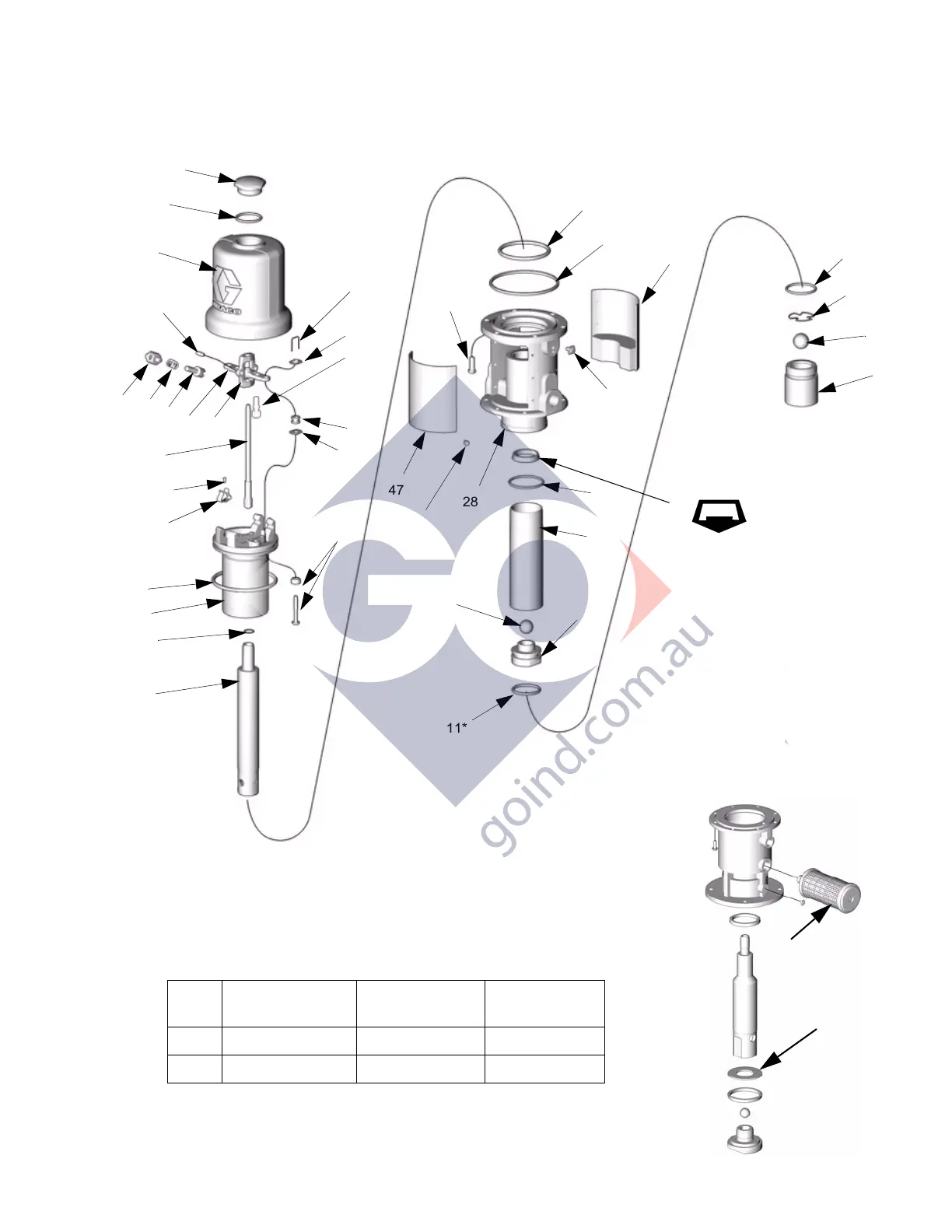

Air Motor and Pump Lower
38 309869C
Air Motor and Pump Lower
39
15
35
25*
24*
17*
24*
32*
41
29
34
18
26
10
40
23
38
20
37
36
13*
19
46
28a
9
47
7
28
16*
12*
6
43
11*
21*
27
31*
30
425 Pumps Only
A
B
The 425 pump series has an air exhaust muffler (A) instead of
muffler plates (46, 47) that Models 225 and 300 have. The 425
pump models also have a piston washer that Models 225 and
300 do not have. Order parts from the table below.
Ref
No.
425 Pump
237526 (3:1)
425 Pump
238108 (6:1)
425 Pump
205626 (10:1)
A 102656 102656 102656
B 189711 190924 191123
44
8
LIPS
42
