Graco Fire-Ball 246775 - 225 (3:1) Technical Data; 225 (3:1) Performance Chart

225 (3:1) Technical Data
44 309869C
225 (3:1) Technical Data
Fluid to air ratio .........................................................3:1
Cycles/gallon (cycles/liter) ............................ 43.5 (11.4)
Fluid flow @80 cpm (gpm/lpm) ....................... 1.84 (7.0)
Pumping distance guideline .......... up to 250 ft. (76.2 m)
Maximum fluid pressure.........540 psi (3.7 MPa, 37 bar)
Air motor effective diameter .............. 2.25 in. (57.2 mm)
Air operating range ....40-180 psi (0.28-1.2 MPa, 2.8-12
bar)
Approx. air consumption and fluid flow @100 psi air and
80 cpm .....8.5 scfm @2.1 gpm (.241 m
3
/min @7.9 lpm)
Dry suction lift (feet of water)......................................23
Wetted materials ........... steel, polyurethane, aluminum,
buna-N, Rulon
®
Air inlet port size..........................................3/8 in. npt(f)
Fluid inlet port size ......................................1.5 in. npt(f)
Fluid outlet port size ....................................1/2 in. npt(f)
Sound pressure (measured 1 meter from unit) .. 77.8dB
Sound pressure (ISO 9614-2) ............................ 85.6dB

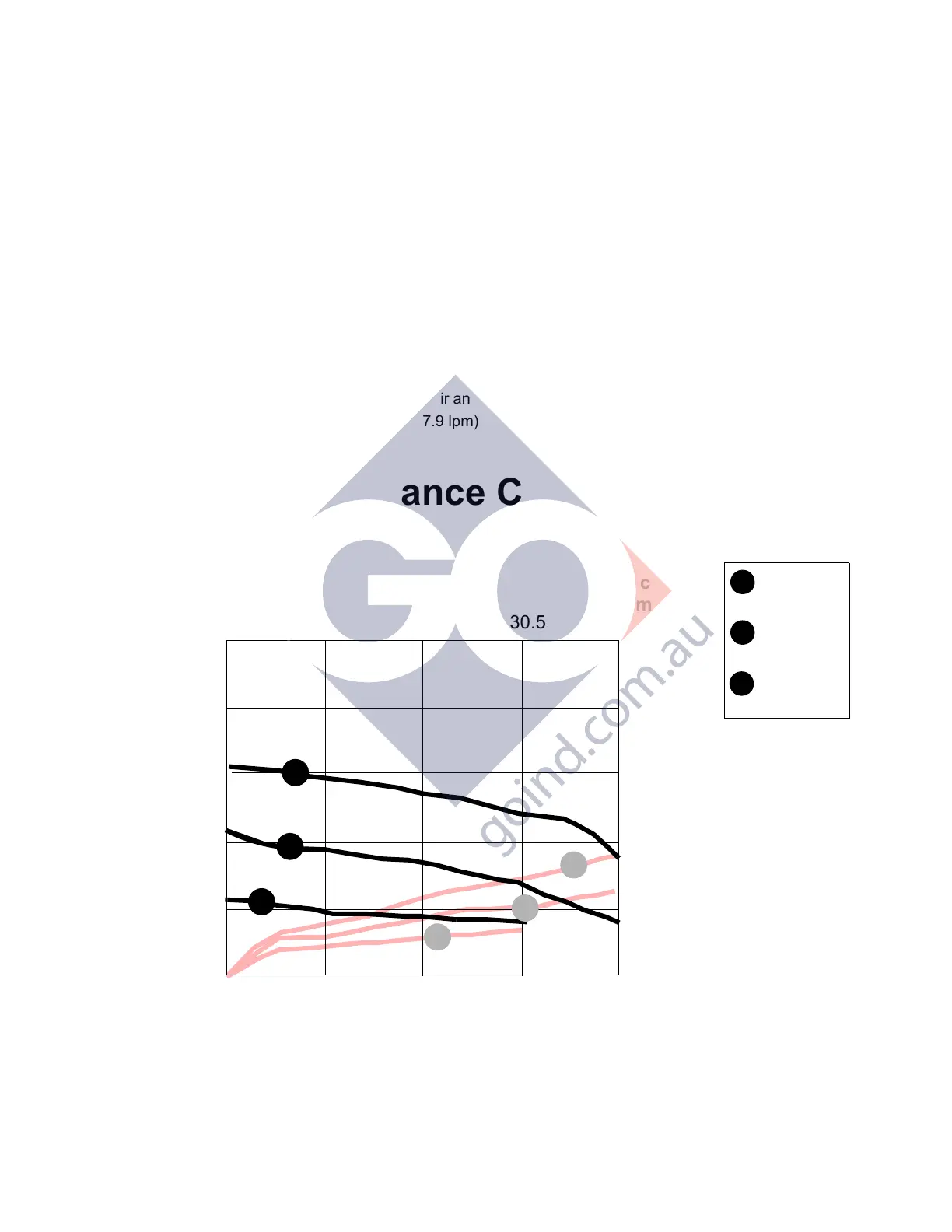

225 (3:1) Performance Chart
A
B
C
A
B
C
A
I
R
C
O
N
S
U
M
P
T
I
O
N
F
L
UI
D
O
UT
L
ET
PRESSURE
TEST FLUID: No 10 Weight Oil
psi
(bar)
500
(31.4)
400
(21)
300
(10.4)
200
(5.2)
0
gpm
(lpm)
0
1
3
4
40
(0.3)
24
(0.23)
16
(0.17)
8
(0.12)
0
(0.08)
scfm
(m3 / min)
100
(5.2)
2
43.5
32
(0.23)
A
B
C
= 100 psi
(6.9 bar)
=
70 psi
(4.8 bar)
= 40 psi
(2.8 bar)
Inlet Air Pressures:
Flow Rate
cycles/min
87
130.5
174
(Data measured with 10 weight oil @70°F (21°C)
