Service and Repair
20 309869C

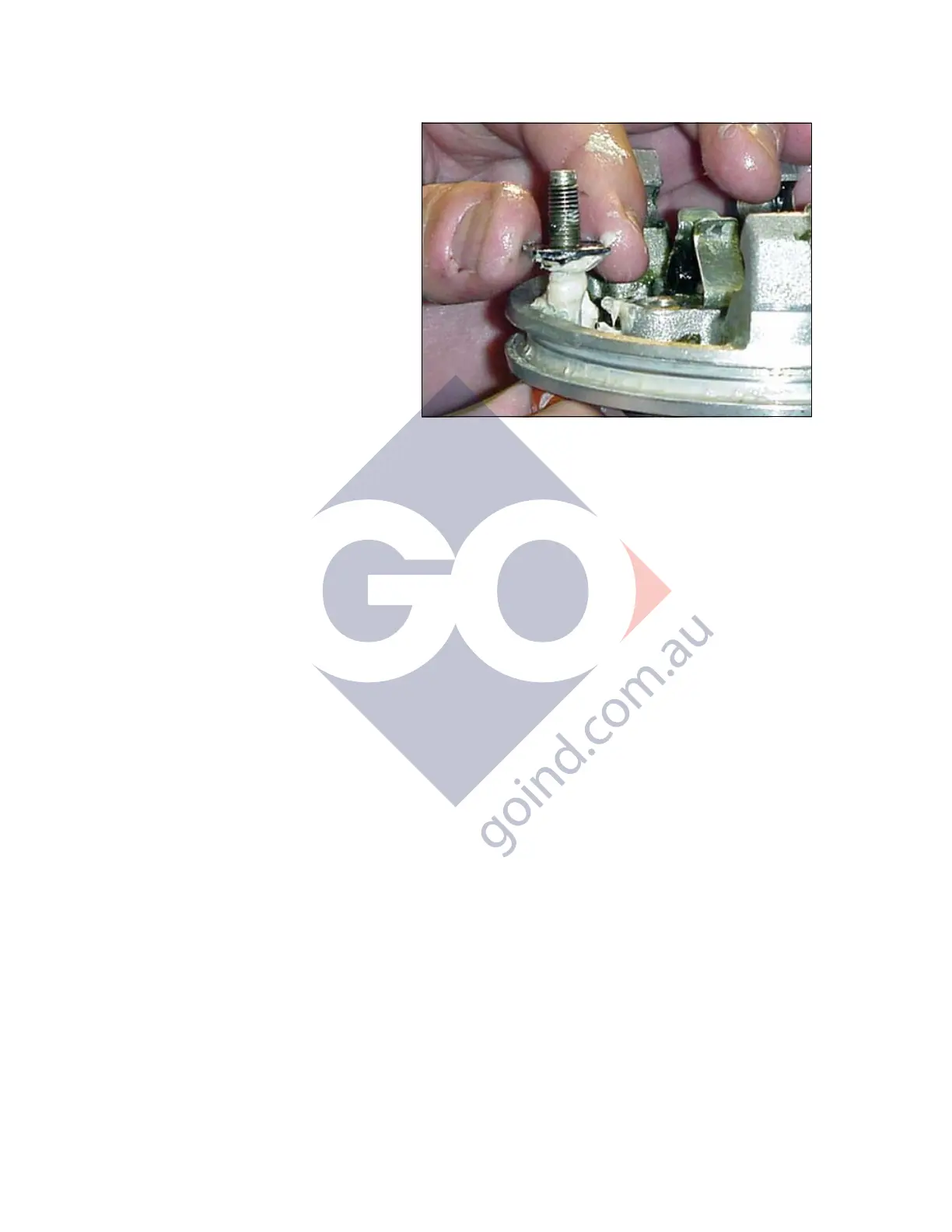

39. Unscrew and remove the bottom
valve nuts (24*) and the poppet
valve (32).
Disassembly is complete.
