Reassembly
30 309869C

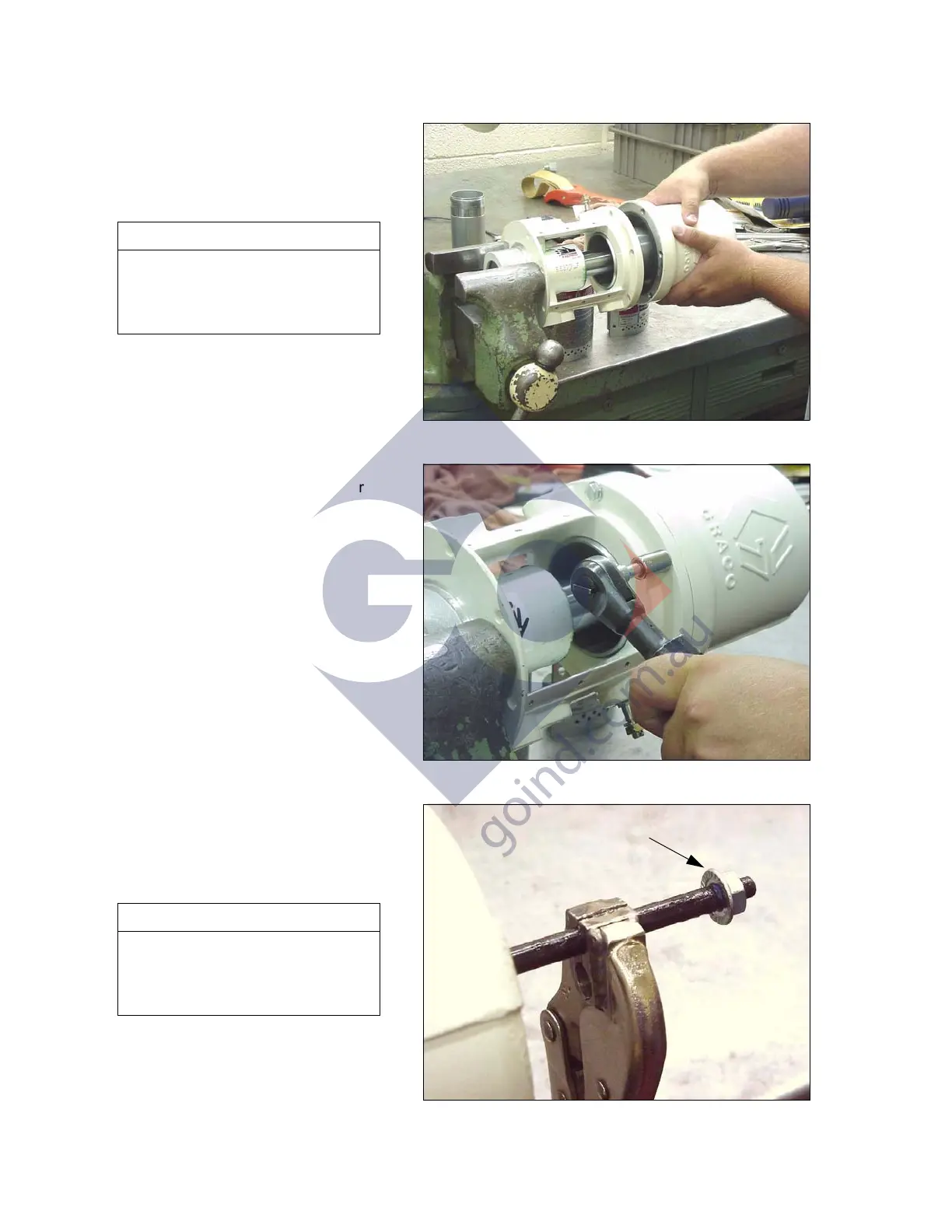

24. Carefully slide the air motor cylin-
der (35) straight onto the air motor
piston (24).
25. Replace the six button head
screws (9) holding the air motor
cylinder (35) to the air motor base
(28).
26. Remove the nut (A) on the trip rod
(40) and grip the trip rod with pad-
ded pliers (see page 5).
CAUTION
To avoid damaging the air motor cyl-
inder wall, slide the cylinder straight
onto the piston. Never tilt the cylinder
while you are replacing it.
CAUTION
Do not damage the plated surface of
the trip rod (40). Damaging the sur-
face of the trip rod can result in
erratic motor operation.
A
