Reassembly
309869C 33

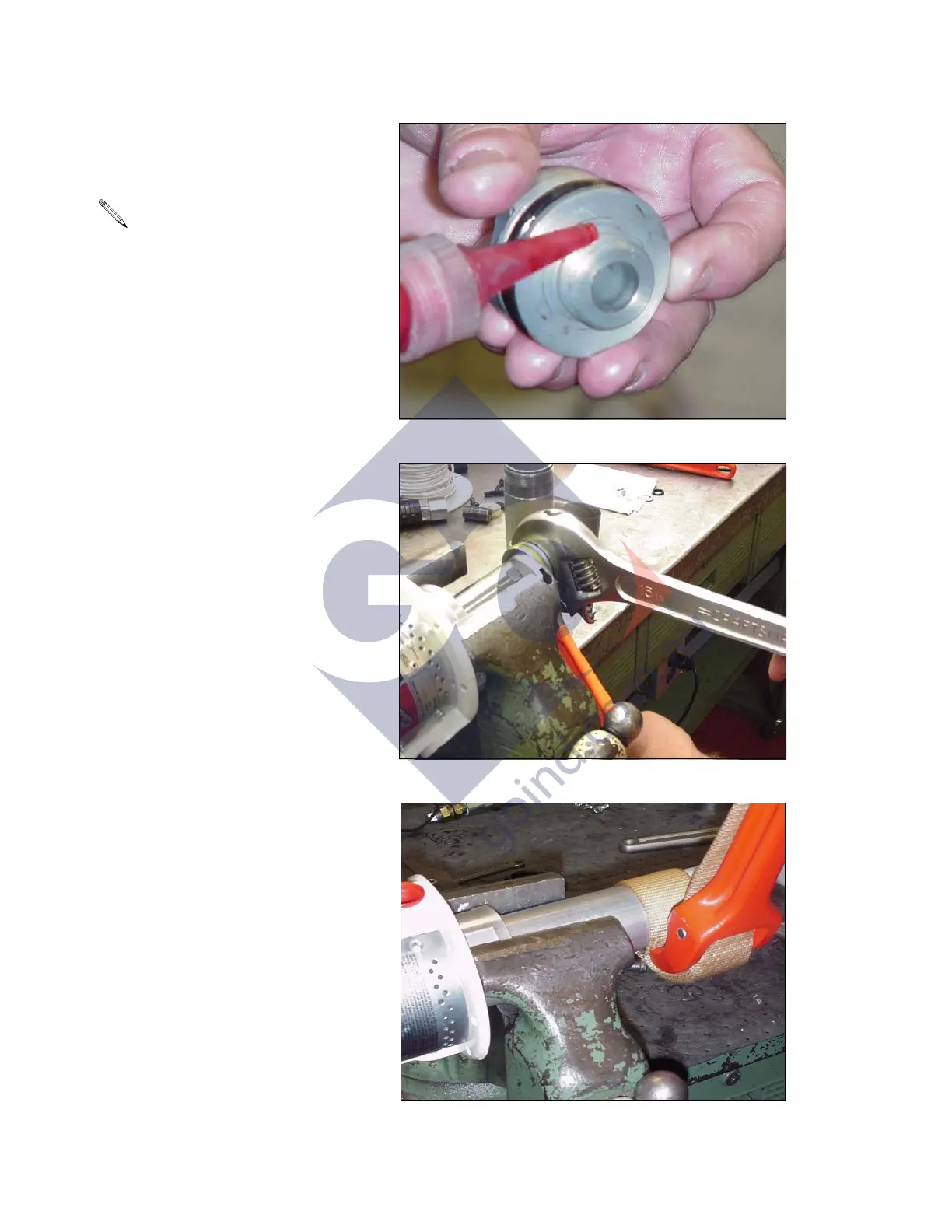

33. Clean the threads of the fluid pis-
ton (43) and apply Loctite to the
threads.
Loctite will not work on oily
threads. Be sure to clean threads.
34. Thread the fluid piston (43) onto
the displacement rod (29). Torque
to 40 to 60 ft-lb (54 to 81 N.m).
35. Replace the fluid cylinder (41)
with valve housing (42) back into
the air motor base (28). Torque to
40 to 60 ft-lb (54 to 81 N.m).
36. Using a strap wrench or chain
wrench, torque the valve housing
(42) to 40 to 60 ft-lb (54 to 81
N.m).
Assembly is complete.
