Service and Repair
309869C 9

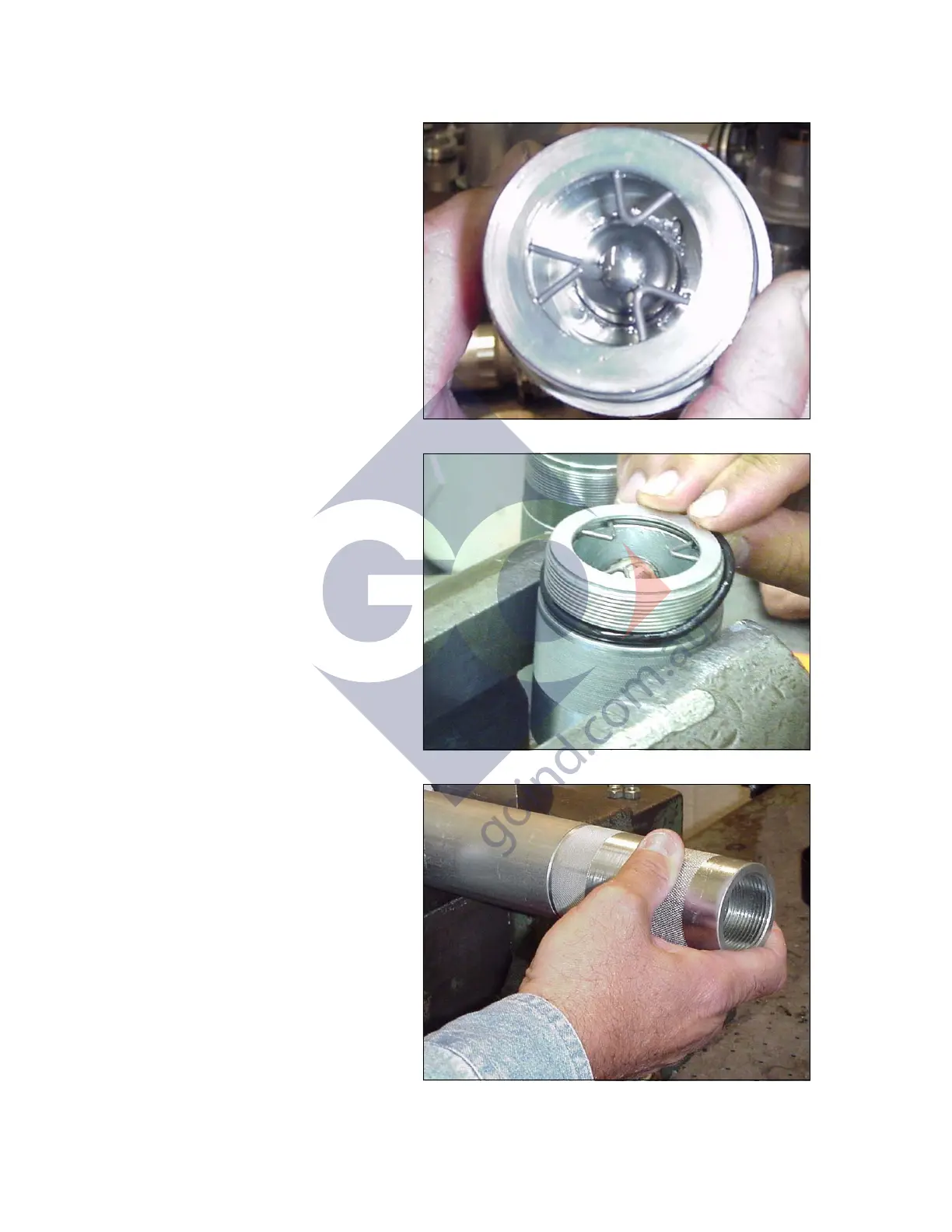

6. Remove ball retainer and inspect
the metallic ball (8), ball retainer
(44), and seat of valve housing
(42) for damage.
7. Remove and replace the o-ring
packing (21*).
8. Screw the valve housing (42) into
the fluid cylinder (41) and hand
tighten.
